1. Attach the aluminum x-mount to the fixed outer main shaft housing and tighten the set screw to secure the
mount to the motor.
2. Attached the aluminum x-mount and motor to the outside of the firewall using the two wood screws.
NOTE: Photo shows installation using a carbon fiber tube, with 7mm OD, 5mm ID (EFLM1963 available separately).
This is an option for mounting the motor. You can cut down the carbon fiber tube to meet your specific needs and
attach to your foam or wood airplane with glue.

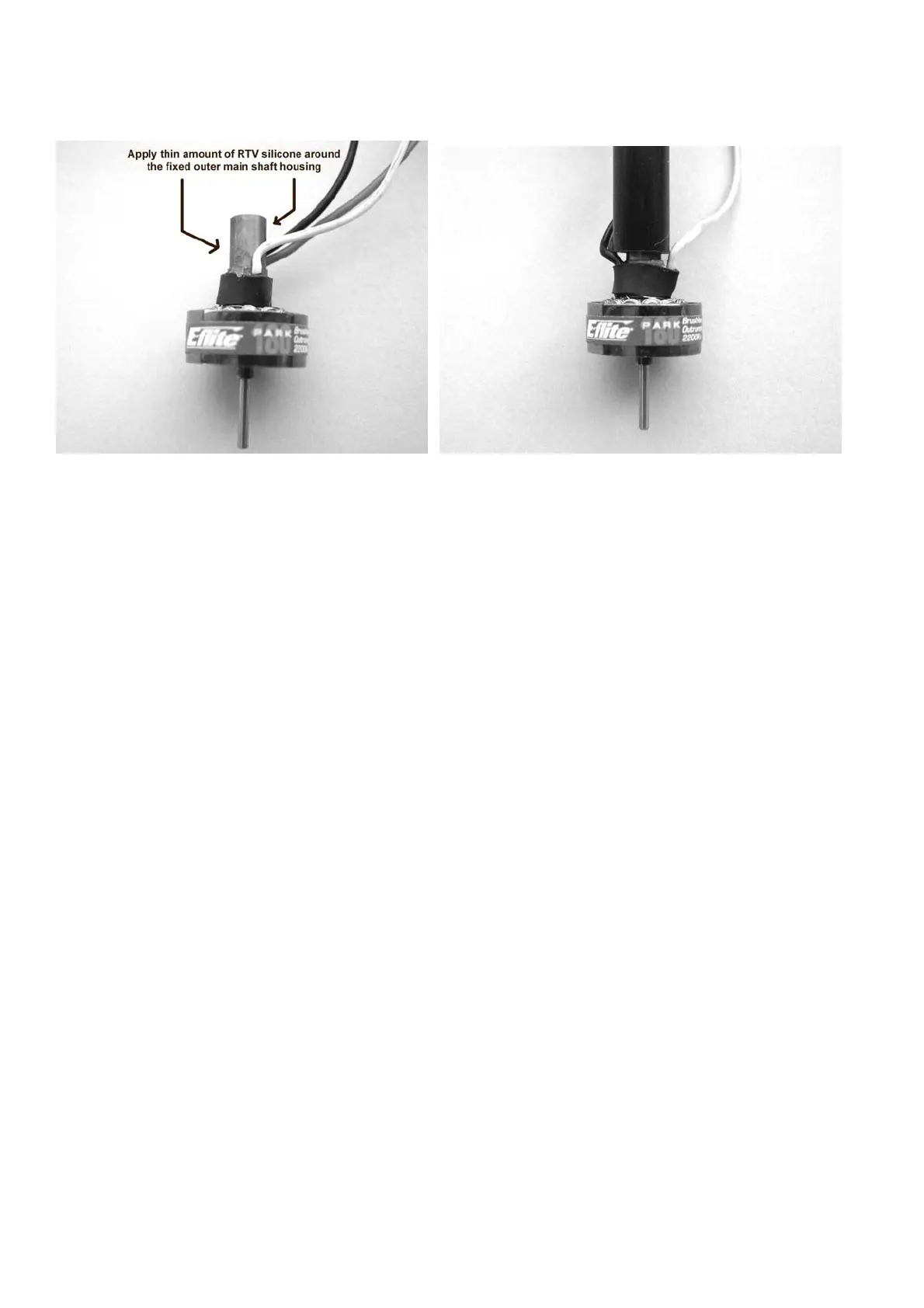

1. Add a very small thin amount of RTV silicone onto the surface of the fixed outer main shaft housing. The area
is marked on the photo above. It is important that you add your silicone glue to the surface of the outer main
shaft housing and not to the inside of the carbon fiber tube so that you do not get glue on the motor bearings.
2. Slide the motor into the carbon tube as shown. Let cure.
3. If the carbon tube is not already attached to your plane, please attach now and ensure you have proper
clearance for the propeller.
Motor Safety Precautions:
The Outrunner motor case is a rotating part so use extreme caution. Please read the warning information
included with your propellers for safety information related to the operation of motors with propellers. Failure to comply
with these warnings and/or improper use of propellers may result in serious injury.
Limited Warranty Period
Horizon Hobby, Inc. guarantees this product to be free from defects in both material and workmanship for a period of
1 year from the date of purchase.
Limited Warranty
(a) This warranty is limited to the original Purchaser ("Purchaser") and is not transferable. REPAIR OR
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER.
This warranty covers only those Products purchased from an authorized Horizon dealer. Third party transactions are
not covered by this warranty. Proof of purchase is required for warranty claims. Further, Horizon reserves the right to
change or modify this warranty without notice and disclaims all other warranties, express or implied.
(b) Limitations- HORIZON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCT.
THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL
SUITABLY MEET THE
REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
(c) Purchaser Remedy- Horizon's sole obligation hereunder shall be that Horizon will, at its option, (i) repair or (ii)
replace, any Product determined by Horizon to be defective. In the event of a defect, these are the Purchaser's
exclusive remedies. Horizon reserves the right to inspect any and all equipment involved in a warranty claim. Repair
or replacement decisions are at the sole discretion of Horizon. This warranty does not cover cosmetic damage or
damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of or to any part of
the Product. This warranty does not cover damage due to improper installation, operation, maintenance, or attempted
repair by anyone other than Horizon. Return of any goods by Purchaser must be approved in writing by Horizon
before shipment.
