E-Mu Proformance - Connection Instructions

Operation Manual
9
MIDI Controller
(MIDI Keyboard, Sequencer, Computer, etc.)
MIDI Out
Mixer
Amp
&
Speakers
Home
Stereo
Male RCA plug
to
Male Phone plug
To
Audio Outs
Additional
MIDI
Devices
MIDI In
LR
Use the Left
Audio Output
for Stereophones
OUT THRU
AUDIO OUTPUT
E-MU SYSTEMS, INC.
MIDI
IN LEFT/STEREO RIGHT/MONO
9V AC
POWER
AC
Adapter
Connect for
MIDI Overflow
ONLY!
OR
Connections
CONNECTION INSTRUCTIONS

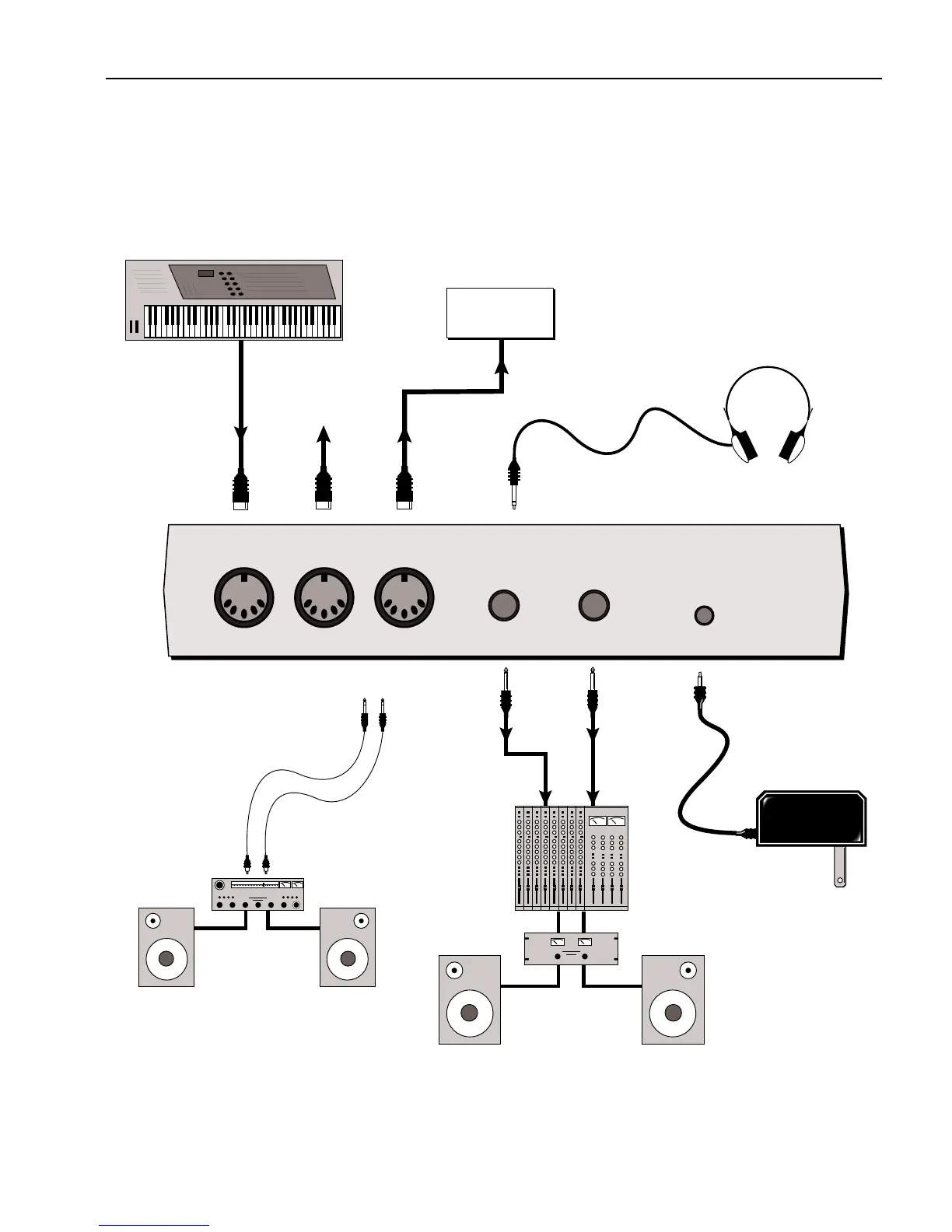

This diagram shows a typical equipment setup for the PROFORMANCE.
Stereo connection is HIGHLY recommended!
