E-Seek M260 - Appendix B: Pin Configuration; Serial Port Pin Outs

Product Reference Guide 12
Appendix B
No
Function
Direction
Remark
1
VUBS
IN
POWER from USB +5V
2
VCC
IN
+15V DC
3
D-
IN/OUT
USB DEVICE
4
D+
IN/OUT
USB DEVICE
5
GND
--
6
TXD
OUT
RXD on host
7
RXD
IN
TXD on host
8
RTS
OUT
CTS on host
9
CTS
IN
RTS on host
10
NC
--

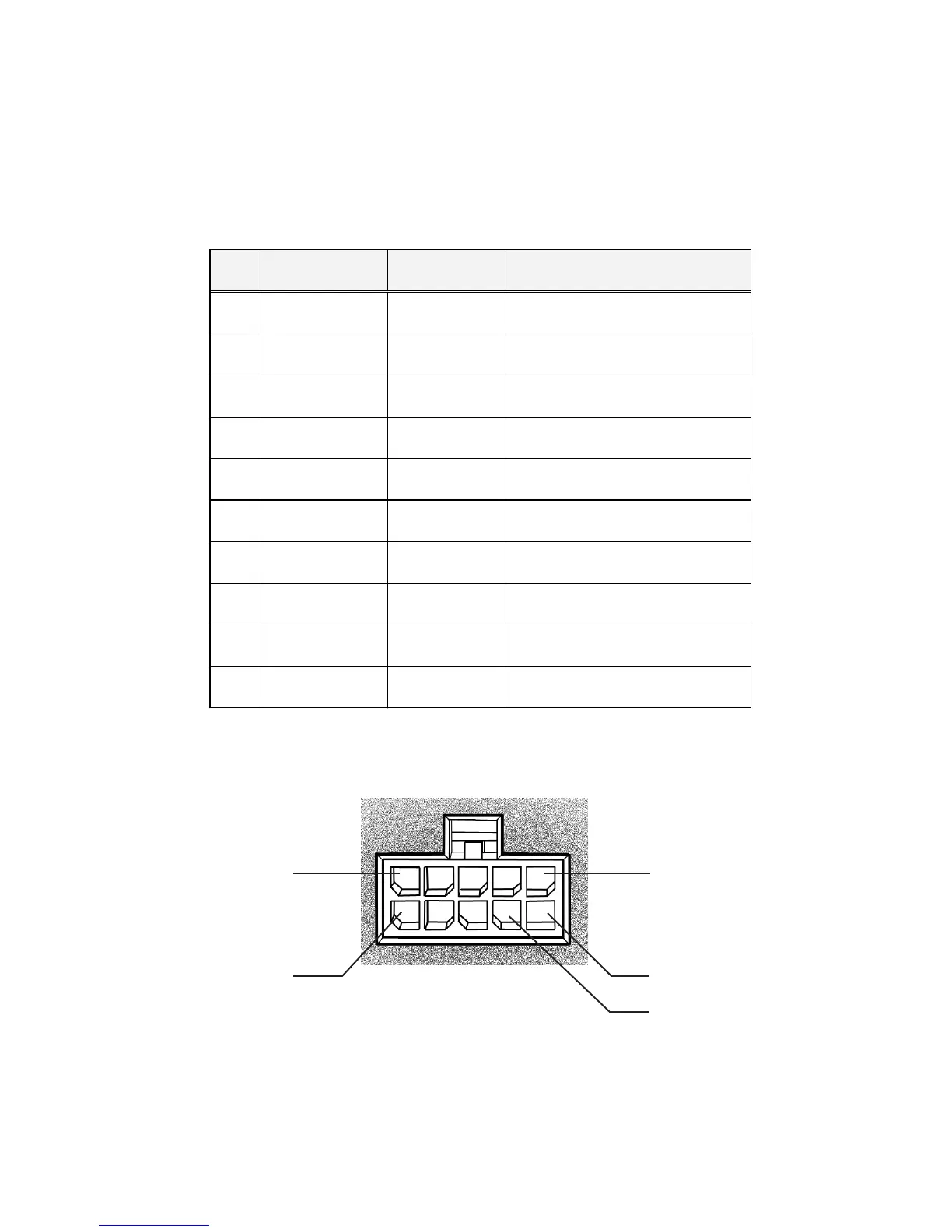

Serial Port Pin outs (RJ-45 & Kiosk)
Kiosk Connector Pin Position
Molex 0430451000
Mating Connector: Molex 0430251000
#10
#5
#6
#1
#2
