6
FOLDING/ UNFOLDING STAGES

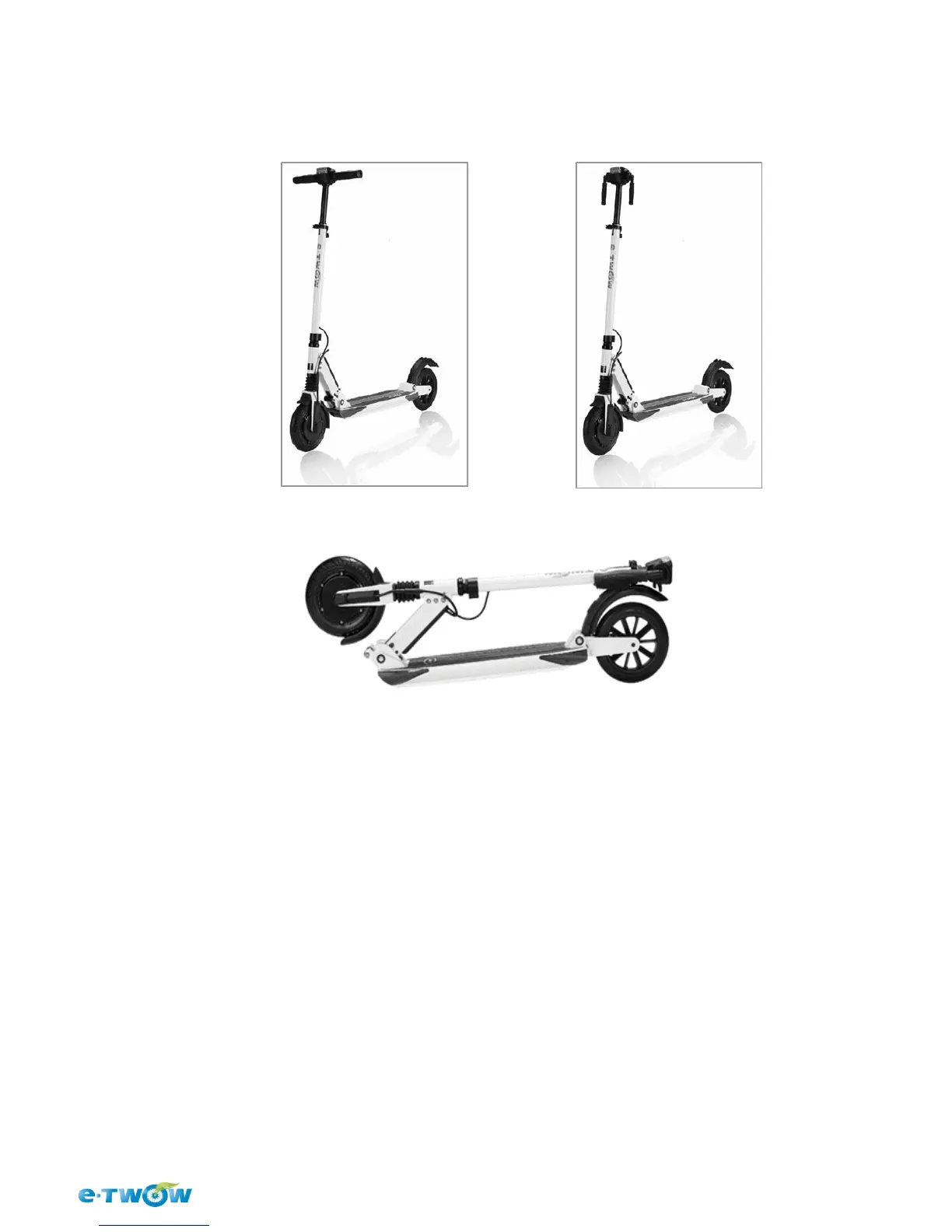

Folding stages
A – Unfolded B – Folded handlebars
C – Fully folded
Folding steps
1. Open the lock lever, as shown in figure (a) and (b).
2. Press the red button, figure (c), at the same time press down handlebars as shown in figure
(d) and push the lock lever to the lock position.
3. Hold the handlebar with both hands, push buttons shown in figure (e).
Pull out the handlebar grips, figure (e), up to the maximum and fold downwards to maximum
like in figure B, from above.
4. Push the handlebar forward when you press the folding lever in the direction of the arrow in
the figure (f).
5. Continue folding the scooter until the folding hook reaches the opening located on the rear
brake, as detailed in figure C from above.
