4 - 3
OPERATING PROCEDURES
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers.
4

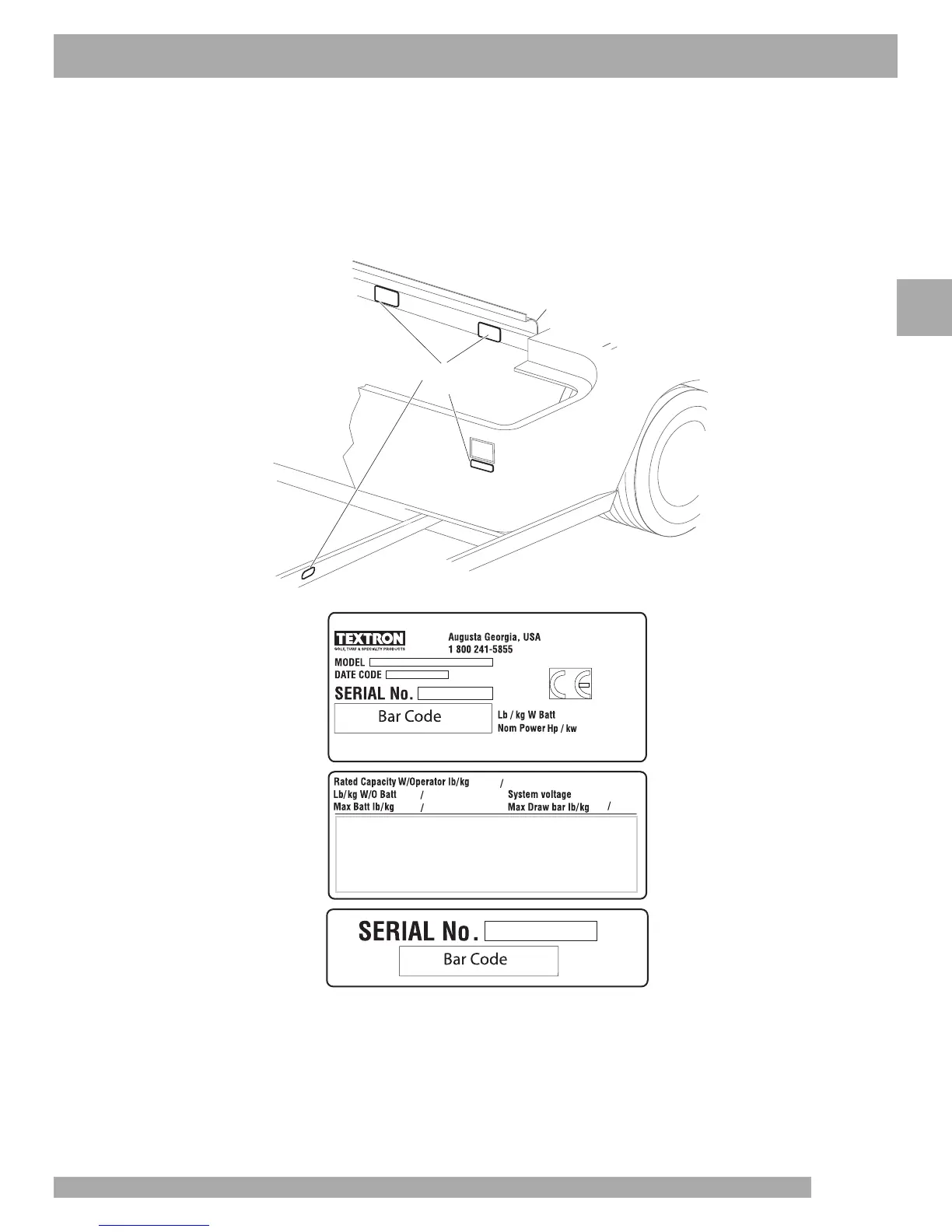

SERIAL NUMBER LOCATION
Two serial number and manufacture date code plates are on the vehicle. One is placed on the body below the front,
driver side of the seat. The other is located on the chassis between the seat back supports. To access it, raise the
seat and lift up the flap on the access panel.
Design changes take place on an ongoing basis. In order to obtain correct components for the vehicle, the manufac-
ture date code, serial number and vehicle model mustacture date code, serial number and vehicle model must be
provided when ordering service parts.
Serial Number & Location
Label No.
V
PART A
PART BPART C/D
Part A and B
Part C
Part D
Lift Flap on Access Panel
Serial Number
Labels
