Eachine Wizard X220s User Manual

7. 0 Additional instructions
1) Default s.bus for flight control receiver agreement
2) i-BUS/S.BUS mode switching:
Switch output mode in normal communication between transmitter and receiver,Each time the long press of the
key to keep the 2s can switch between i-bus/s.b-us output mode.
*The indicator light first dies in a second and then flashes twice, indicating the successful switch to i-bus output
mode.
*The indicator light flashes twice and dies 1 second, indicating the successful switch to S.BUS.

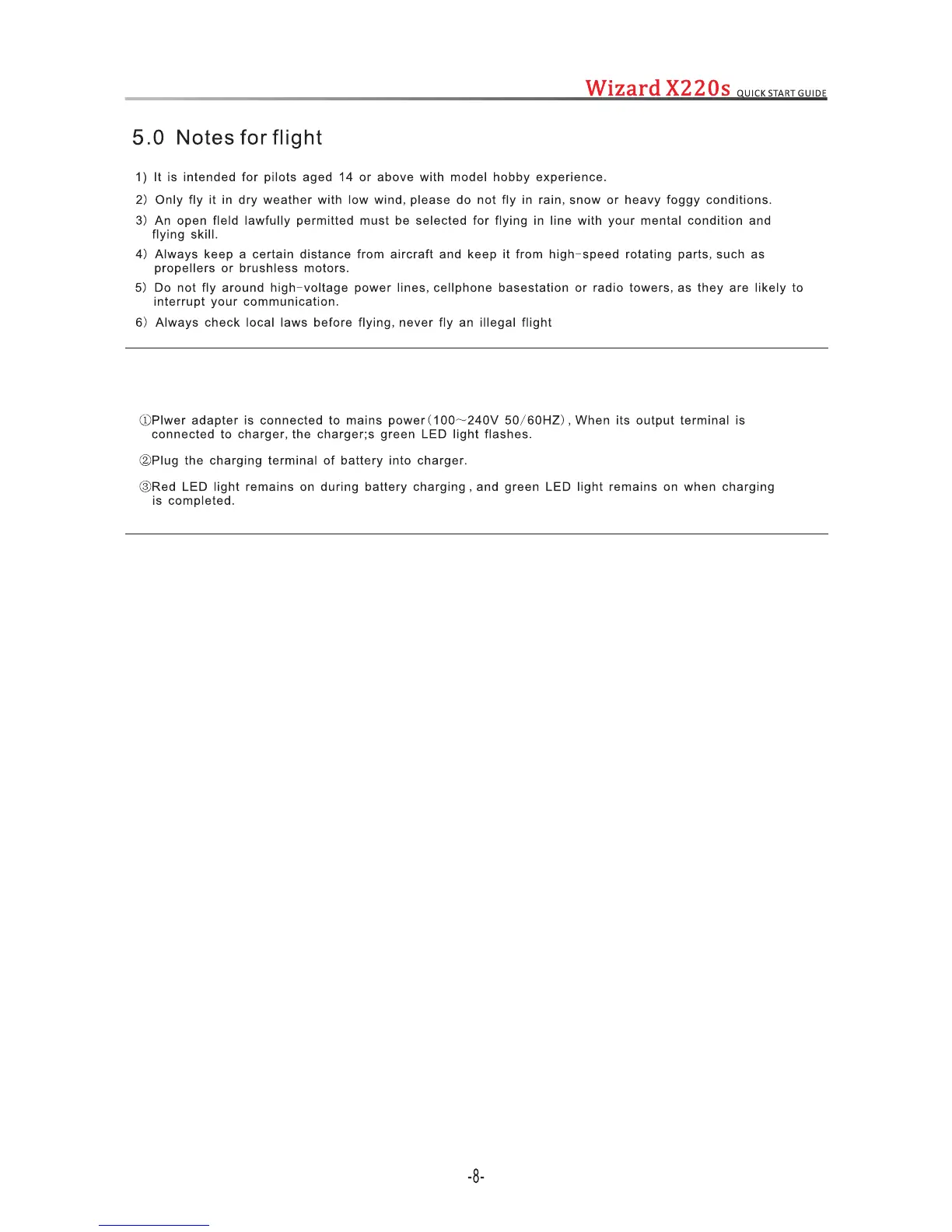

6. 0 Charging

Eachine Wizard X220s Specifications

General

Frame Material	Carbon Fiber
Wheelbase	220mm
Flight Controller	F4
Motors	2206 2300KV
ESC	BLHeli_S
Propellers	5-inch 3-blade Propellers
Camera	700TVL
Video Transmitter	0/25/200/600mW switchable
Receiver	FrSky
Battery	4S 1500mAh LiPo
Weight	Approx. 350g (Without Battery)
