Chapter 4. Technical Data Of Scale
1. Series - ECON Series
2. Serial communication interface - RS-232 signal
3. Transmission distance - <20m
4. Power supply - AC240V;50Hz (-2%~+2%)
5. Operating temperature - (-10°C to 50°C)
6. Relative humidity - ≤85%RH
7. Internal Resolution - 20,00,000

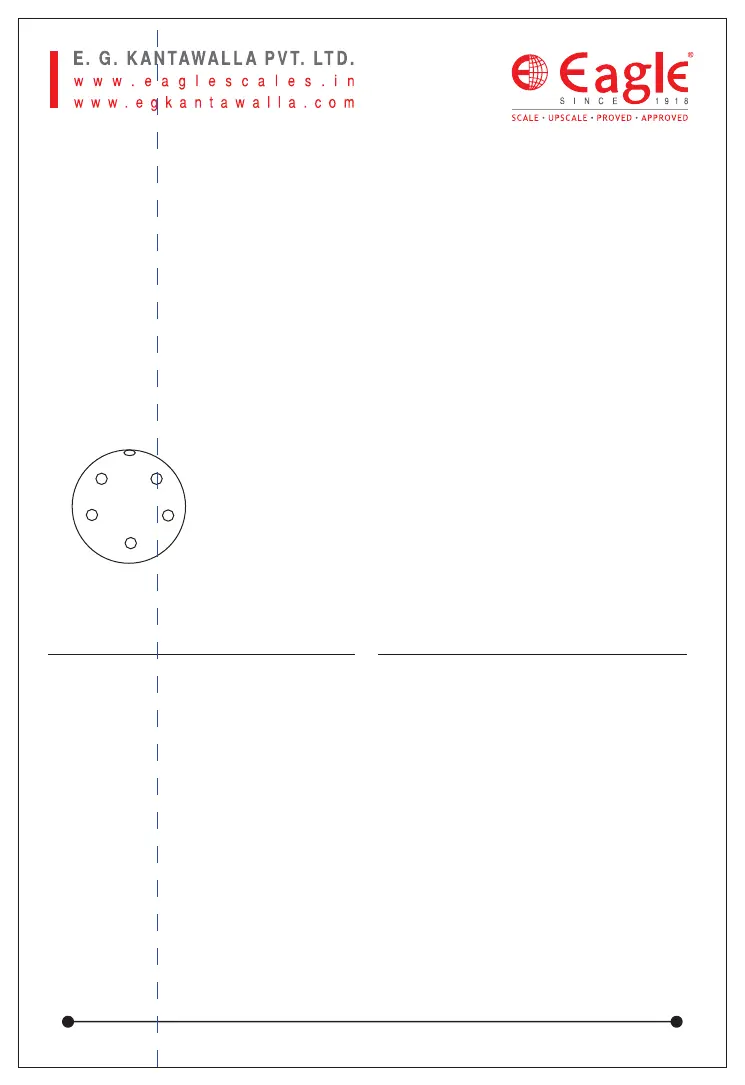

Load Cell Wiring
Pin 1 >>>>> Supply + (Red)
Pin 2 >>>>> Supply - (Black)
Pin 3 >>>>> Signal + (Green)
Pin 4 >>>>> Signal - (White)
Pin 5 >>>>> Shield
RS-232 Cable Wiring
Db9 Pin Female Connector – Scale End DB9 Pin Female Connector – Scale End
(GND) Pin 5 >>>>> Pin 5 (GND)
(Tx) Pin 3 >>>>> Pin 2 (Rx)
(Rx) Pin 2 >>>>> Pin 3 (Tx)
Baud Rate : 1200, 2400, 4800 and 9600
Data Bits : 8
Parity Bit : None
Stop Bit : 1
Chapter 5. Connections
