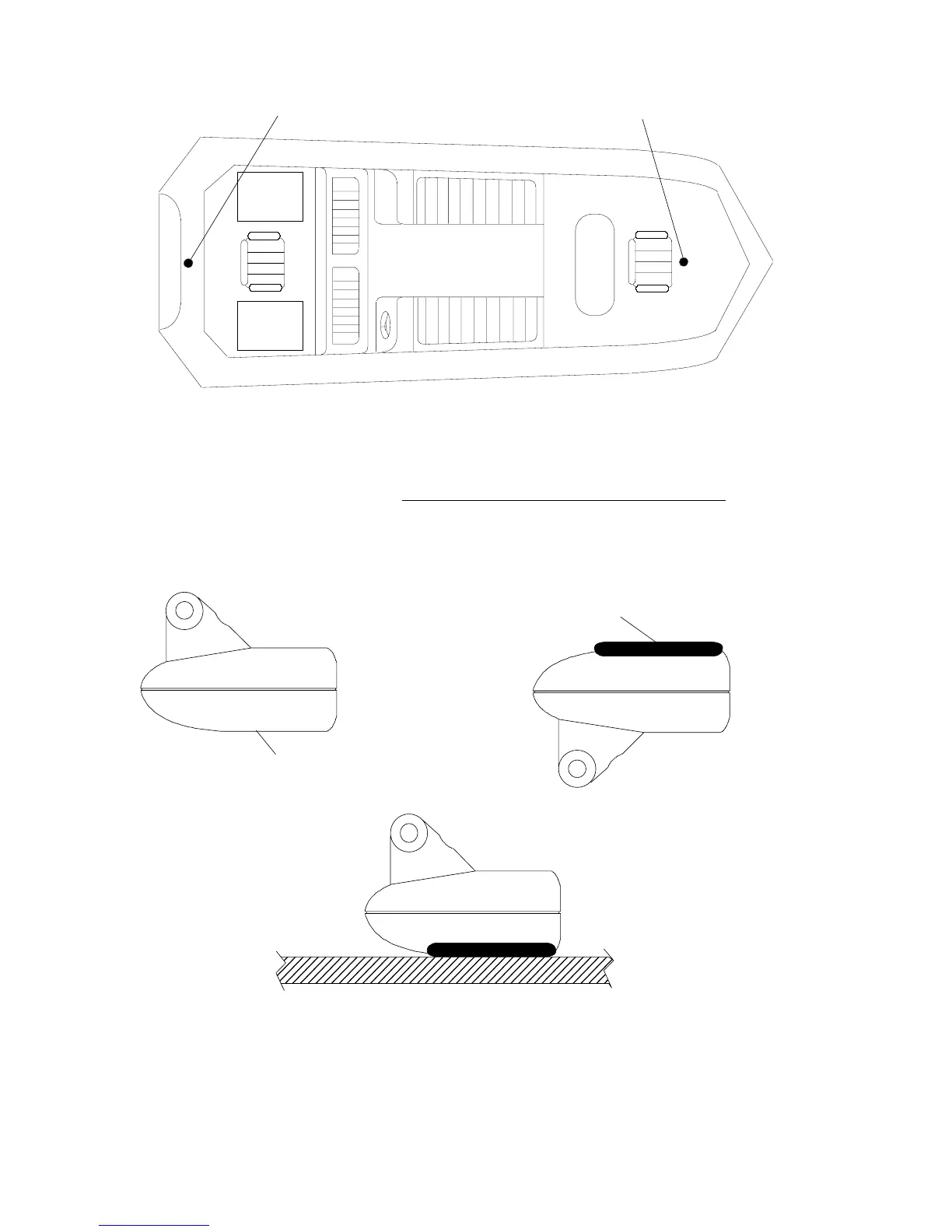

TRANSDUCER LOCATION
(HIGH SPEED)
TRANSDUCER LOCATION
(TROLLING SPEED)
2. Follow the instructions on the epoxy package and mix it thoroughly.
Do not mix it too fast, as it will cause bubbles to form in the epoxy.
(NOTE! Use only the epoxies specified on the inside front cover of this
manual! Failure to use one of these epoxies may result in poor sonar
performance!) Apply a small amount on the face of the transducer as
shown above, then spread a small amount onto the sanded area on the
SAND THIS SURFACE
SPREAD EPOXY HERE
Shoot-thru-hull Installation
(FishEasy and FishEasy ST Only)
1. Make certain the area is clean, dry, and free of oil or grease, then
sand both the inside surface of the hull and the face of the transducer
with 100 grit sandpaper. The surface of the hull must be flat so the entire
transducer face is in contact with the hull prior to bonding.
