- 6 -
3. Machine Setup and Installation

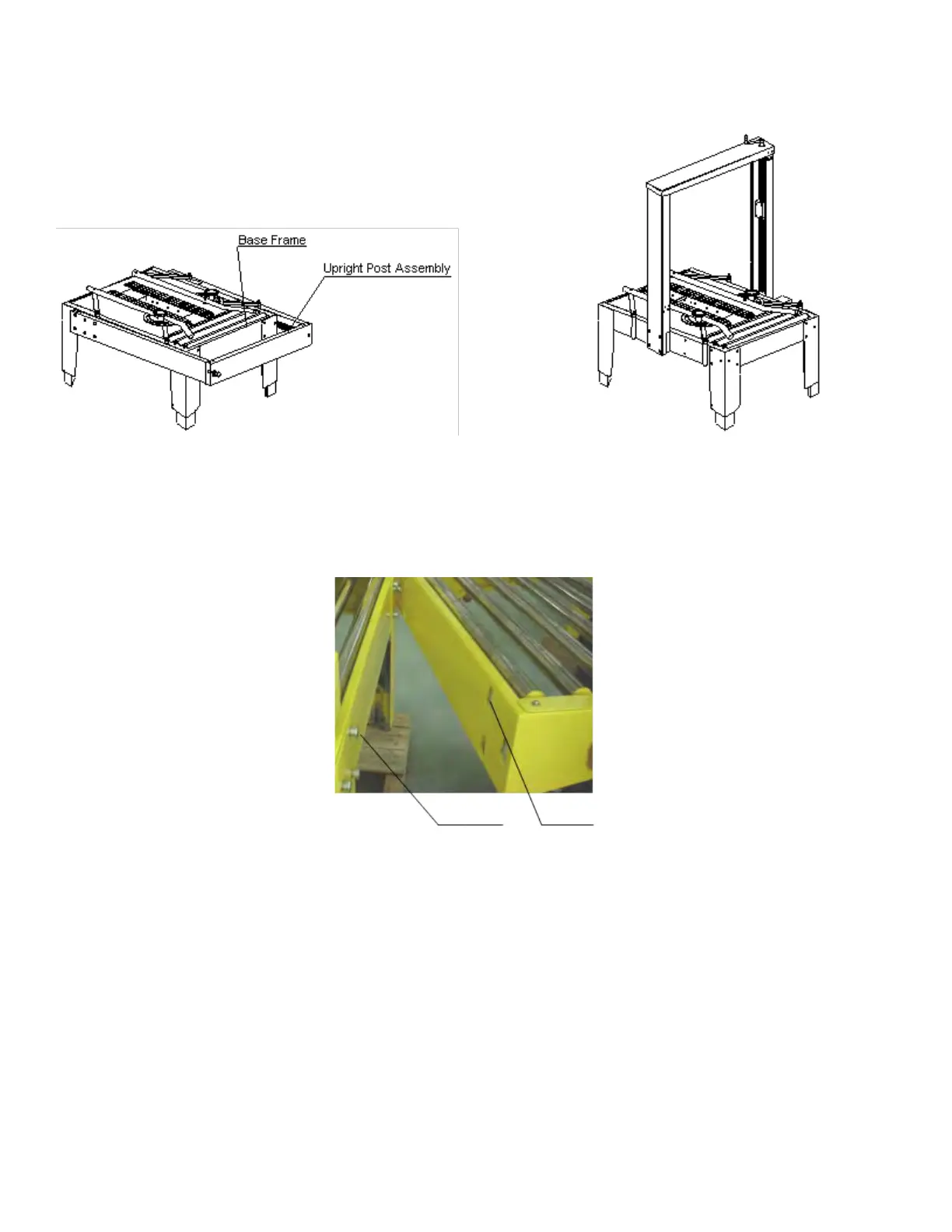

3.4 Upright Post Assembly
Attach upright post assembly to the base frame with the
screws provided
3.5 Extension Table Installation
Align the holes in the extension with the posts in the frame and carefully lower the table extension.
3.6 Connect Power Supply
Connect the machine to the power supply.
Note: Prior to connecting the machine to the power supply, verify that the power switch is set to the ‘OFF’
position and that the work area is clean and clear of any items.
Screw
Hole
