ASSEMBLY GUIDEASSEMBLY GUIDE
2 3
026B
026B
012A
026C
026D
012A
012A
017C
026C
026D
026C
026D
3

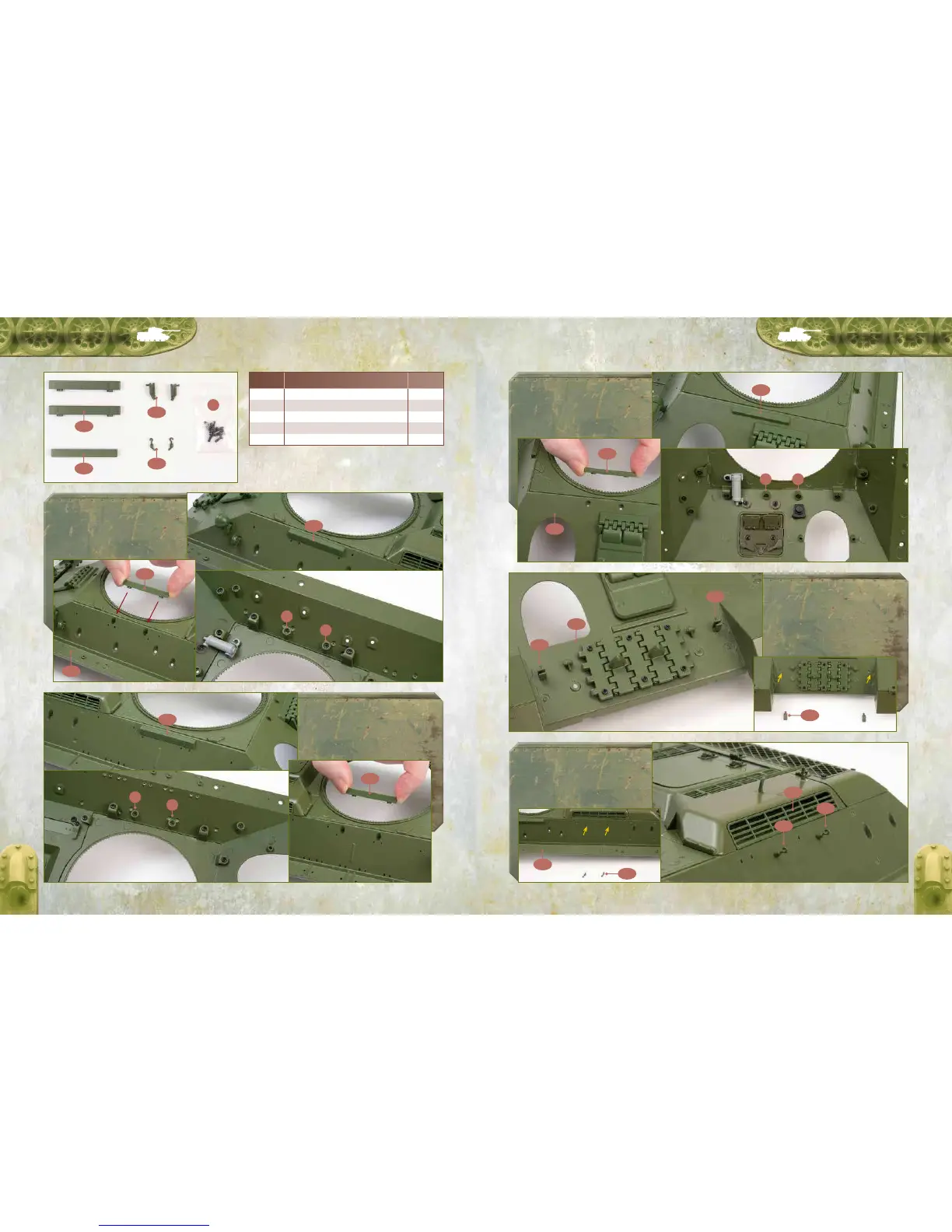

Fit the hull front reinforcement
(026B) into the two recessed holes
on the front of the upper hull
(012A) beside the turret ring base. Fix from
beneath the upper hull with two BP screws.
4
Push one of the hull U-forks (026C)
firmly into the small hole in the left
front of the upper hull (012A). There
is a lug on the lower side of the engaging
pin to ensure the U-fork fits the correct way
up. Repeat for the second hull U-fork (026C)
on the right front of the upper hull.
5
Push the two hull opening forks
(026D) into the two small holes in
the left side of the upper hull (012A),
centrally beneath the left radiator air intake
grille (017C). Orientate the hooks as shown.
BP BP
026B
026C
026D
012A
026A
026A
026A
026A
026A
1
Fit one of the hull side reinforcements
(026A) into the two recessed holes
on the left side of the upper hull
(012A) beside the turret ring base. Fix from
beneath the upper hull with two BP screws.
2
Fit the second hull side reinforcement
(026A) into the two recessed holes on
the right side of the upper hull (012A)
beside the turret ring base. Fix from beneath
the upper hull with two BP screws.
BP
BP
BP
BP
BP
CODE
NUMBER
COMPONENT NAME QUANTITY
026A Hull side reinforcement 2
026B Hull front reinforcement 1
026C Hull U-fork 2
026D Hull opening hook 2
BP 1.7 × 4mm screw 6 + 2*
* includes spares
