Eaglemoss T-34-85 - Page 8

ASSEMBLY GUIDEASSEMBLY GUIDE
2 3
028D
028C
028B
028A
028A
012A
028A
012A
028D
028D

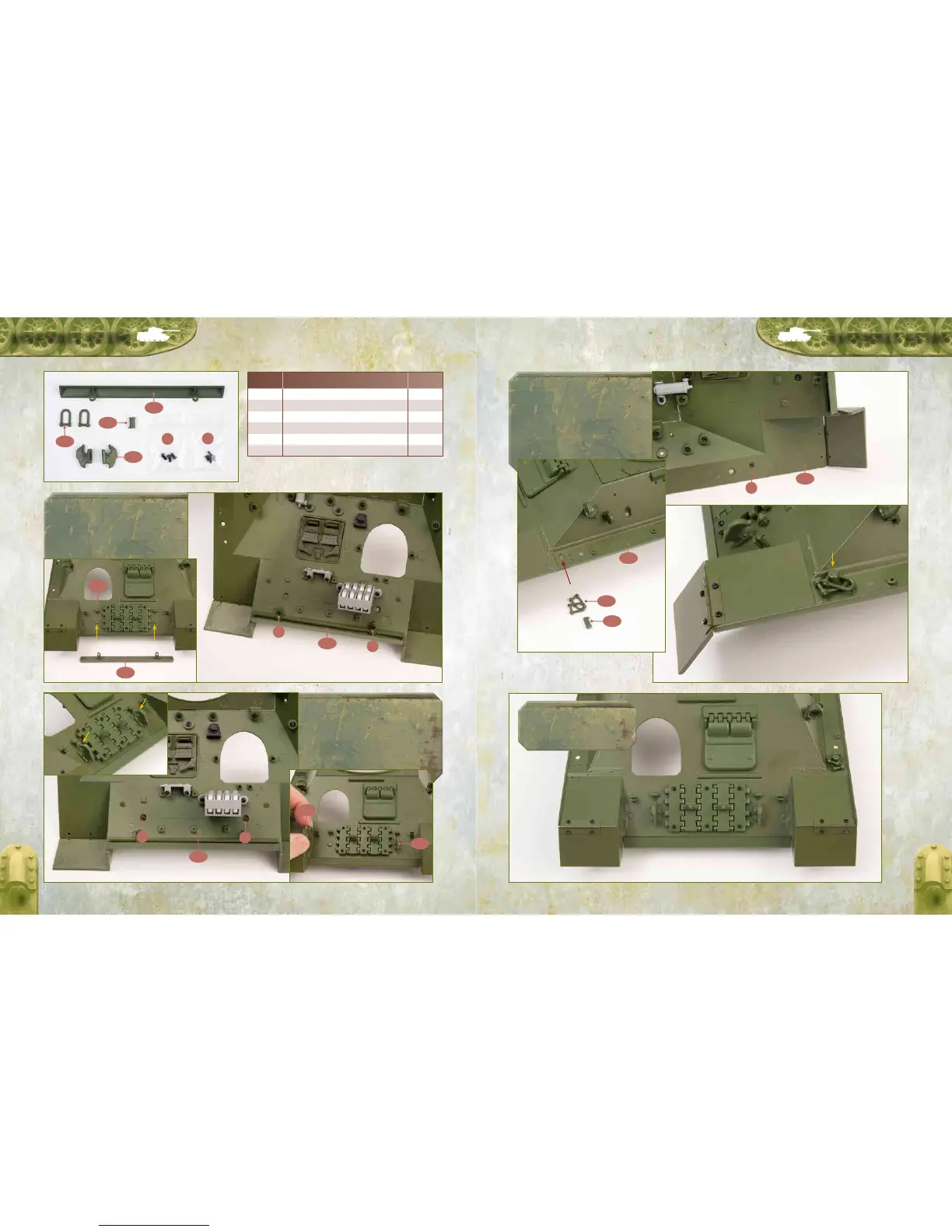

1
Fit the hull nose piece (028A) to the
front of the upper hull (012A) and fix
with two HM screws through the two
tabs into the posts on the underside of
the hull.
2
Fit the opening hooks (028D) to
the raised fixing holes at the front of
the upper hull (012A), ensuring that
the notch engages and that the larger part
of the hook it uppermost. Fix each hook
with an IP screw from beneath the hull.
HM
IP
HM
IP
IP
HM
CODE
NUMBER
COMPONENT NAME QUANTITY
028A Hull nose piece 1
028B Towing hook 2
028C Peg 1
028D Opening hook 2
HM 2.0 × 4mm screw 2 + 1*
IP 1.7 × 3mm screw 3 + 1*
* includes spares
012A
012A
028B
028C
3
Fit the peg (028C) through the
loops of both towing hooks (028B).
Then fit the base of the peg into
the socket behind the front left mudguard
in the upper hull (012A), ensuring that the
notch engages. Fix with an IP screw from
beneath the hull.
IP
4
This is how the front of the
upper hull looks when this
stage is complete.
