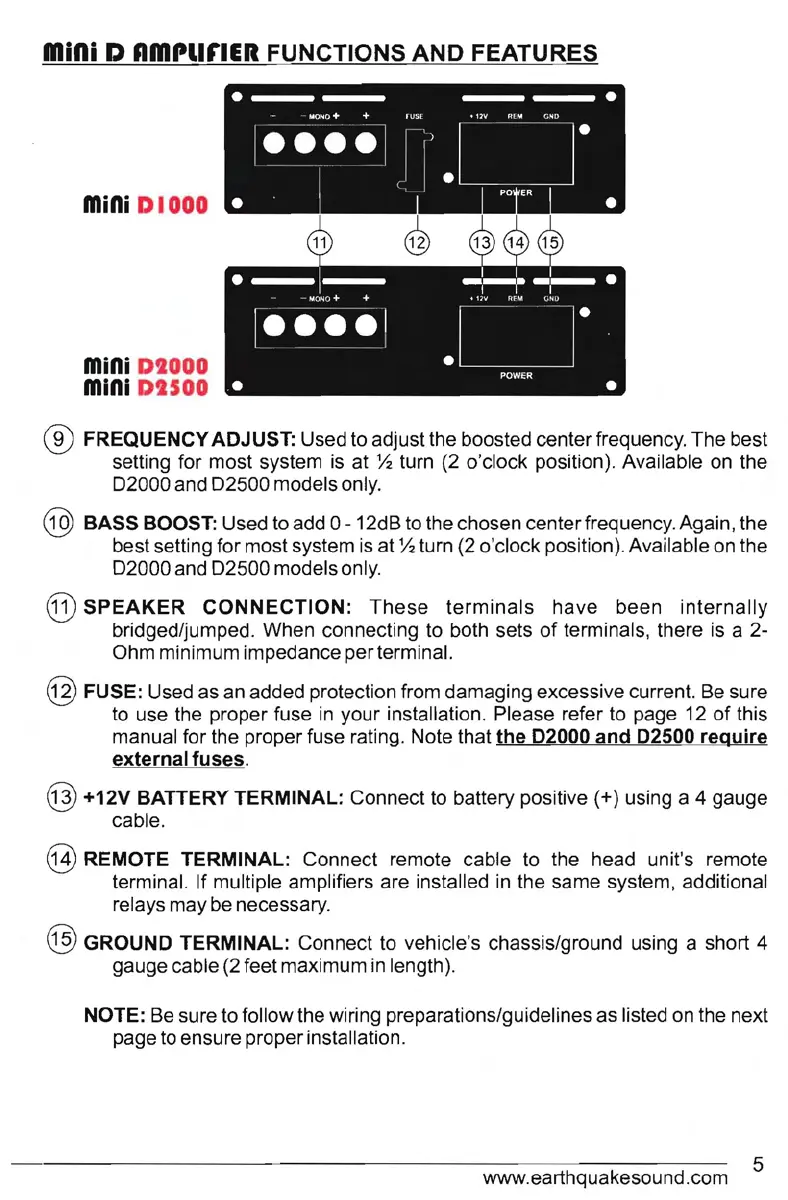

mini D omPlirlER FUNCTIONS AND FEATURES
mini
DIODO
mini
DIODO
mini
DI500
® FREQUENCYAOJUST: Used to adjust the boosted centerfrequency.
The
best
setting for
most
system is at ~ turn (2 o'clock position). Available on the
D2000 and D2500 models only.
@ BASS BOOST: Used to add o
-12dB
to the chosen
centerfrequency
.Again,
the
best setting for most system is at
~
turn (2 o'clock position).Available on the
D2000 and D2500 models only.
@
SPEAKER
CONNECTION:
These
terminals
have
been
internally
bridged/jumped. When connecting to both sets of terminals, there is a 2-
Ohm minimum impedance
per
terminaI.
@ FUSE: Used as an added protection from damaging excessive current. Be sure
to use the proper fuse in your installation. Please refer to page 12 of this
manual for the proper fuse rating. Note that
the
02000
and
02500
reguire
extemal fuses.
@ +12V BATTERY TERMINAL: Connect to battery positive (+) using a 4 gauge
cable.
@ REMOTE TERMINAL: Connect remote cable to the head unit's remote
terminaI. If multiple amplifiers are installed in the same system, additional
relays may be necessary.
® GROUNO TERMINAL: Connect to vehicle's chassis/ground using a short 4
gauge cable (2 feet maximum in length).
NOTE: Be sure to follow the wiring preparations/guidelines as Iisted on the next
page to ensure proper installation.
www.earthquakesound.com
5
