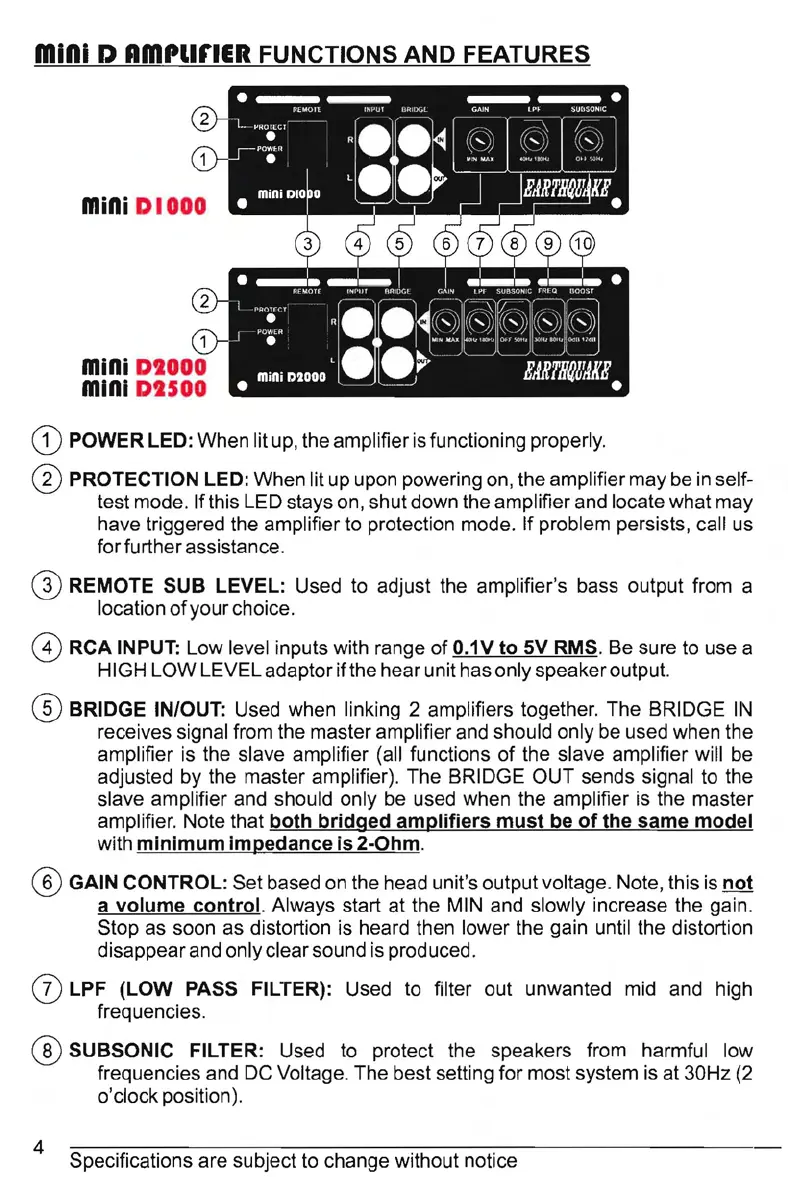

FUNCTIONS AND FEATURES
mini DIOOO
1
mini DtOOO
mini
Dt500
CD
POWER LED: When lit up, the amplifier isfunctioning properly.
(])
PROTECTION LED: When lit up upon powering on, the amplifier may be in self-
test mode. Ifthis LED stays on, shut down the amplifier and locate what may
have triggered the amplifier to protection mode. If problem persists, cali us
for further assistance.
@ REMOTE SUB LEVEL: Used to adjust the amplifier's bass output fram a
location
ofyour
choice.
8)
RCA INPUT: Low level inputs with range of
O.1V
to 5V RMS. Be sure to use a
HIGH LOW LEVEL adaptor ifthe hear unit has only speakeroutput.
® BRIDGE IN/OUT: Used when linking 2 amplifiers together. The BRIDGE
11\1
receives signal from the master amplifier and should only be used when the
amplifier is the slave amplifier (ali functions of the slave amplifier will be
adjusted by the master amplifier). The BRIDGE OUT sends signal to the
slave amplifier and should only be used when the amplifier is the master
amplifier. Note that
both
bridged
amplifiers
must
be
of
the same model
with
minimum
impedance is
2-0hm
.
® GAIN CONTROL: Set based on the head unit's output voltage. Note, this is
not
a
volume
control. Always start at the MIN and slowly increase the gain.
Stop as soon as distortion is heard then lower the gain until the distortion
disappear and only
c1ear
sound is produced .
(])
LPF (LOW PASS FILTER): Used to filter out unwanted mid and high
frequencies.
® SUBSONIC FILTER: Used to protect the speakers from harmful low
frequencies and DC Voltage. The best setting for most system is at 30Hz (2
o'clock position).
Specifications are subject to change without notice
