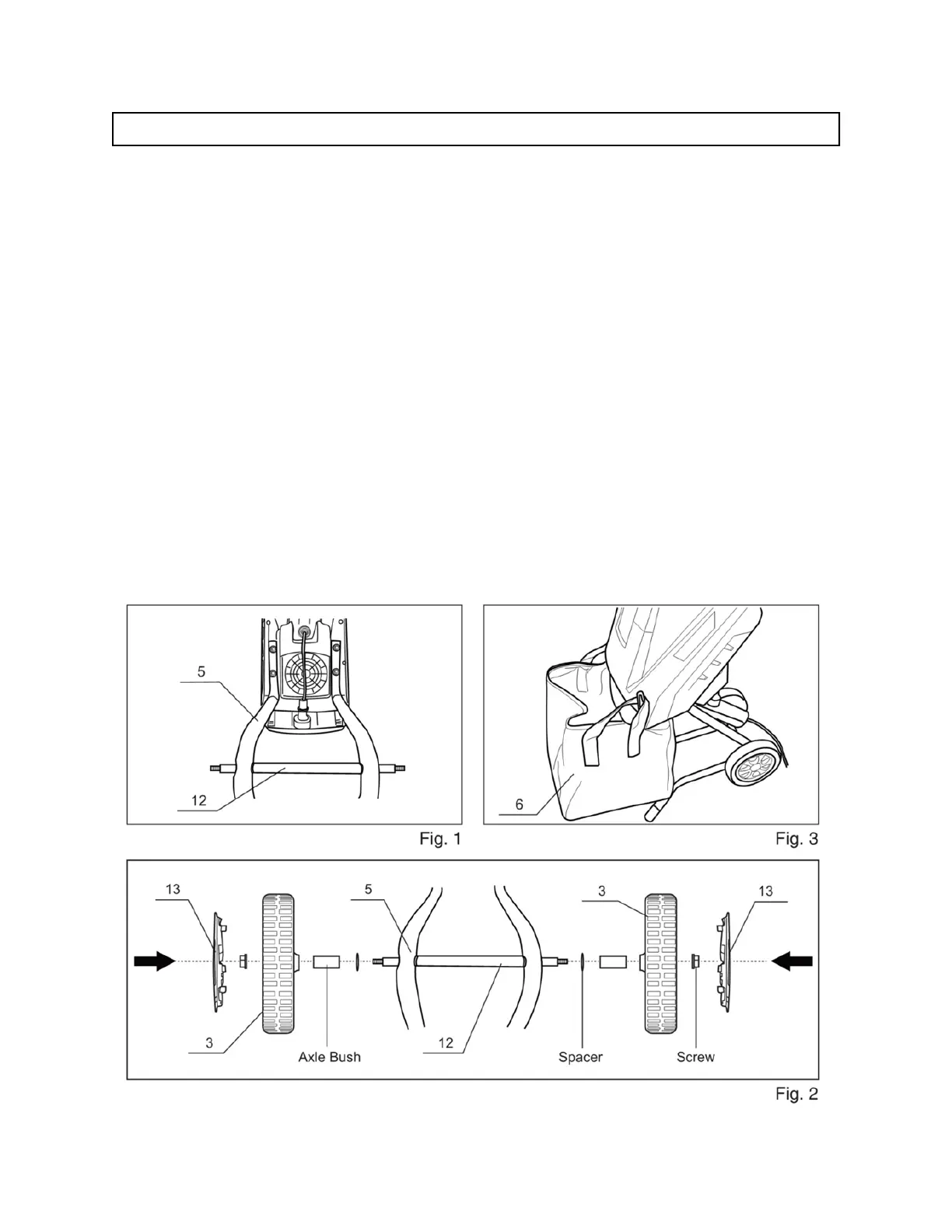

ASSEMBLING THE GARDEN SHREDDER (See Fig. 1.2.3)
1. Remove all parts from package.
Check all the parts against the list in the manual. If any parts are damaged or missing do not use
the garden shredder until the part is repaired or replaced. Call our customer service help line at
1-800-633-1501 for assistance.
2. Turn the shredder over.
3. Fold both legs(5) up and insert the wheel axle (12) through the openings on the legs, firmly fix
the legs with wheel axle on machine body with bolts.
4. Place the spacer and axle bush on both end side of the wheel axle (12), attach the wheels (3)
and firmly fix them with bolts. Fix the wheel cover (13).
5. Clamp the holding loops of the collection bag (6) in the holders on both sides of the product.
WARNING:
Be careful when leaning the device on the wheels, since the weight is unbalanced when tilted and
moved.
Fig. 3
7
Model GS015
