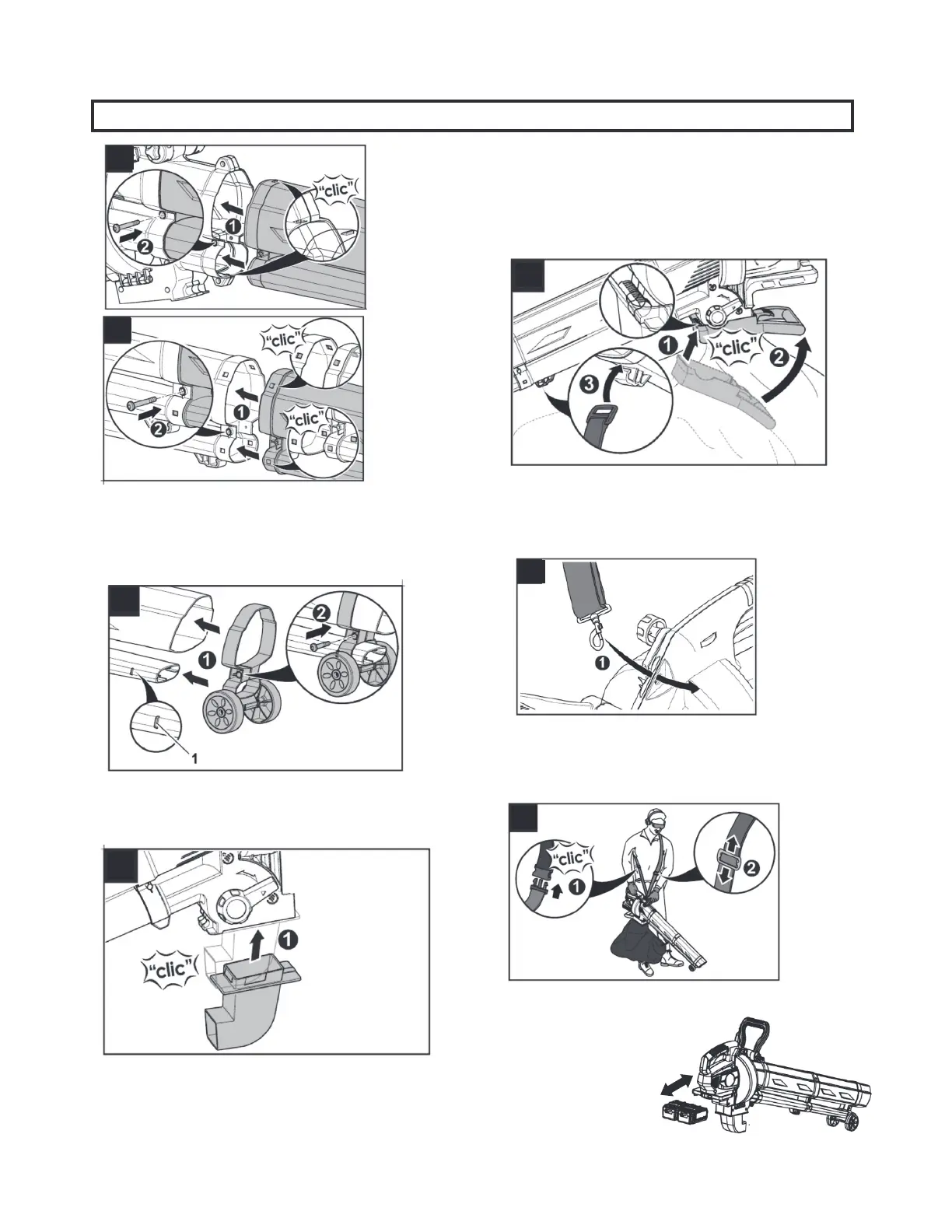

ATTACHING THE TRANSPORT WHEEL ( Fig. 5)
 Place the transport wheel over the bottom vacuum/blow tube and
push it up to the marked stop.
 Fix the transport wheel with the screw.
4
LBVM2202
INSTALLING AND REMOVIN G BATTERY P ACKS FROM THE UNIT
Slide the batter y packs in
your blower (see picture).
Ensure the two batteries
are securely connected to
blower. To remove
batteries, depress release
buttons and slide battery
packs out of tool.
ASSEMBLY
3
4
5
ATTACHING THE DEFLECTOR TUBE ( Fig. 6)
 Press the deflector tube onto the housing with the opening facing
forwards.
6
ATTACHING THE VACUUM BAG ( Fig. 7)
 Hook the front part of the vacuum bag adapte r onto the
connecting piece of the housing.
 Press the rear part of the vacuum bag adapte r onto the
connecting piece of the housing until it audibly latches in.
 Attach the vacuum bag to the fastening hook.
7
FIXING THE CARRYING BELT ( Fig. 8 )
 Attach the carrying belt to the fastening point provided.
NOTE: For safety reasons only carry the device supported over your
shoulder and never around your neck.
8
ADJUSTING THE CARRYING BELT ( Fig. 9 )
 Shut the belt closure
 Adjust the carrying belt to the desired length. The attachment
hook should be at hip height.
9
