B.Description of heat pump

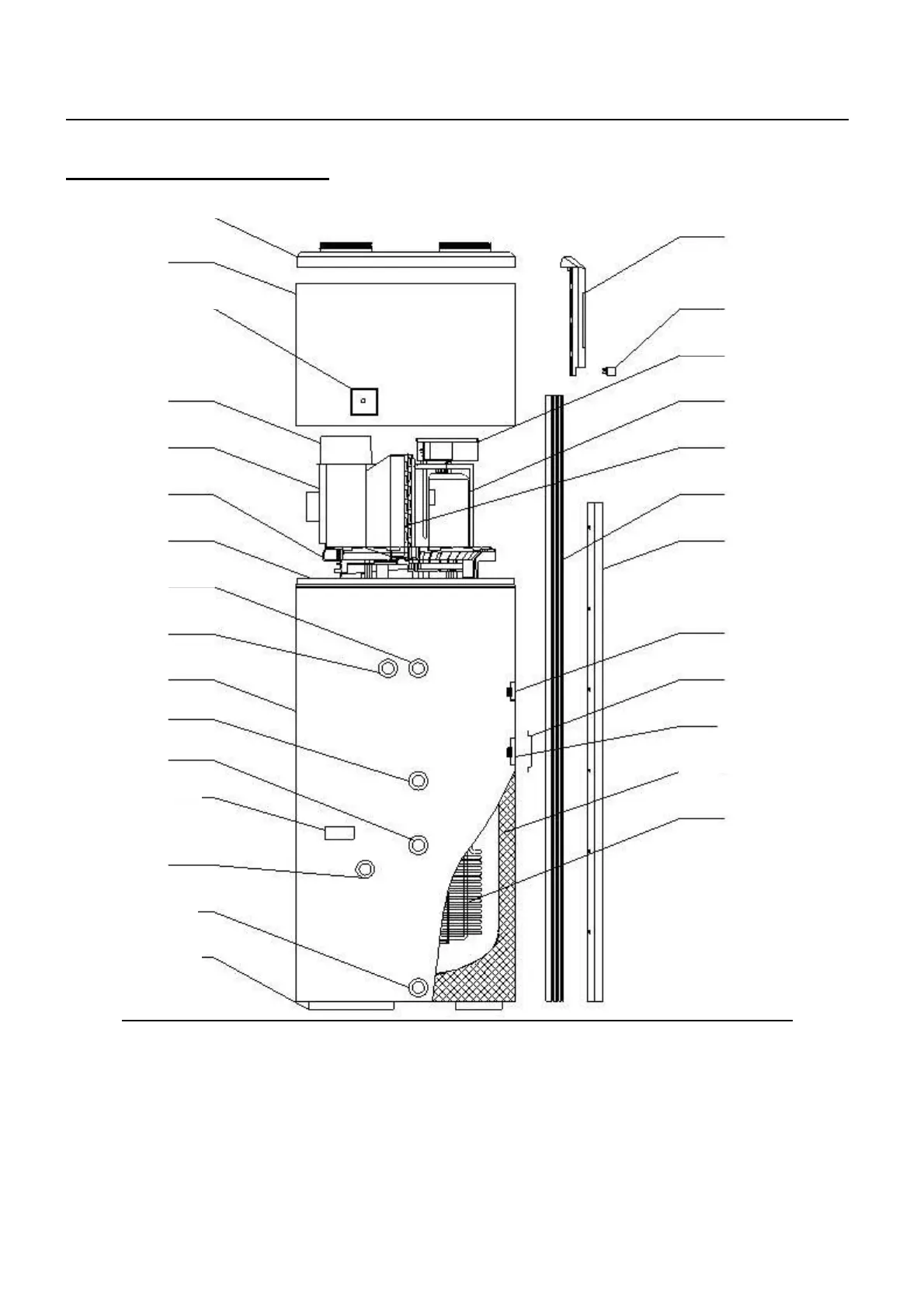

Unit constructions (outside):
Remark:
1. The above drawing is for reference to identify the name of each part. Details are subject to real unit.
2. There are two “Circulation Water Hole” for solar collectors connection. The upper “circulation water
inlet” is the hot water inlet for solar collectors. The lower “circulation water outlet” is the water outlet
traveling to solar collectors.
3. The “Safety Valve” shown in above drawing is designed for certain models.
Decoration Bar
Top Cover
ir Inlet
Outlet Screen Panel
Condensate Overflow Hole
Condenser coil
Hot Water Outlet
Electric Heater Hole
Cold Water Inlet /
Drainage Hole
Supporting frame
Hand Grip
Vent Pipe
Safety Valve
Circulation Water outlet
Upper Cover
Ventilation Fan
Electric Board
Com
resso
Polyurethane Layer
Electric Heater Cove
Magnesium Hole
Decoration Panel
Left/Right Decoration Bar
Eva
orato
Tank Cover
Condensate Drain Hole
Host Chassis
Chassis Installation Board
Circulation Water Inlet
