C. Installation instruction

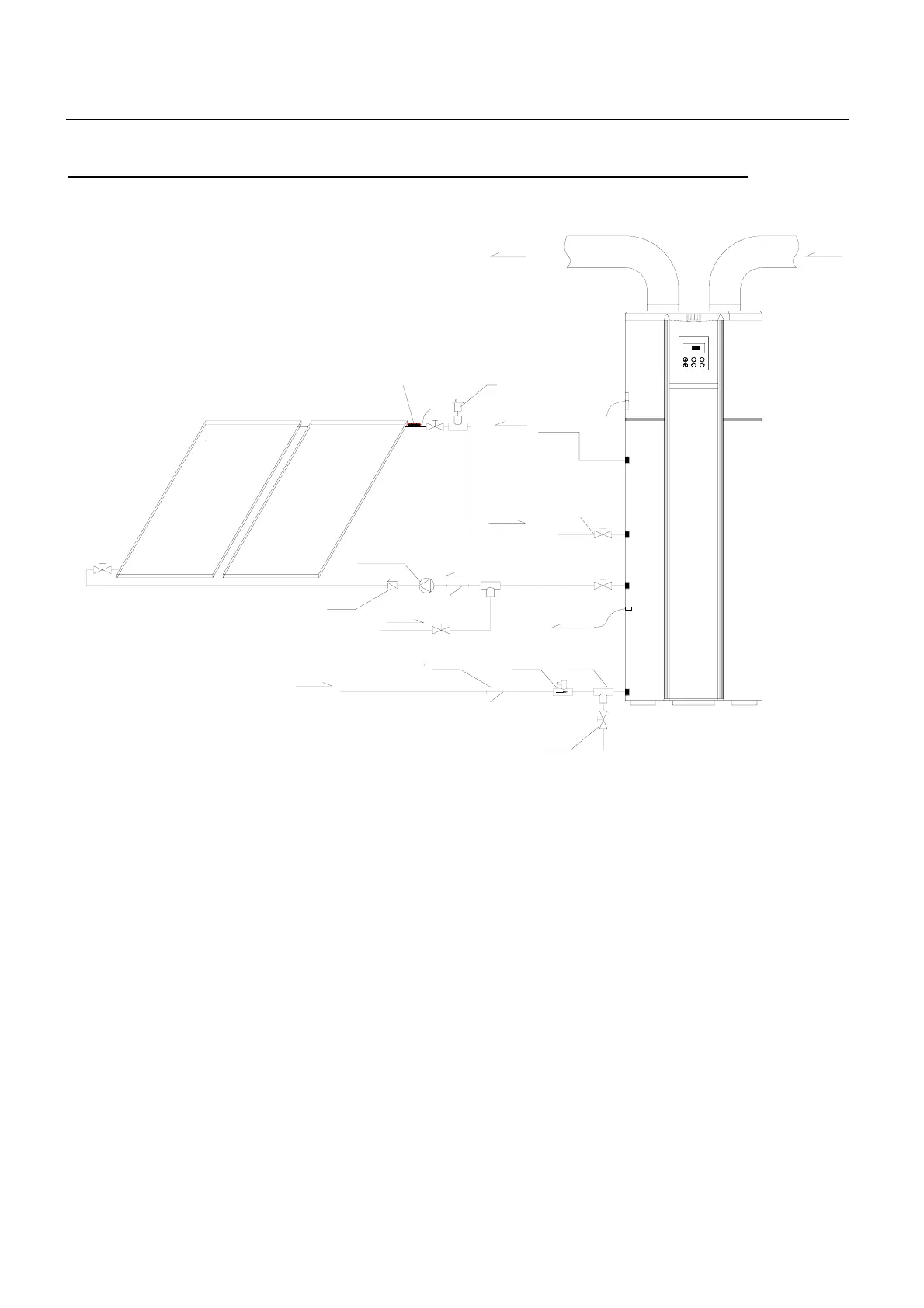

Installation diagram (solar connection only available in the E301WHF model):
ON/OFF
溢流水管
单向阀
阀门
(水或防冻液)
太阳能集热板1 太阳能集热板2
排气阀
温度传感器
循环水泵
排污管
冷凝水排出
风管
出风
进风
球阀
(用水端)
(自来水端)
三通
安全阀
过滤器
热水出
冷水进
MODETIMER
CLOCK
Remark:
1. For the first time use, ensure the water tank have been filled with water before power on to prevent
burn out. Meanwhile, the circulation water pipe should be filled with water, no air left inside. Checking
the pipe to ensure the water circulates successfully.
2. Follow with the water heater unit, there are some installation parts (see the annex detail list of parts).
As for other water system components, the user or installation company should provide by themselves.
3. Before installation, it’s better to reserve a water supply pipe interface, hot water outlet pipe interface
and drainage pipe interface. Among them, the water supply pipe and hot water outlet pipe should be
used in line with standards for drinking water pipes. (E.g. PPR pipe or stainless steel pipe, etc.), can
not use iron pipe or the rubber hose with odor for installation.
4. If the using place below 0 ,℃ please adopt the second circulation system (connect solar coil in the
water tank), the heat-conducting medium should be anti-freezing liquid (propanediol suggested).
Make sure to insulate the water pipes to prevent frozen.
5. Air inlet /outlet can connect Φ153mm vent tube, but pipe should not be too long and less crankle.
Safety Valve
Three-port Valve
Filter
Water Inlet
Water Supply
Ball Valve
i
Outlet
Drainage Pipe
Circulation Pump
Temperature Sensor
Hot Water Outlet
(Hot Water use)
Vent Tube
ir Inlet
Condensate Overflow drain
Valve
Condensate water drainage
Solar Collector1
Solar Collector2
Exhaust Valve
One-wa
Valve
Water/anti-freezin
Li
uid
