Source/Grid Load/Building
Current sensors
Attaching
2

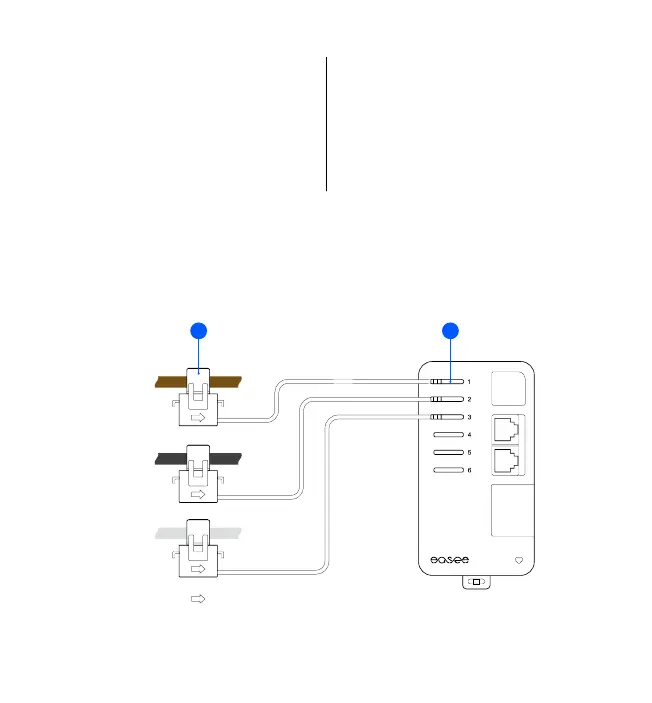

1. Attach current sensor(s) around each
conductor either in front or behind the
main fuse. The arrow on the sensor must
point towards the load.
L1
L2
L3
2. Plug the current sensors, L1, L2 and L3,
into their respective terminals 1, 2 and 3.
NOTE! Depending on national standards,
the colour of the cables can vary from
illustration.
1 2
