Easee Equalizer Amp - Connecting Equalizer Amp

7

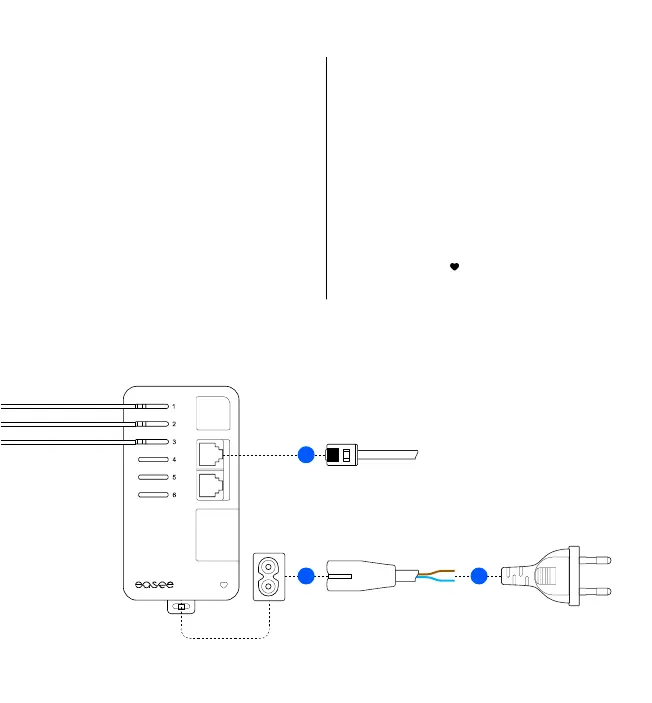

1. Connect the included power cable to
a suitable power source. A separate
fuse with a maximum rating of 16 A is
recommended.
2. Find the RJ12 cable in the Equalizer box
and connect it to an RJ12 terminal on
the Equalizer Amp. The bottom RJ12
terminal is for connecting multiple
Equalizer Amps.
Equalizer Amp
Connecting
3
RJ12
3
2
1
CHECK LIST! Before powering up the
Equalizer Amp, make sure that:
o The current direction is correct on the
current sensors.
o The charging sites and the Equalizer Amp
have the same phase sequence.
o The L1 current sensor is plugged into
terminal 1, L2 sensor in terminal 2 and L3
sensor in terminal 3 on the Equalizer Amp.
3. Power up the Equalizer Amp. You should
see a flashing at the bottom right
corner of the device.
