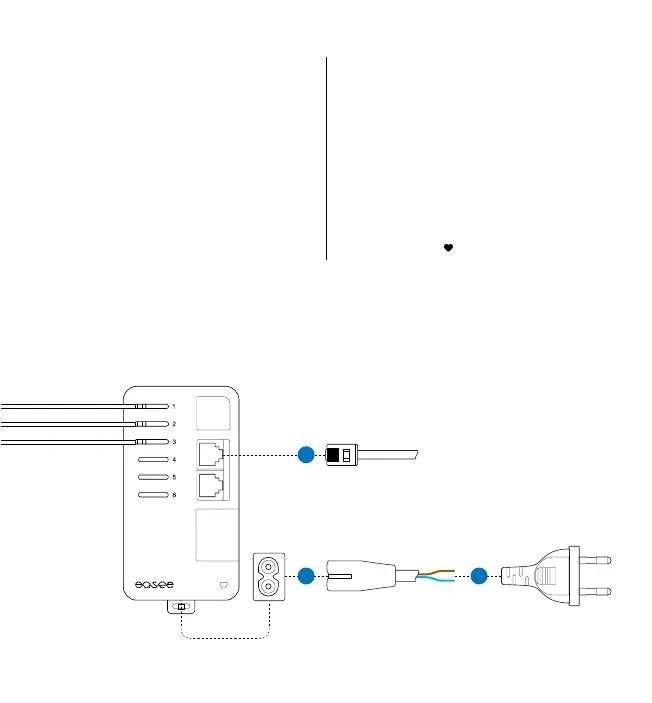

1. Connect the included power cable to
a suitable power source. A separate
fuse with a maximum rating of 16A is
recommended.
2. Find the RJ12 cable in the Equalizer box
and connect it to a RJ12 terminal on the
Amp. The bottom RJ12 terminal is for
connecting multiple Equalizer Amps.
CHECK LIST! Before powering up the
Equalizer Amp, make sure that:
Ѐ The current direction is correct on the
current sensors.
Ѐ The charging sites and the Equalizer Amp
have the same phase sequence.
Ѐ The L1 current sensor is plugged into
terminal 1, L2 sensor in terminal 2 and L3
sensor in terminal 3 on the Equalizer Amp.
3. Power up the Equalizer Amp. You should
see a flashing .
Equalizer Amp
Connecting3
RJ12
3
2
1
