Easee Home Wallbox - Connect the Backplate; Backplate Cable Termination

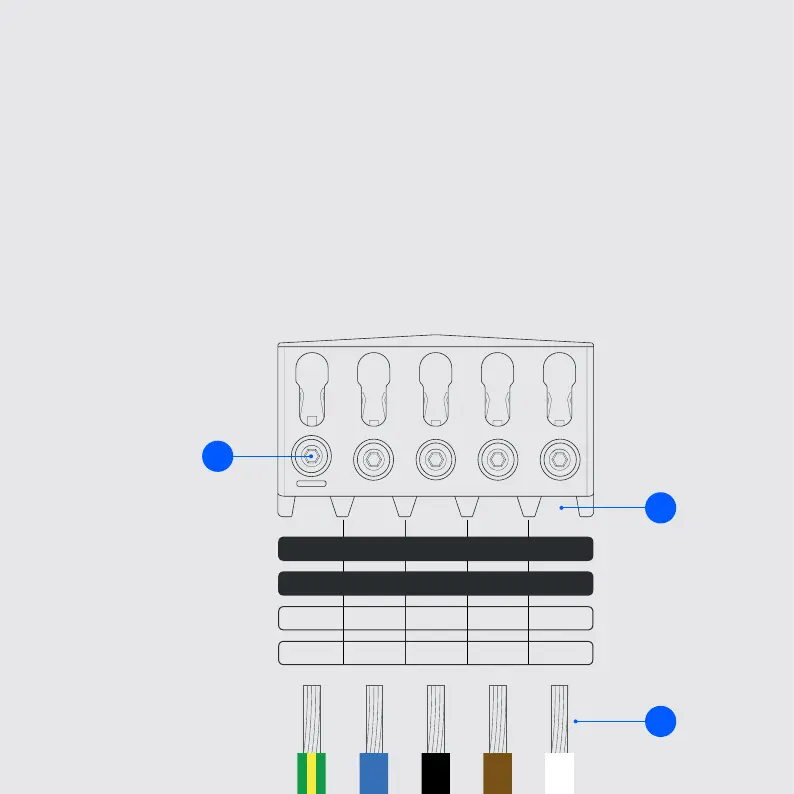

Connect the backplate
4
1. All cable cores must be stripped back allowing 12mm exposed conductor.
2. For parallel connection, each termination port is used as connection point.
3. Tighten the screws with a torque of 5Nm.
NB! Terminations should be visually and mechanically inspected before
mounting the electronics.
3-phase TN
TN
IT
IT
3-phase
1-phase
1-phase
PE
PE
PE
PE
N
L1
N
L1
L1
L2
L2
L1
L2
L3
-
-
L3
-
-
-
3
1
2
