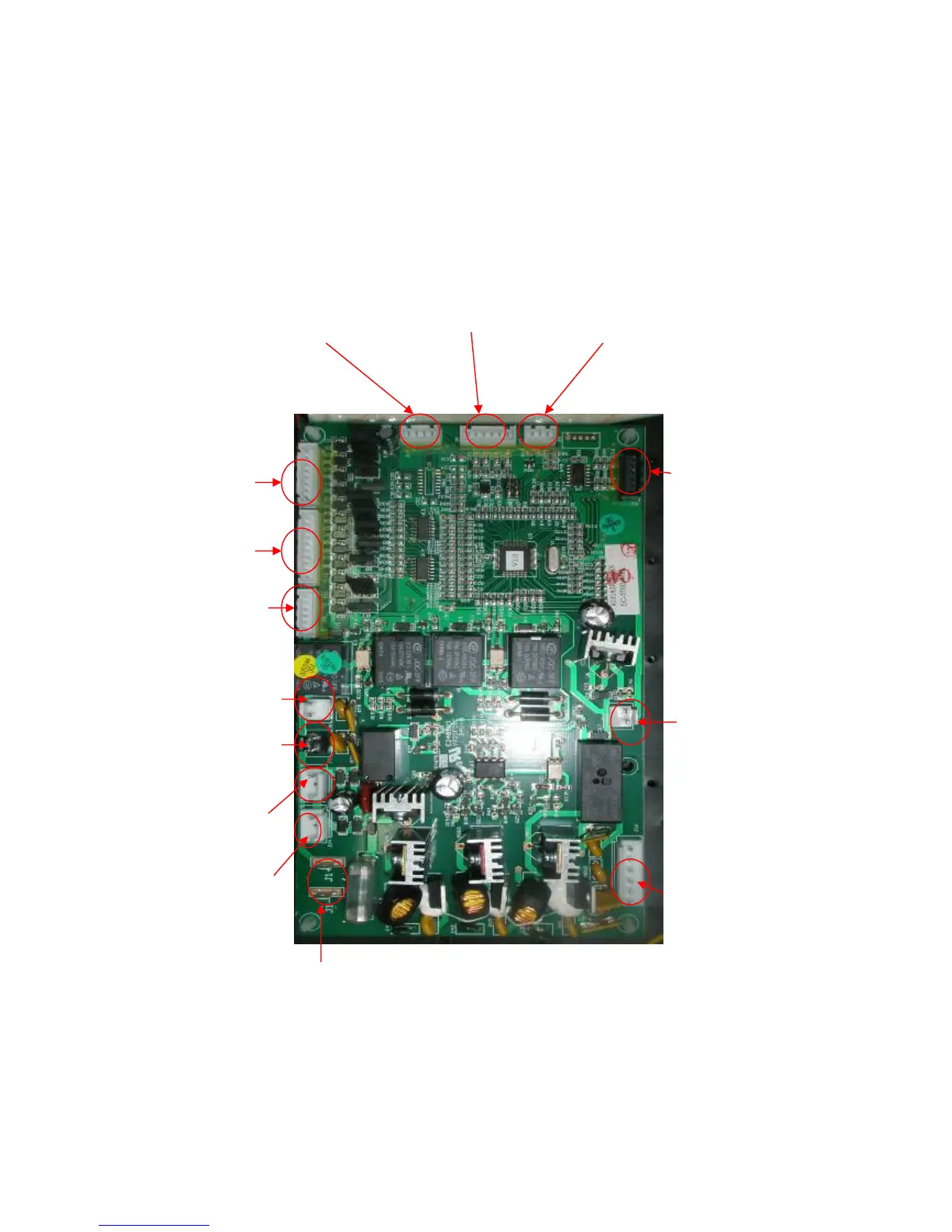

VI. Terminals on the main PCB
Terminal of rolling,
kneading and tapping
motors.
Terminal of the
foot rest actuator
Terminal of the
reclining actuator
Terminal of up and
down stroke photo-
electricity.
Terminal of Height
Inspection.
Terminal of width
inspection.
Terminal of remote
controller.
24VDC voltage
input terminal.
23VAC voltage
input terminal.
Terminal of
inflator pump.
Terminal of
snuffle valves.
Terminal of
vibrators
Terminal of
snuffle valves.
12VDC voltage
input terminal.
