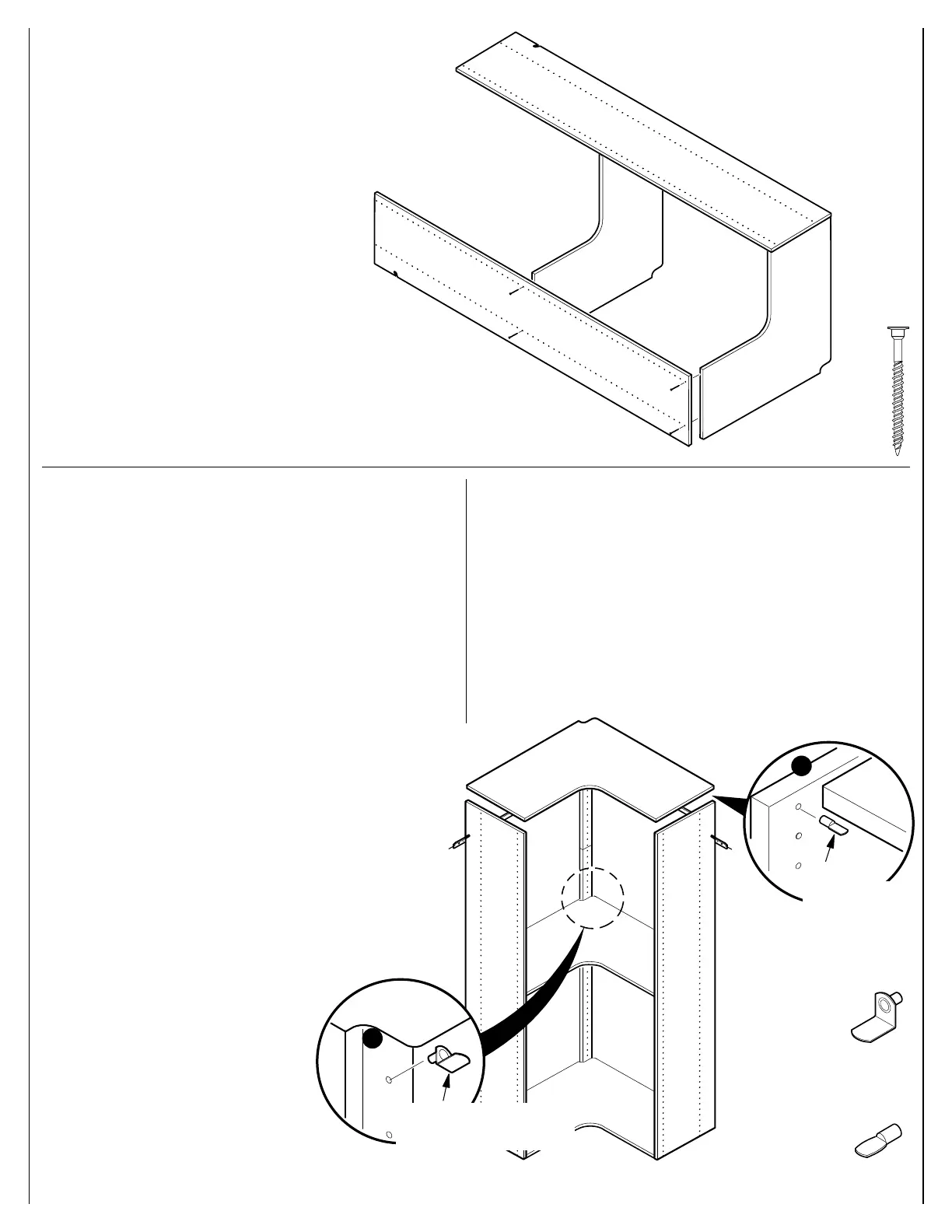

Rotate assembly as shown. Position the
second vertical panel on the floor with
the front edge up and next to the corner
shelves. Attach the vertical panel to the two
corner shelves using #8 x 50mm screws.
9
Lift assembled corner unit onto track. Two people
are recommended for this step. Install offset shelf
pins on the underside of fixed corner shelf in the
corner cleat (Figure A). Lift up back corner of shelf
and install offset shelf pin into cleat.
10
Install top shelf. Push shelf pins into vertical panels
and a shelf pin into the corner cleat (Figure B).
Add additional corner shelves if desired.
11
A
offset shelf pins
clavijas para estantes
shelf pins
Adjustable shelves
Offset shelf pin
Shelf
pins
#6 x
1
/
2"
zinc screws
Toggle bolt
#8 x 50mm screw
