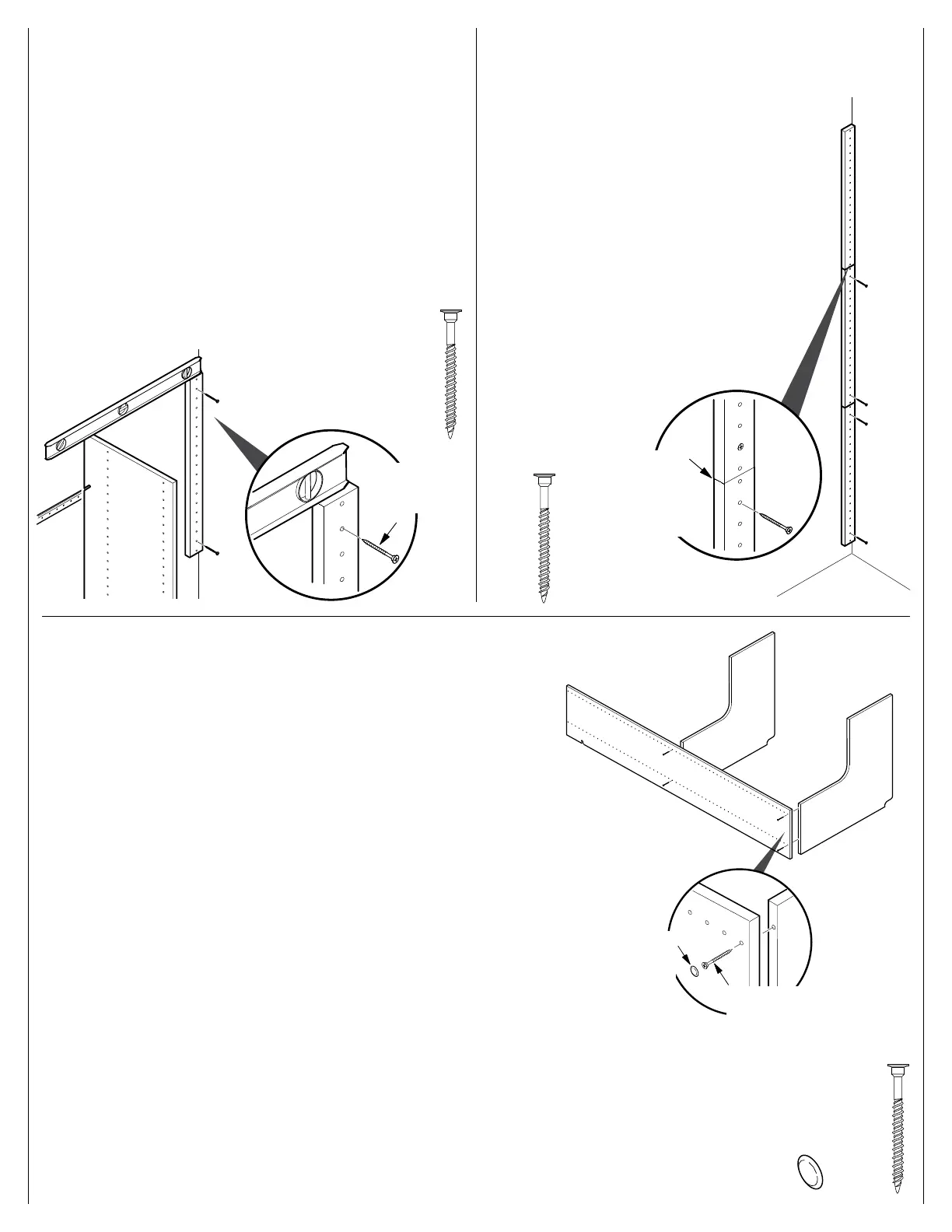

Remove vertical panel. Install 2nd and 3rd cleat
to end of previously installed one with #8 x 50mm
screws. Two (2) cleats are supplied in one corner
shelf kit. Two corner shelf kits are required for a
72" section.
Position cleat in corner and level with vertical panel.
Screw cleat to wall using two (2) #8 x 50mm screws.
Second hole location is recommended. Top hole will be needed
for top shelf.
6 7
Corner shelves are supported by using either 48" or 72" vertical
panels. Position one of the vertical panels on the floor as shown
with front edge up. Attach bottom and middle corner shelf using
#8 x 50mm screws.
Corner shelves are supported by using either 48" or 72" vertical panels.
These panels can be found in RB1460, RB1448, RV1472, RV1447, or
RV72.
8
#8 x
50mm screw
Push cleats together
screw covers
screw covers
#8 x 50mm screw
#6 x
1
/
2"
zinc screws
Toggle bolt
#8 x 50mm screw
#6 x
1
/
2"
zinc screws
Toggle bolt
#8 x 50mm screw
#6 x
1
/
2"
zinc screws
Toggle bolt
#8 x 50mm screw
