STEP 4. R
IG
HT-HAND DOOR ASSEMBLY
The and doors are
Please also pay special attention to the different components and assembly steps involved.
It is very important that you take extra care when assembling the door, to ensure that when
hung, it will align neatly in the front panel and open and close correctly.

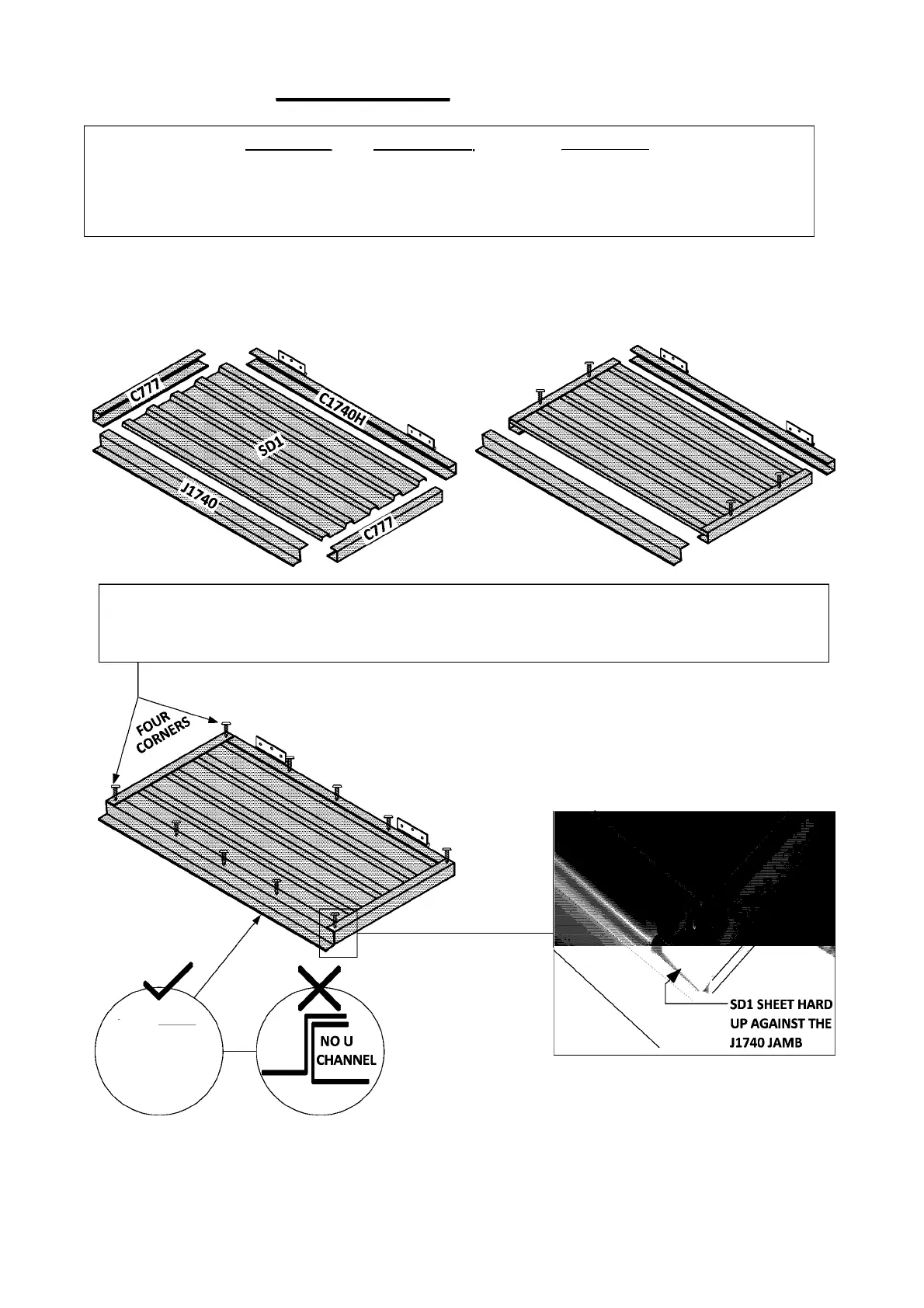

Layout all the components
as shown below.
Move the two 'C777' U channels into
position, and secure with just two screws each
at this stage. Ensure the U channels are flush
with the edges of the sheet.
Move the jamb 'J1740' and the U channel 'C1740H' into position. Ensure the jamb
and U channel are butted up firmly to the edges of the sheet, following the vertical sheet
rib lines. Fasten with just one screw at each corner of the sheet at this stage.
Jl
740
JAMB
ONLY
Check that all the components are located correctly, parallel to each other, and the door
is square (diagonal measurements are equal). Then, continue to fasten the remainder of the
screws shown above.
MODEL: E
F
-D300
8
|
PAGE
13
