This document is an assembly manual for the EasyShed Flat Roof Model EF-D3008, a garden shed designed for outdoor storage. The manual provides detailed instructions for a 5-step assembly process, along with a comprehensive customer checklist for components, safety guidelines, and maintenance recommendations.

Function Description:

The EasyShed Flat Roof Model EF-D3008 serves as an outdoor storage solution, typically for garden tools, equipment, or other items requiring protection from the elements. Its flat roof design is a key characteristic, and the assembly instructions guide users through constructing the back panel, side panels, roof panel, door, and front panel. The shed is designed for self-assembly, with components joined primarily using self-drilling screws and pop rivets. The manual emphasizes the importance of proper anchoring to prevent damage from wind gusts and provides methods for both temporary and permanent anchoring.

Important Technical Specifications:

Model: EF-D3008
Dimensions: 3.0m (length) x 0.78m (width) x 1.82m (height)
Assembly Steps: 5-step assembly process (Back Panel, Side Panel, Roof Panel, Door, Front Panel)
Components (Sheeting Box 1 of 1):
- 1800mm Wall Sheet (SWR1): 6 units
- 1740mm Door Sheet (SD1): 2 units
- 970mm Roof Sheet (SR3): 4 units
- 1800mm Narrow Wall Sheet (SN1): 2 units (710mm wide)
Components (Hardware):
- Self Drilling Screw (ESCREW12): 240 units
- Pop Rivet (ERIVET-S): 40 units
- Internal Channel Joiner (EICJ): 6 units (220mm long)
- Butt Hinge (HINGE64): 4 units
- Door Plate (EDP): 1 unit (222mm long)
- Padbolt & Hasp (EPAH): 3 units
Components (Channels/Jambs/Flashings):
- 970mm L Flashing (L970): 2 units
- 1800mm Jamb (J1800): 2 units
- 1740mm Jamb (J1740): 1 unit
- 1125mm Jamb (J1125): 4 units
- 1740mm U Channel (C1740): 3 units
- 1575mm U Channel (C1575): 2 units
- 1500mm U Channel (C1500): 4 units
- 780mm U Channel (C780): 4 units
- 777mm U Channel (C777): 4 units
- 1500mm U Channel Cut-Out One End (C1500N1): 8 units
Hardware Packs:
- EHP-3: 1 unit
- EHP-HINGE/4: 1 unit
- INNER CHANNEL KIT: 1 unit
Anchoring: Requires 10mm diameter masonry drill for concrete fixing. Anchor brackets and bolts are purchased separately. Rebated concrete slab (50 x 25 rebate boxing) is recommended for water prevention.
Roof Type: Flat roof, non-trafficable.

Usage Features:

Self-Assembly: Designed for DIY assembly, with clear, step-by-step instructions and exploded views of components.
Tool Requirements: Requires a power drill, Phillips head driver, pop rivet gun, and a step ladder. Drill bits specified: 3mm Steel, 10mm Steel (for concrete fixing), 10mm Masonry (for concrete fixing).
Two-Person Assembly: Two people are recommended for handling completed roof and wall panels, especially when carrying them vertically.
Work Area: Suggests a level work area, either a concrete slab or planks on the ground, or a platform made from trestles and planks (3000mm & 1800mm in length).
Component Identification: Components are marked with part numbers where possible; otherwise, they are identified by description, sketches, and sizes.

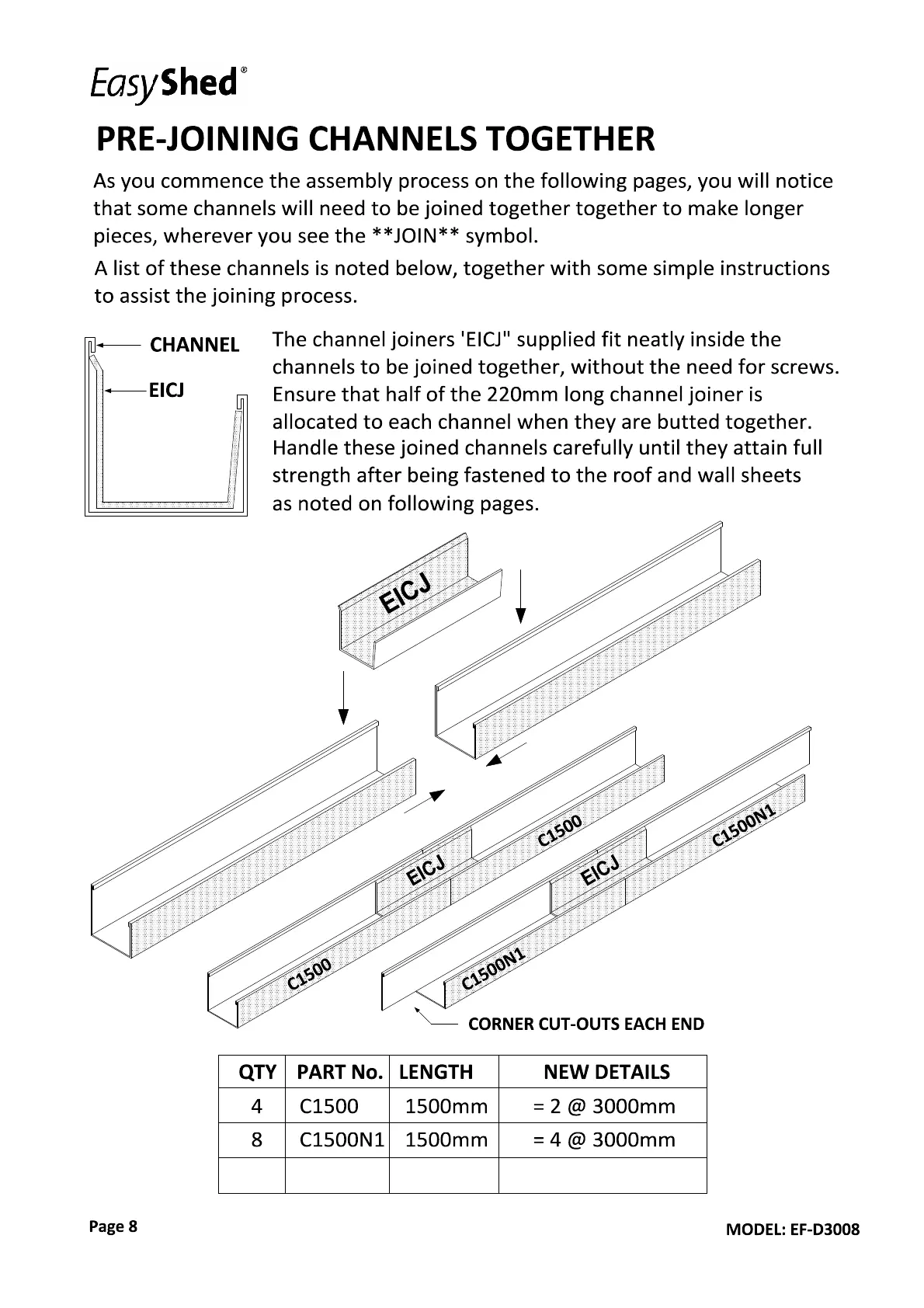

Channel Joining: Specific instructions for pre-joining channels using "EICJ" joiners to create longer pieces, ensuring half of the joiner is allocated to each channel.
Panel Assembly Precision: Emphasizes ensuring overlapped sheets finish flush with perimeter channels for correct shed construction.
Door Assembly: Detailed instructions for both right-hand and left-hand door assemblies, noting they are different. Crucial attention to hinge fitting, door plate, and padbolt installation for smooth operation.
Door Gap: Important instruction to maintain a 6mm gap between doors during fastening to accommodate hinge expansion.
Hinge Spacer: Recommends using a 4-5mm spacer (e.g., screwdriver) when fitting hinges to maintain proper door-to-panel gap.
Anchoring Methods: Provides Method A (concrete slab with fixing set) and Method B (rebated concrete slab) for permanent anchoring, and Method C (galvanized anchor pegs) for temporary anchoring.
Door Alignment Adjustment: Instructions for adjusting door alignment by levering and packing beneath the wall if the site is not level.

Maintenance Features:

Regular Cleaning: Recommended to wash the shed twice yearly with soapy water and hose off. More frequent cleaning is advised in coastal or industrial areas.
Fastening Check: Regular checks of fastening points are crucial to ensure all components are tightly secured, preventing damage from extreme weather.
Waterproofing: Silicone sealants and rubber door seals (available separately) can be used to further assist waterproofing.
Condensation Prevention: Suggests using plastic sheeting to protect valuable stored items from condensation and dripping from the roof panels.
Corrosion Prevention:
- Do not backfill dirt or garden mix against walls, as this will rapidly corrode components and void the warranty.
- Store lawn, garden, and other fertilizers and chemicals at least 300mm away from wall panels, as they can cause rapid corrosion.
Warranty: EasyShed products are warranted for up to 20 years from the date of purchase. Proof of purchase is required for warranty claims.
Non-Trafficable Roof: Explicit warning not to climb on the roof, as it is not designed to be trafficable.
Drainage: For flat roofs, if water entrapment and seepage are a concern, additional screws, silicone sealant, and small holes in perimeter channels can be used to allow water to escape.
