Option Assembly
Front Swivel Casters
Evolv Medium/Large-PNG50314
Evolv XT-PNG50346

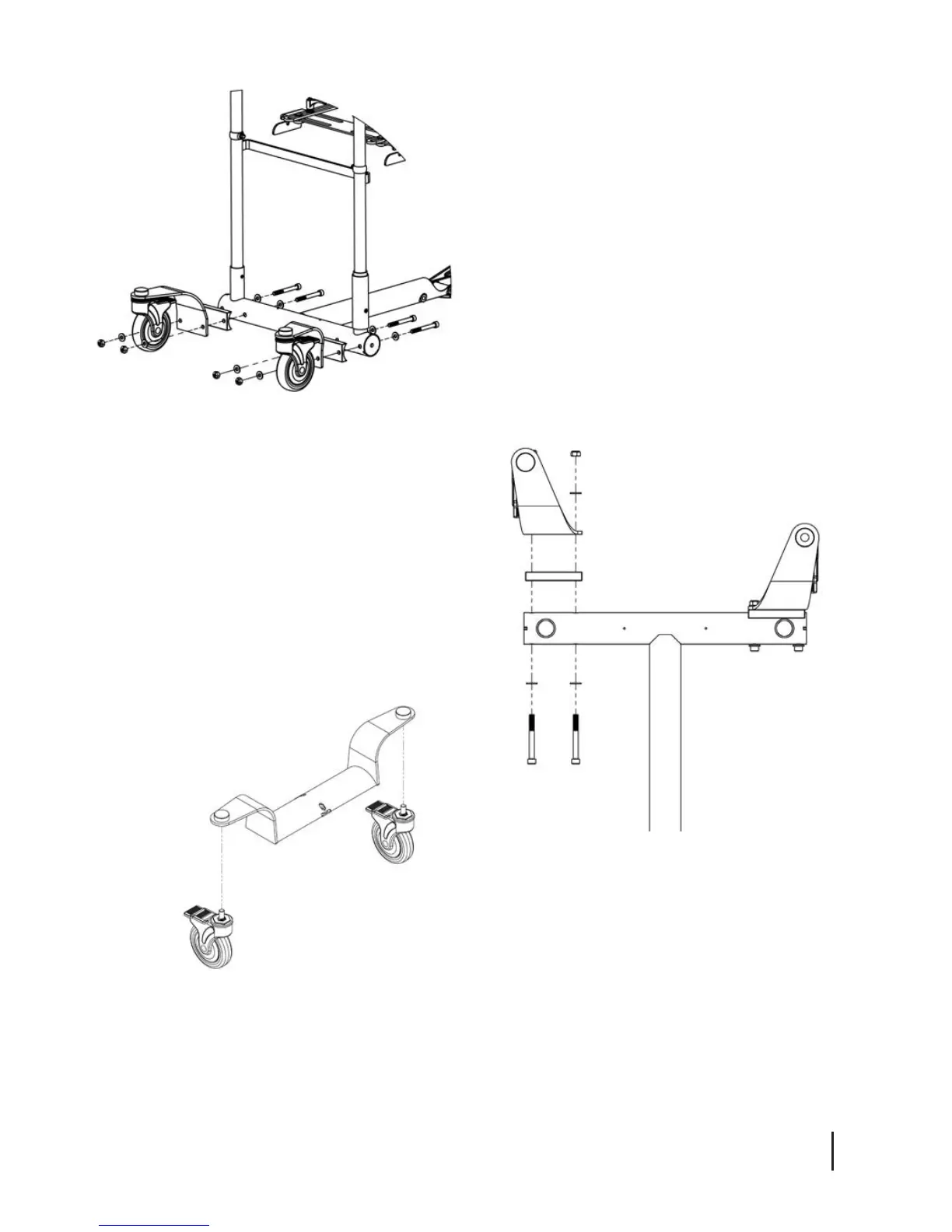

FIG. A- Place a block of wood under the unit to
raise the caster frame. Place hardware onto the
unit as shown- bolt, washer, frame, spacer, cast-
er assembly, washer, then nut.
FIG. B- It is important to ensure the brackets are
assembled as shown, with the angular portion of
the bracket pointing outward and away from each
other. Tighten securely.
Evolv Medium/Large-PNG50314
Front Swivel Casters for
Swing-Away Front
FIG. B
FIG. A
