7EATON Series 1 Heavy Duty Hydrostatic Fixed Displacement Motors Parts and Repair E-MOPI-TS002-E September 2004

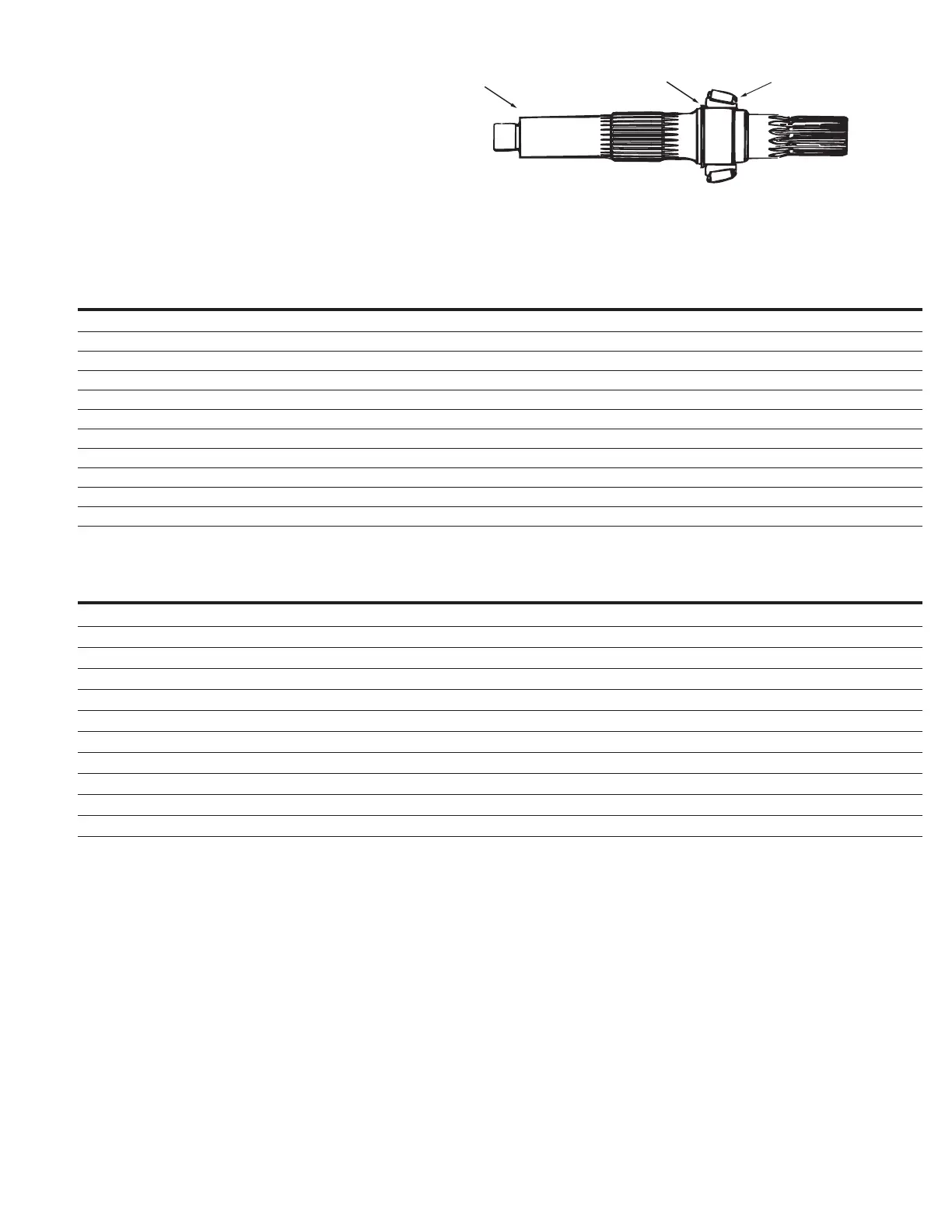

Table 2.1 Output Drive Shaft Assembly For Motors XX31-XXX (Face Seal Design)
MODEL 3331-3931
SHAFT BEARING RETAINING
ASSEMBLY SHAFT CONE RING DESCRIPTION
103226-000 103229-000 103227-000 103222-188 21 Tooth, 16/32, Pitch Spline
104378-000 104396-000 103227-000 103222-188 14 Tooth, 12/24 Pitch Spline
105197-000 105196-000 103227-000 103222-188 14 Tooth, 12/24 Pitch Spline, Speed Sensor
105353-000 105352-000 103227-000 103222-188 21 Tooth, 16/32, Pitch Spline, Speed Sensor
105380-000 105379-000 103227-000 103222-188 [1.500] Diameter Straight W/ [.3750] X [2.5] Square Key
105391-000 105392-000 103227-000 103222-188 19 Tooth, 16/32, Pitch Spline
105426-000 105427-000 103227-000 103222-188 [1.500] Diameter Straight W/ [.3750] X [2.5] Square Key
105451-000 105450-000 103227-000 103222-188 [1.375] Diameter Taper W/ [.375] X [1.00] Woodruff Key
107519-000 107518-000 103227-000 103222-188 14 Tooth, 12/24 Pitch Spline, 3/8-24
110106-000 110098-000 103227-000 103222-188 23 Tooth, 16/32, Pitch Spline, 3/8-24 UNF x [.75] DP
111122-000 111121-000 103227-000 103222-188 19 Tooth, 16/32, Pitch Spline, Speed Sensor
Model 4631
SHAFT BEARING RETAINING
ASSEMBLY SHAFT CONE RING DESCRIPTION
103579-000 103577-000 103227-000 103222-188 23 Tooth, 16/32, Pitch Spline
104190-000 104192-000 103227-000 103222-188 14 Tooth 12/24, Pitch Spline
105123-000 105121-000 103227-000 103222-188 21 Tooth, 16/32, Pitch Spline, Speed Sensor
105364-000 105365-000 103227-000 103222-188 20 Tooth, 16/32, Pitch Spline, 3/8-24 UNF x [.75] DP
105449-000 105448-000 103227-000 103222-188 19 Tooth, 16/32, Pitch Spline
106910-000 106909-000 103227-000 103222-188 20 Tooth, 16/32, Pitch Spline, Speed Sensor
107315-000 107314-000 103227-000 103222-188 [1.500] Diameter Straight W/ [.3750] X [2.5] Square key, 3/8-24 UNF x [.75] DP
109261-000 109260-000 103227-000 103222-188 14 Tooth 12/24, Pitch Spline, Speed Sensor
110107-000 110099-000 103227-000 103222-188 23 Tooth, 16/32, Pitch Spline, 3/8-24
111052-000 111051-000 103227-000 103222-188 [1.500] Diameter Taper W/ [.375] X [1.00] Square Key
111780-000 111779-000 103227-000 103222-188 19 Tooth, 16/32, Pitch Spline, Speed Sensor
Parts
Drive Shaft
(item 1)
Shaft
Bearing Cone
Retaining Ring
