8 EATON Series 1 Heavy Duty Hydrostatic Fixed Displacement Motors Parts and Repair E-MOPI-TS002-E September 2004

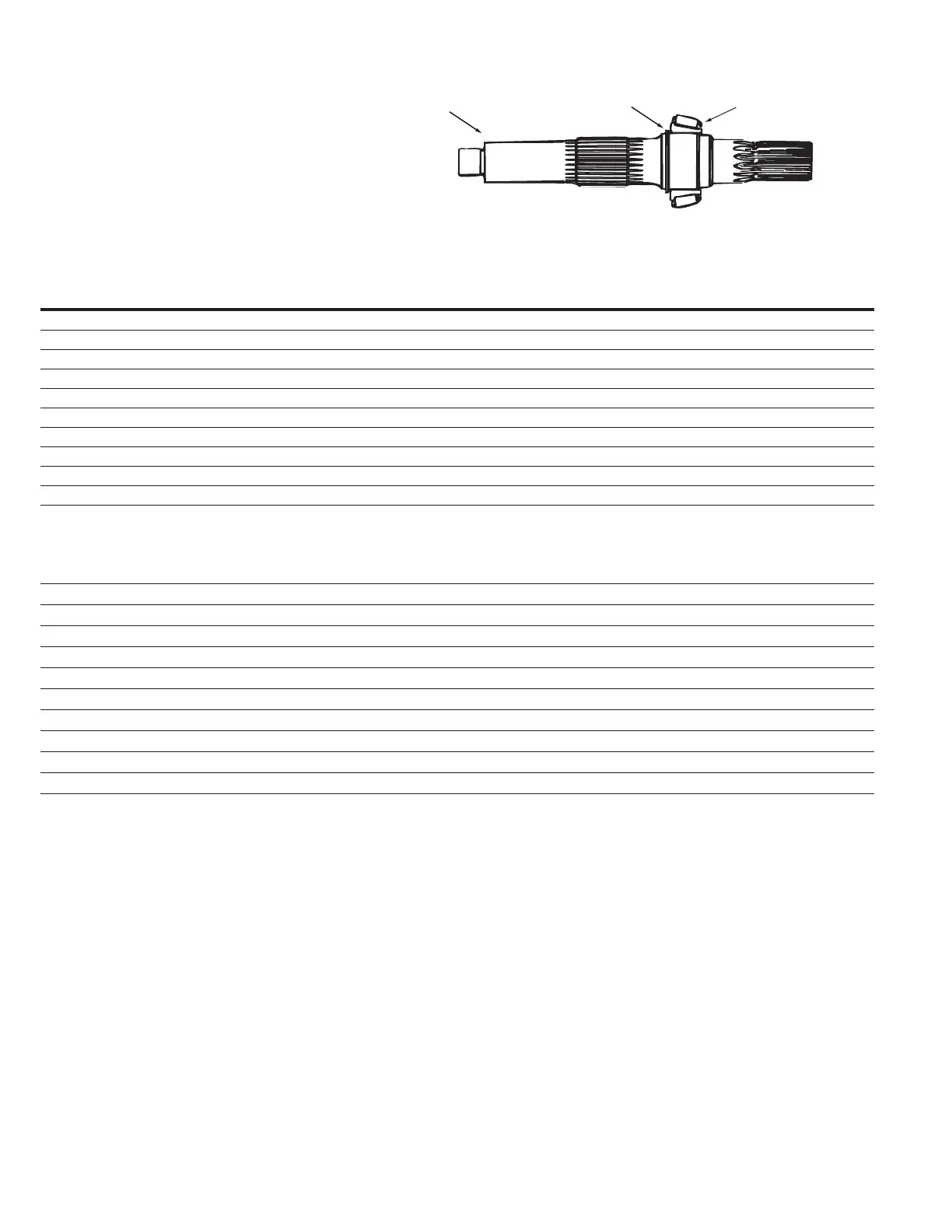

Output Drive Shaft Assembly For Motors XX31-XXX (Face Seal Design)
Model 5431
SHAFT BEARING RETAINING
ASSEMBLY SHAFT CONE RING DESCRIPTION
105052-000 105057-000 103808-000 103222-200 14 Tooth 12/24, Pitch Spline
105060-000 105061-000 103808-000 103222-200 21 Tooth, 16/32, Pitch Spline
105070-000 105071-000 103808-000 103222-200 23 Tooth, 16/32, Pitch Spline, Speed Sensor
105170-000 105167-000 103808-000 103222-200 23 Tooth, 16/32, Pitch Spline
105331-000 105332-000 103808-000 103222-200 23 Tooth, 16/32, Pitch Spline W/ 3/8-24 UNF x [.75] DP
105335-000 105336-000 103808-000 103222-200 [1.500] Diameter Straight W/ [.375] X [2.5] Square key
106143-000 106142-000 103808-000 103222-200 21 Tooth, 16/32, Pitch Spline, Speed Sensor
108211-000 108203-000 103808-000 103222-200 [1.500] Diameter Straight W/ [.375] X [2.5] Square Key, 3/8-24 UNF x [.75] DP
110692-000 110691-000 103808-000 103222-200 21 Tooth, 16/32, Pitch Spline W/ 3/8-24 UNF x [.75] DP
111602-000 111601-000 103808-000 103222-200 21 Tooth, 16/32, Pitch Spline W/ M10 X 1.5 threaded hole
MODEL 6431
SHAFT BEARING RETAINING
ASSEMBLY SHAFT CONE RING DESCRIPTION
104640-000 105053-000 103808-000 103222-200 21 Tooth, 16/32, Pitch Spline
105062-000 105063-000 103808-000 103222-200 21 Tooth, 16/32, Pitch Spline
105066-000 105067-000 103808-000 103222-200 23 Tooth, 16/32, Pitch Spline
105270-000 105269-000 103808-000 103222-200 23 Tooth, 16/32, Pitch Spline, Speed Sensor
105356-000 105357-000 103808-000 103222-200 [1.500] Diameter Straight W/ [.3750] X [2.5] Square key
107355-000 107354-000 103808-000 103222-200 [1.500] Diameter Straight W/ [.3750] X [2.5] Square key, 3/8-24 UNF x [.75] DP
107632-000 107631-000 103808-000 103222-200 23 Tooth, 16/32, Pitch Spline, 3/8-24 UNF x[.75] DP
111141-000 111142-000 103808-000 103222-200 [1.500] Diameter Straight W/ [.3750] X [2.5] Square key
111591-000 111590-000 103808-000 103222-200 21 Tooth, 16/32, Pitch Spline, Speed Sensor
113438-000 113437-000 103808-000 103222-200 14 Tooth 12/24, Pitch Spline
Parts
Drive Shaft
(item 1)
Shaft
Bearing Cone
Retaining Ring
