29OPERATION AND INSTALLATION INSTRUCTIONS MN280075EN July 2018
Form 6 microprocessor-based rack-mount recloser control
1.44 dia. Hole
(male receptacle for
Junction Box Cable)
1.98 dia. Hole for
customer-suppplied cable
between control and junction box
109 mm
(4.25 in)
1.44 dia. Hole
(capped)
203 mm
(8.0 in)
254 mm
(10.0 in)
152 mm
(6.0 in)
.312 diameter
Mounting Hole (4)
292 mm
(11.5 in)
101.5 mm
(4.0 in)
.41 diameter
Mounting Hole (2)
273 mm
(10.75 in)

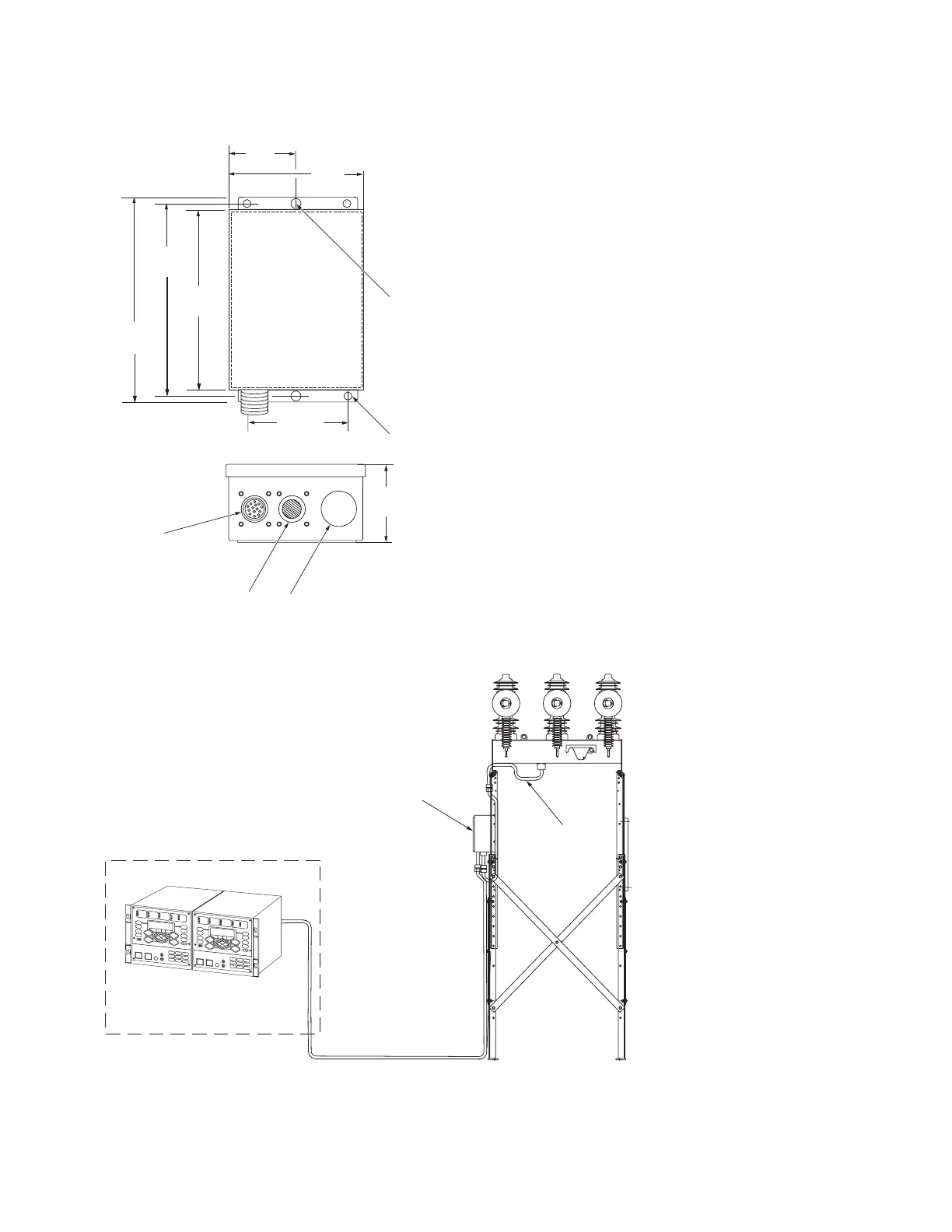

Figure23. Form 6 recloser interface junction box KME6-1859 dimensions mm (in). (Dimensions are approximate.)
O
P
E
N
TRIP CLOSE
TRIP CLOSE
Recloser Interface
Junction Box
KME6-1859
Form 6 Recloser Control
in Substation House
Recloser Interface
Junction Box Cable
(disconnects at
both ends)
Customer-Supplied Control Cable
Figure24. Form 6 recloser control connected to a recloser through a KME6-1859 recloser interface junction box
