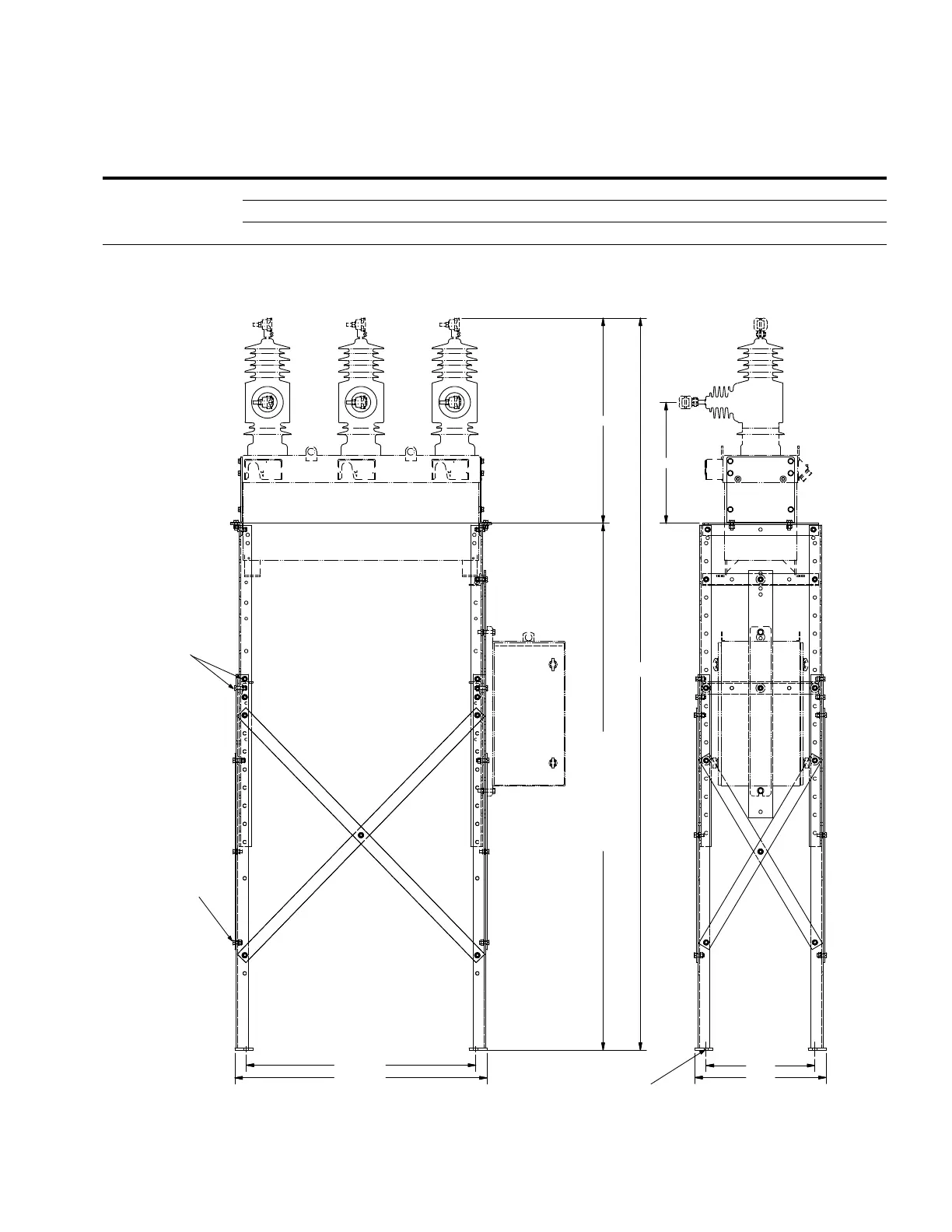

Figure 2. Substation mounting dimensions for NOVA STS recloser.
ote:N All dimensions are mm (inches). Dimensions shown are approximate.
UNIT TYPE Rating
A
(at minimum height) B C
NOVA STS Recloser 15 kV (110 kV BIL) 3124 (123) 908 (35.75) 508 (20)
27 kV (125 kV BIL) 3180 (125.25) 964 (38) 564 (22.25)
38 kV 3279 (129) 1063 (41.75) 663 (26)
965
(38)
C
B
A
1060
(41.75)
2216
(87.25)
adjustable to
2826
(111.25)
in
76 (3)
increments
457
(18)
552
(21.75)
19 (0.75)
Mounting Hole (4)
Step 1
Items 9, 13,
and 14
Step 1
Items 9, 13,
and 14
3
SUBSTATION FRAME KNOVA59-1 AND KNOVA59-3 ASSEMBLY AND INSTALLATION INSTRUCTIONS MN280043EN January 2016
