Short-cut keys
There are two types of short-cut keys which access specific
locations within the nested menu structure. Keys *1–*4
support the Metering-PLUS feature which provides, with
one touch, commonly requested diagnostic data; see
Figures 1–8 and 1–9. Keys 5–9 and 0 support Level 1 menu
items; press keys 5–9 and 0 and the associated Level 2
menu items will display in the LCD.
The Metering-PLUS data includes Compensated Voltage,
Load Voltage, Load Current, and Tap Position; refer to the
Advanced Features: Metering-PLUS section of this manual
for more information.
The Level 1 menu items include Settings, Features,
Counters, Metering, Alarms/Events (occurrences), and
Diagnostics.
Scroll keys
Use the scrolling arrows to move the cursor between
items within a menu level location. For example, within
the Level2 submenu for Metering, the arrows will scroll
the cursor through Instantaneous, Forward Demand,
Reverse Demand, and Master Reset, and then return to
Instantaneous.
The Enter and Escape keys are used to enter the menu
structure or move between menu levels. Enter is used
to access submenus. Escape is used to step back or exit
submenus. Repeated pressing of the Escape key will return
the display screen to the level one main menu. (A deeply
nested level location necessitates a greater number of
depressions.)
ote:N Only four line items appear on the display at one
time. Moving the cursor down from the fourth line
will shift the line items up one item at a time.

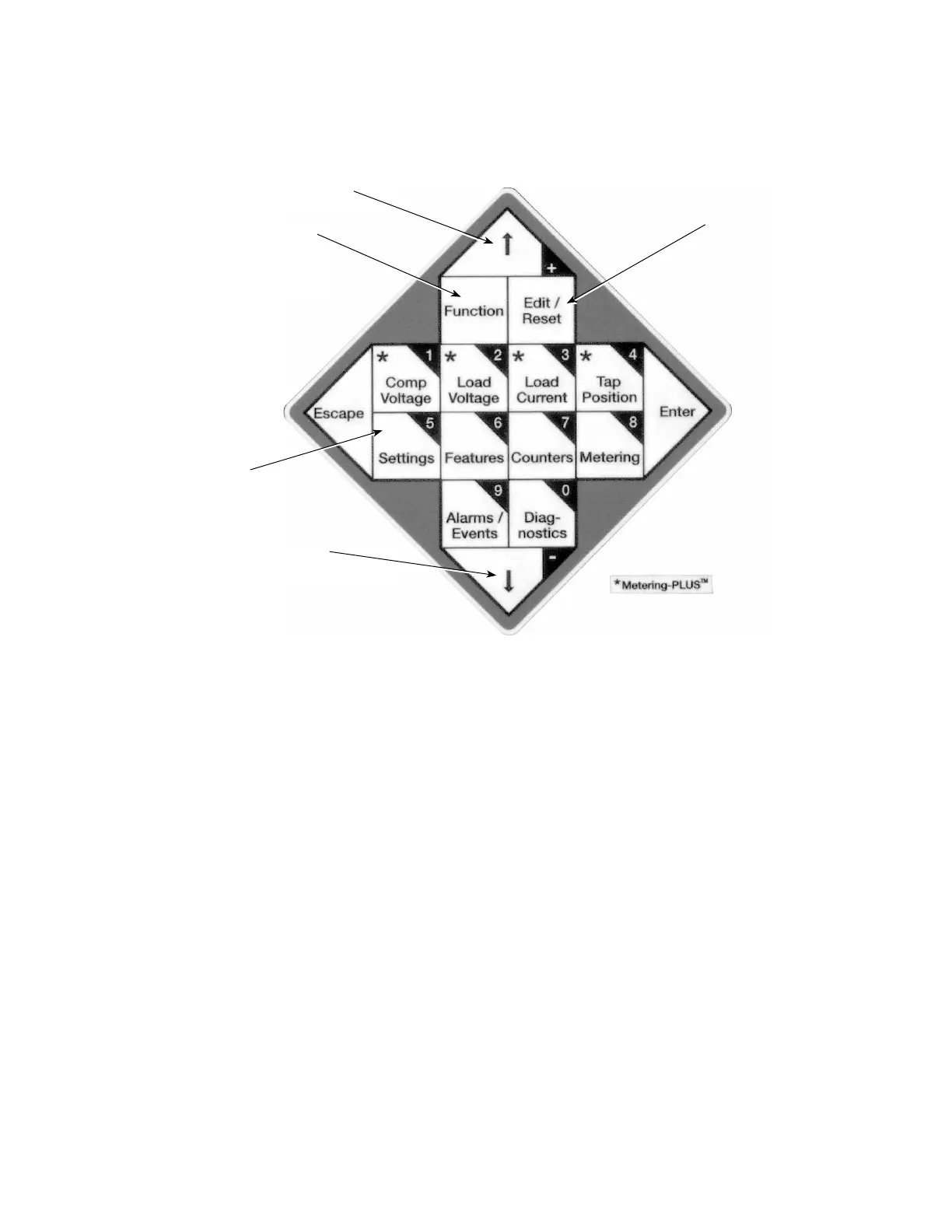

Figure 1-9. Fully numeric, scrollable keypad with Metering-PLUS.
Scroll Key
Scroll Key
Number Keys
Function Key
Edit Key
11
CL-6 SERIES CONTROL INSTALLATION, OPERATION, AND MAINTENANCE INSTRUCTIONS MN225016EN January 2016
