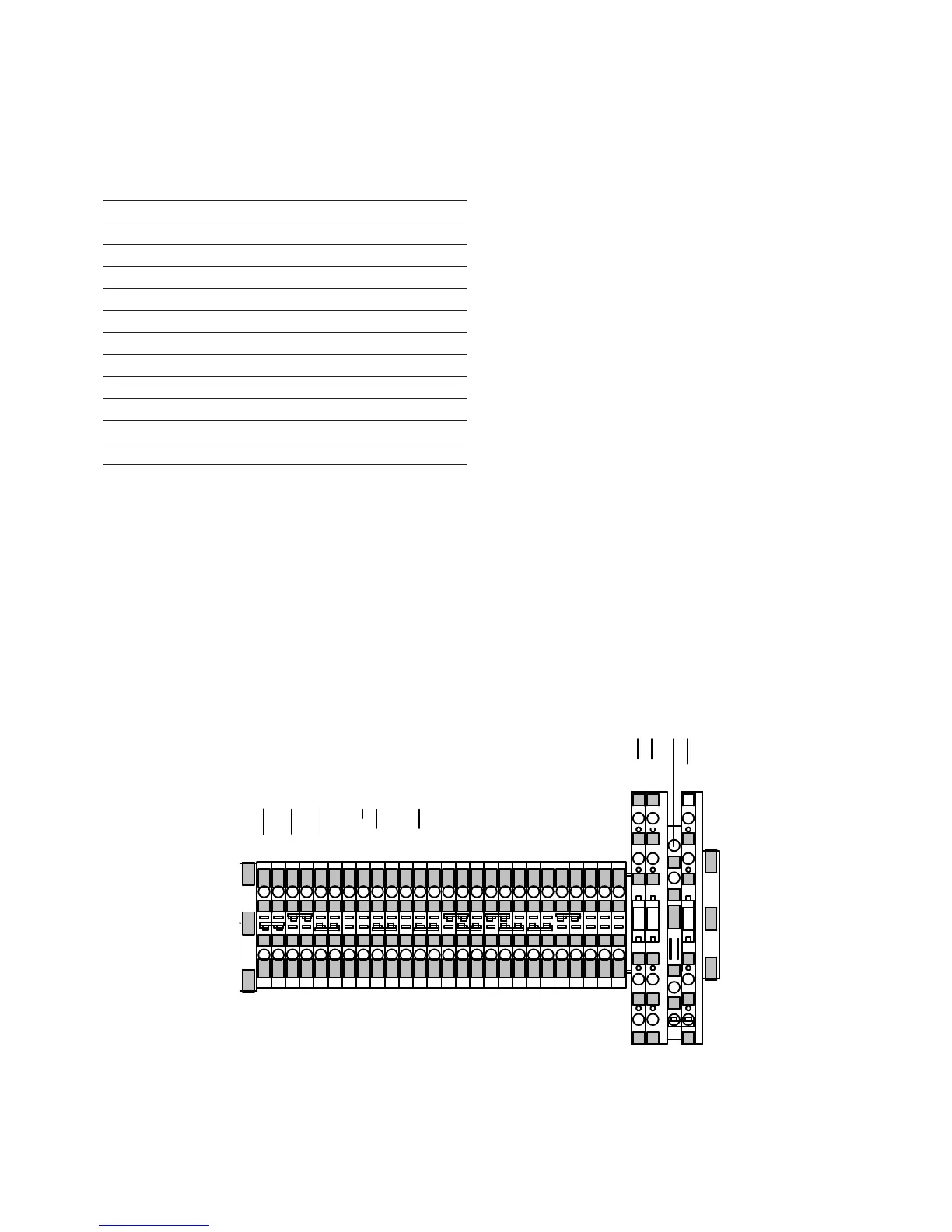

Figure 13. TB1 Eaton's connections.
(G) (R) (R) (L) (L) (OC) (DHR) (NL) (NL) (NL2) (HS) (HS) (#2) (G) (G) (#1) (V2) (V5) (V1) (V4) (C2) (C3) (20) (21) (23) (G)
(V6) (V1) (C)
White - Ground
Blue - Raise
Green/Black - Lower
Orange/Black - Drag Hand
Red/Black - Neutral Light
Orange - Holding Switch
White/Black - Source PT
Black - Load PT
Green - CT Positive
Red - CT Negative
Table 4. CRA Kit Connections for Eaton/McGraw
Edison Voltage Regulators
Connection Point Wire Color
V1 Black
G White
C (bottom) Red
C (top) Green
HS Orange
R1 Blue
V6 White/Black
NL Red/Black
L1 Green/Black
DHR Orange/Black
Motor Cap 1 Lt Blue/Black
Motor Cap 2 Black/White
17CL-7 control replacement assembly installation instructions and service information MN225017EN October 2016
