CH1
CH2:
Res.
Clear
Prog. 1 2
Day h m
+1h
18.40

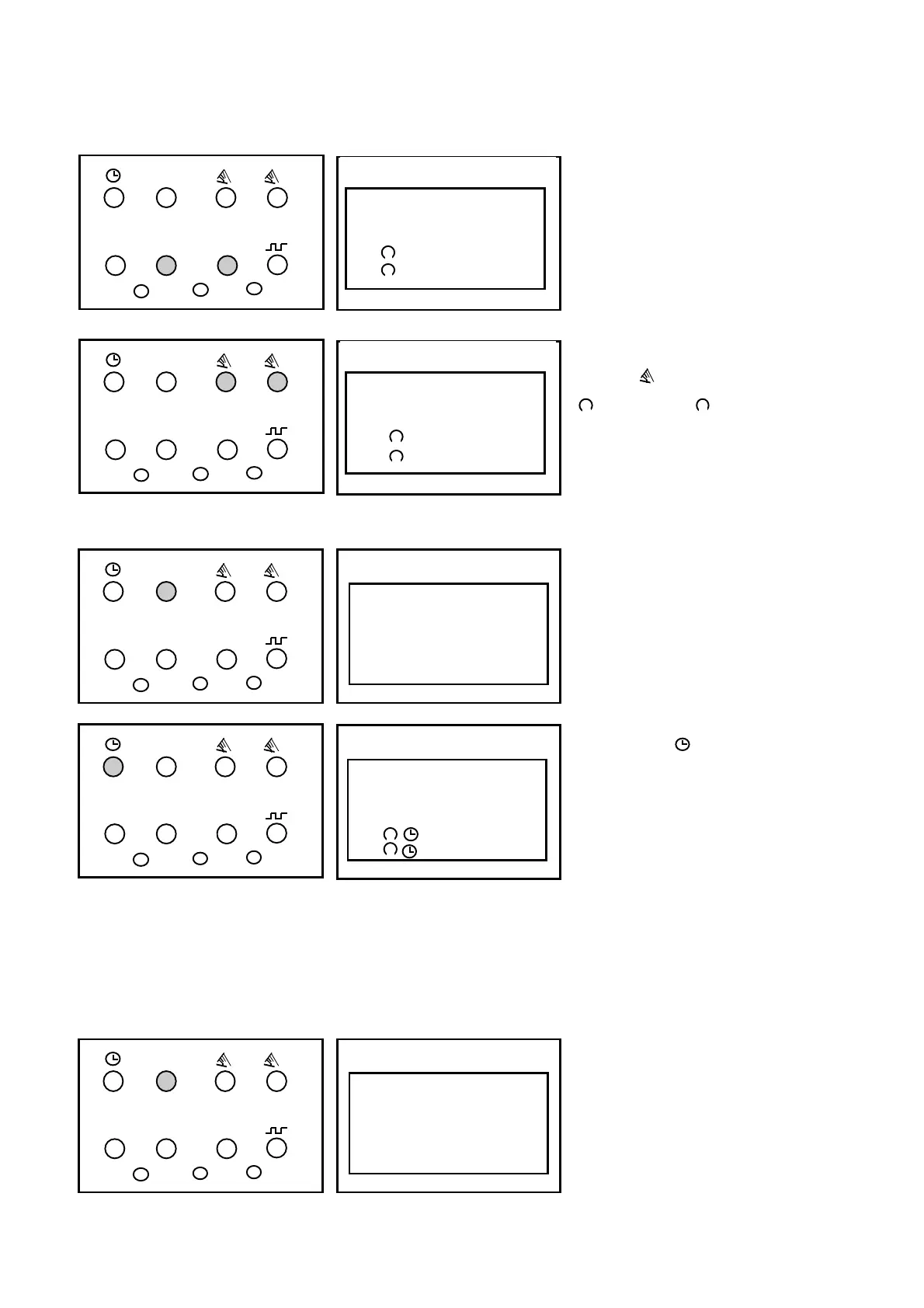

Set the switching times:
With the m key-minutes
With the h key-hours
For weekday adjustment, see:
Block formation of weekdays, Point 8.


  

1 2 3 4 5 6 7

CH1
CH2:
18.40
Res.
Clear
Prog. 1 2
Day h m
+1h


  

1 2 3 4 5 6 7
y
Set the switching state:
With the key
Note: The switching state for CH1
or CH2 can be deactivated.
No symbol-no switching.
y
(ON) or
(OFF)
1 2 3 4 5 6 7
- -:- -
Res.
Clear
Prog. 1 2
Day h m
+1h
Press the Prog key once. The input
has ended. A free memory location is
displayed-for other settings.
CH1
CH2:

Res.
Clear
Prog. 1 2
Day h m
+1h
1 2 3 4 5 6 7
18.40
+1h
y
Press the key once. The input is
ended.
The display shows the current time.
8. Fixed weekday block formation-only weekly time switch.
Defined combinations of weekdays or individual days.
You determine the weekdays for your switching program.
1-Monday, 2-Tuesday, 3-Wednesday…, 7-Sunday
Example: Monday .. Friday (8.00 ON; 22:00 OFF)
1 2 3 4 5 6 7
- -:- -
Res.
Clear
Prog. 1 2
Day h m
+1h
Select free memory location:
Press Prog key as often as necessary
until - -:-- appears
7. Standard switching commands cont.
Digital Quartz Timer Product Code: AT2P
