Eaton HCU2 Installation Manual

9
Instruction Booklet IB156002EN
Effective January 2022
Eaton HCU2/HCUn active harmonic
lter installation manual
EATON www.eaton.com

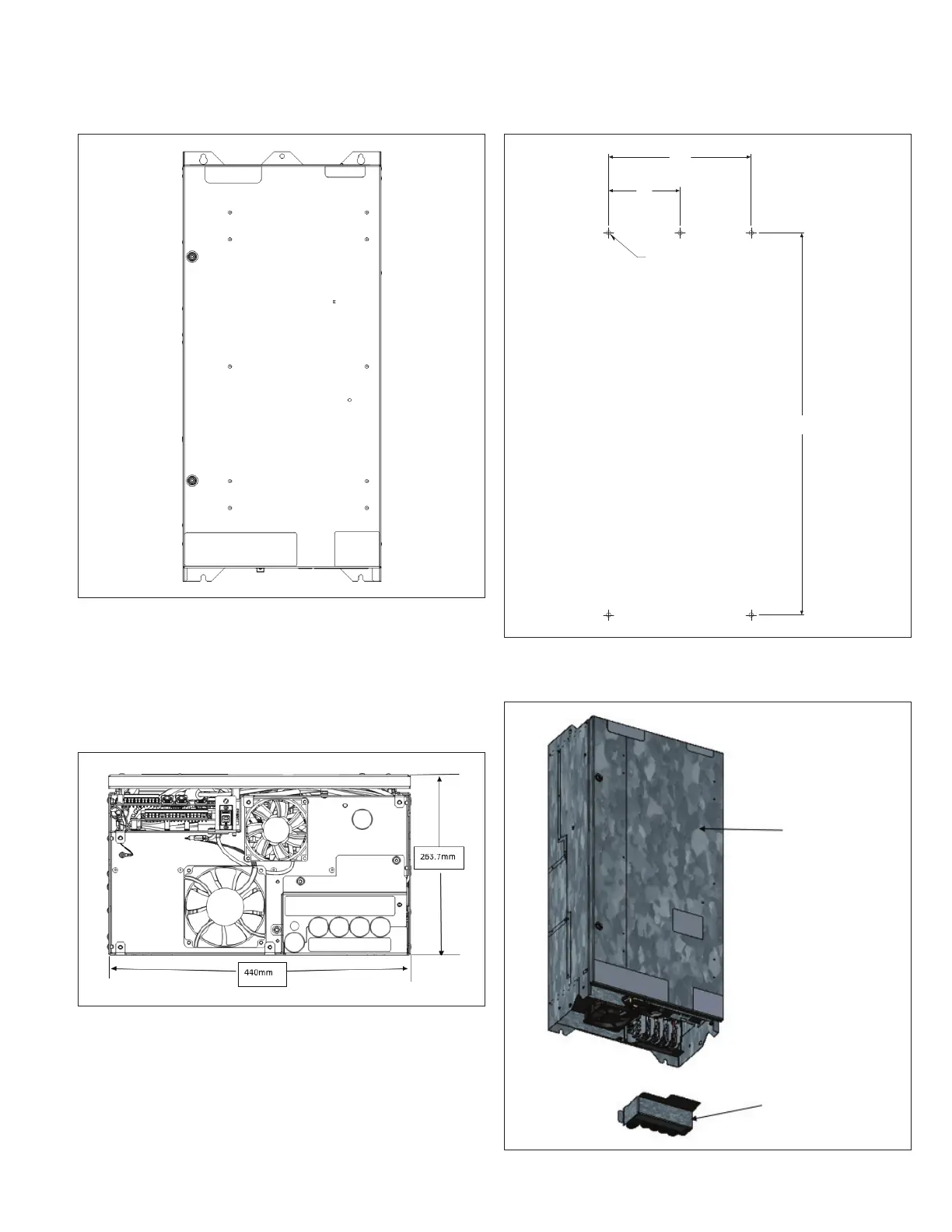

Figure 3. HCUn IP00 front view
•
Total height including mounting features 960 mm
•
Enclosure height 930 mm
•
Width 440 mm
•
Zero side clearance
•
Top and bottom clearance 200 mm each
Figure 4. HCUn bottom/air intake
Use M8 hardware to mount the unit in the enclosure. Mounting hole
layout is provided in Figure 6.
Figure 5. HCUn mounting hold dimensions (mm)
350
175
M8
940
Figure 6. HCUn wall mount main and expansion
electrical connections
Service door
Power cable cover
