Eaton HCU2 Installation Manual

8
Instruction Booklet IB156002EN
Effective January 2022
Eaton HCU2/HCUn active harmonic
lter installation manual
EATON www.eaton.com
Dimensional drawings
Refer to the drawings on the following pages for dimensions of the active filter to be installed.
Figure 1. HCUn UL Type 1 wall mount dimensions
•
Height 1440 mm
•
Width 450 mm
•
Depth 282 main unit
•
Depth 264 expansion unit (no HMI required)
•
Top and bottom clearance 200 mm

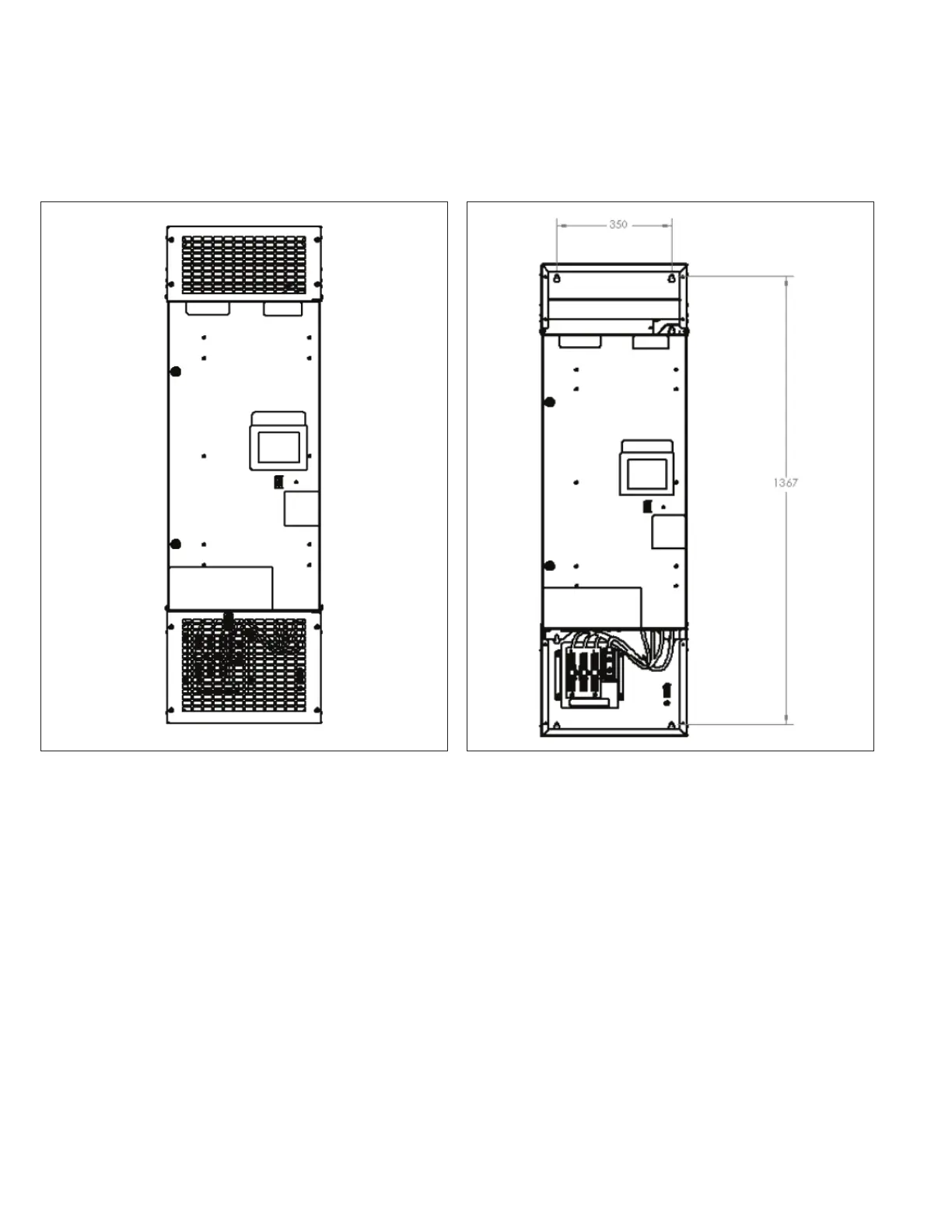

Figure 2. HCUn UL Type 1 mounting hole location
When installing the unit in locations that experience vibration or that
require additional mounting holes, it is recommended to use the
chassis mounting hole. Refer to Figure 5 for information on chassis
mounting hole location.
