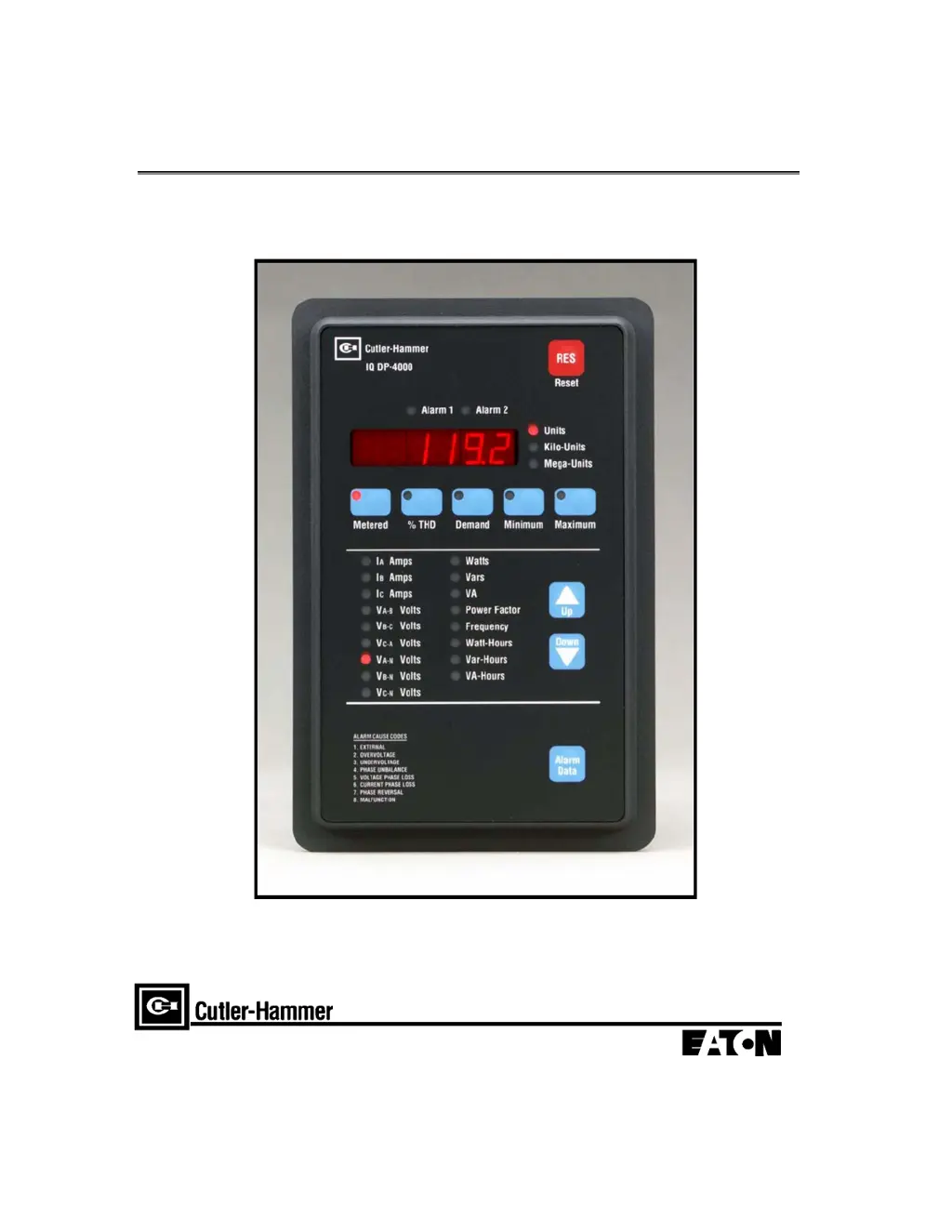

Eaton IQDP4130 User Manual (English)

Questions and Answers:

S
Stephanie HolmesAug 18, 2025
Why are all the operator panel indicators off on my Eaton IQDP4130 Monitor?
- K
  Kelly PriceAug 18, 2025
  The operator panel indicators might be off on your Eaton Monitor due to a deficient supply voltage level. Measure the supply voltage and locate the cause of the deficiency. If you are using a separate source or DC source power modules, the control power may be deficient. Locate the cause of the deficiency in the control power line; if the power is sufficient, replace the unit. It is also possible that the AC line, or optional external PTs, are not properly selected, wired, or installed. Verify that the AC line and/or PTs are wired as shown on the wiring plan drawings for the application.
J
Jessica DownsAug 21, 2025
What to do if digit 8 flashes in display window, indicating an internal malfunction on Eaton IQDP4130 Monitor?
- J
  Jason BennettAug 21, 2025
  If digit 8 flashes in the display window, indicating an internal malfunction on your Eaton Monitor, it means the device is detecting an internal malfunction or data is out of range. Try cycling the power. If the problem persists, replace the unit.
R
Randy SimsAug 23, 2025
Why are voltage and current readings incorrect and unstable on my Eaton IQDP4130 Monitor?
- C
  Christopher HartAug 23, 2025
  If both voltage and current readings are incorrect and unstable on your Eaton Monitor, the case is likely not grounded. Attach a ground wire to either the power module or DP4000 ground terminal.
R
Robert ScottAug 25, 2025
What does it mean if digit 5 flashes on my Eaton IQDP4130 Monitor?
- T
  Travis WrightAug 26, 2025
  If digit 5 flashes in the display window on your Eaton Monitor, it indicates a voltage phase loss. This could be due to an actual voltage phase loss condition, so isolate the cause of the AC line phase issue. Alternatively, check the fuses on the affected phase(s) for blown or loose fuses. Reseat the fuses or replace them if necessary.
C
Catherine AdamsAug 28, 2025
What to do if digit 2 flashes in the display window indicating an overvoltage on Eaton Monitor?
- J
  Jasmine RasmussenAug 28, 2025
  If digit 2 flashes in the display window, indicating an overvoltage on your Eaton Monitor, it means that the AC line, or optional external PTs, are not properly installed or wired. Verify that the AC line and PTs are installed and wired as shown on the wiring plan drawing for the application.
A
Alyssa MyersAug 30, 2025
What does it mean if digit 3 flashes in the display window, indicating an undervoltage on Eaton Monitor?
- A
  Amanda ParsonsAug 30, 2025
  If digit 3 flashes in the display window on your Eaton Monitor, it indicates an undervoltage. This means an undervoltage condition actually exists. Isolate the cause of the AC line deficiency.
D
Diane BlakeSep 1, 2025
Why are my power readings incorrect on my Eaton IQDP4130?
- W
  Wesley RubioSep 1, 2025
  If the power readings are incorrect on your Eaton Monitor, the phasing for voltage and current is likely incorrect. Check the phasing and verify the connections with the wiring diagrams.
M
madison35Sep 3, 2025
How to fix inaccurate or zero current readings on Eaton IQDP4130 Monitor?
- L
  Lisa FranklinSep 3, 2025
  If the current readings are not accurate or read zero on your Eaton Monitor, it may be due to incorrect size CTs being used. Replace them with the proper size CTs. Also, check the CT ratio to ensure it is correct.
C
Courtney NavarroSep 6, 2025
What to do if digit 4 flashes in the display window, indicating a phase unbalance on Eaton IQDP4130?
- D
  David AndersonSep 6, 2025
  If digit 4 flashes in the display window on your Eaton Monitor, it indicates a phase unbalance condition exists. Isolate the cause of the AC line deficiency.
R
Rickey WilliamsSep 8, 2025
How to troubleshoot digit 7 flashing in display window, indicating a phase reversal on Eaton Monitor?
- K
  Kayla PetersonSep 8, 2025
  If digit 7 flashes in the display window on your Eaton Monitor, it indicates a phase reversal condition. Isolate the cause of the AC line reversal. Check the utility to determine their phase sequence.
