Eaton SPD Series Instruction Leaflet

2
Instruction Leaet IL158006EN
Effective November 2020
PX-SPD quick start guide
EATON www.eaton.com

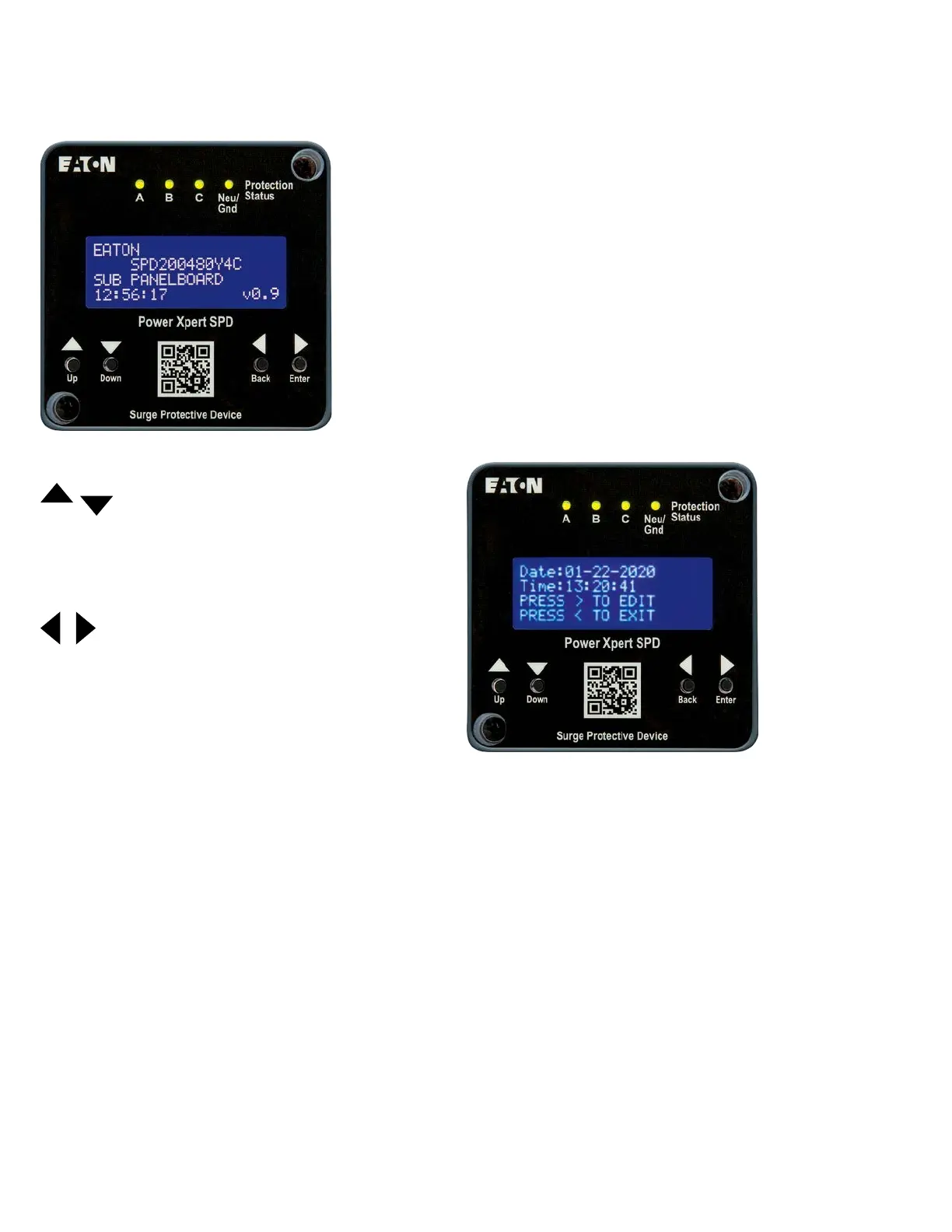

Configuring your LCD display
Up and Down buttons
Use these to move between options in the menu and select an
alphanumeric character where appropriate in the menus.
Back and Enter buttons
Use these to make menu selections, navigate to other menus, and
exit or edit/save your selection.
1. Apply power to the product.
2. Press the Enter button (>) to navigate from the home screen to
the next menu.
3. Select the Setting menu and press Enter.
a. Enter a 6-digit numeric password for the LCD
b. Use the Up and Down buttons to scroll through the numbers
c. Press Enter to skip to the next digit
d. Press Enter at the end of the 6th digit to save the password
4. Select Set Date and Time under the Settings menu and
press Enter.
a. Set the date and time using the navigation buttons
b. Scroll to the end of the seconds in time setting
row to save the date and time
Time will initially be read as UTC time on the webpage
and can be changed later through the webpage
5. Select Set Device Name under the Settings menu and
press Enter.
a. Use the Up and Down buttons to scroll through the
alphanumeric characters
b. Press enter to skip to the next character
There is a selection to enter a blank space; it is located
between the number 0 and character Z
ote: N You must enter a blank space in between words to separate them.
c. When finished entering the name and to save the results,
keep pressing the Enter button until the cursor reaches end
of the row, and then press the Enter (>) button one more
time to save the entry
