Instruction Leaet IL158006EN
Effective November 2020
PX-SPD quick start guide
EATON www.eaton.com
Communications setup
Configuration of Ethernet communication
Device default IP Address (192.168.1.254)
Connect Cat 5, or better, Ethernet cable between product and PC.
ote: N Configuring Modbus and BACnet/IP communication settings can be
found in the Instruction Manual.

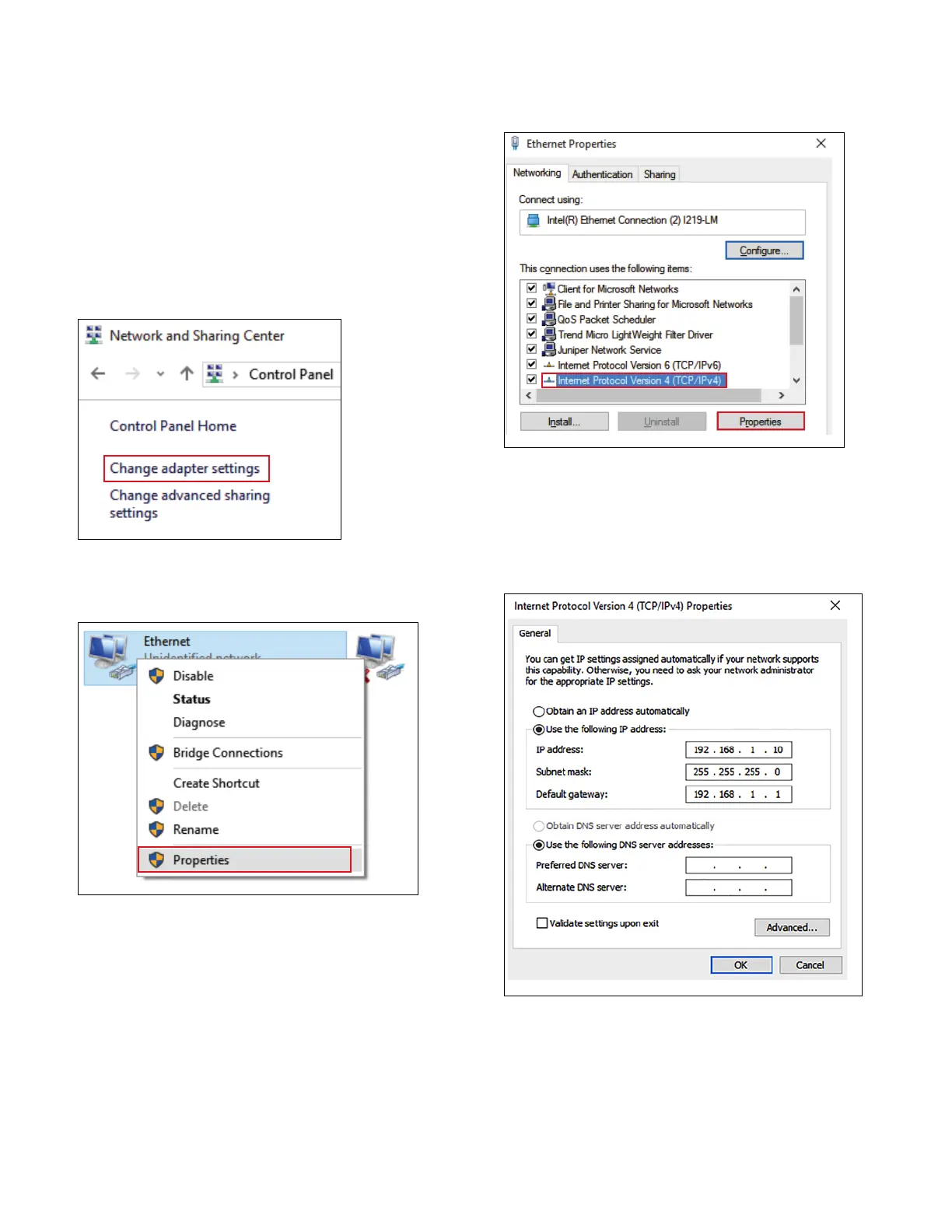

Changes to WindowsT PC Ethernet adapter settings for IPv4
1. Search for Change Adapter Settings in your Control Panel
Network Settings.
2. Right click on Local Area Connection.
3. Click on Properties.
4. Click on Internet Protocol Version 4 (TCP/IPv4).
5. Click on Properties.
6. On General Tab, select Use the Following IP Address:
a. Enter 192.168.1.10 for the IP Address
b. Enter 255.255.255.0 for the Subnet Mask
c. Enter 192.168.1.1 for Default Gateway
7. Click on OK button and then exit out of all these open windows.
ote: N Configuration of IPv4 was done with Windows 10 in this guide.

Eaton SPD Series Specifications

General

Type	Surge Protective Device
Voltage Rating	120/240V, 208Y/120V, 480Y/277V
Surge Current Capacity	Up to 200kA
Modes of Protection	L-N, L-G, N-G
Operating Frequency	50/60Hz
Certifications	UL 1449
SPD Type	Type 1, Type 2
Maximum Surge Current	Up to 200kA
Nominal Discharge Current (In)	10kA, 20kA
Short Circuit Current Rating (SCCR)	Up to 200kA
Enclosure Type	NEMA 1
Mounting	Panel Mount
Standards	UL 1449, IEEE C62.41
Diagnostics	Visual Indicators
Remote Monitoring	Optional
Maximum Discharge Current (Imax)	Up to 200kA
