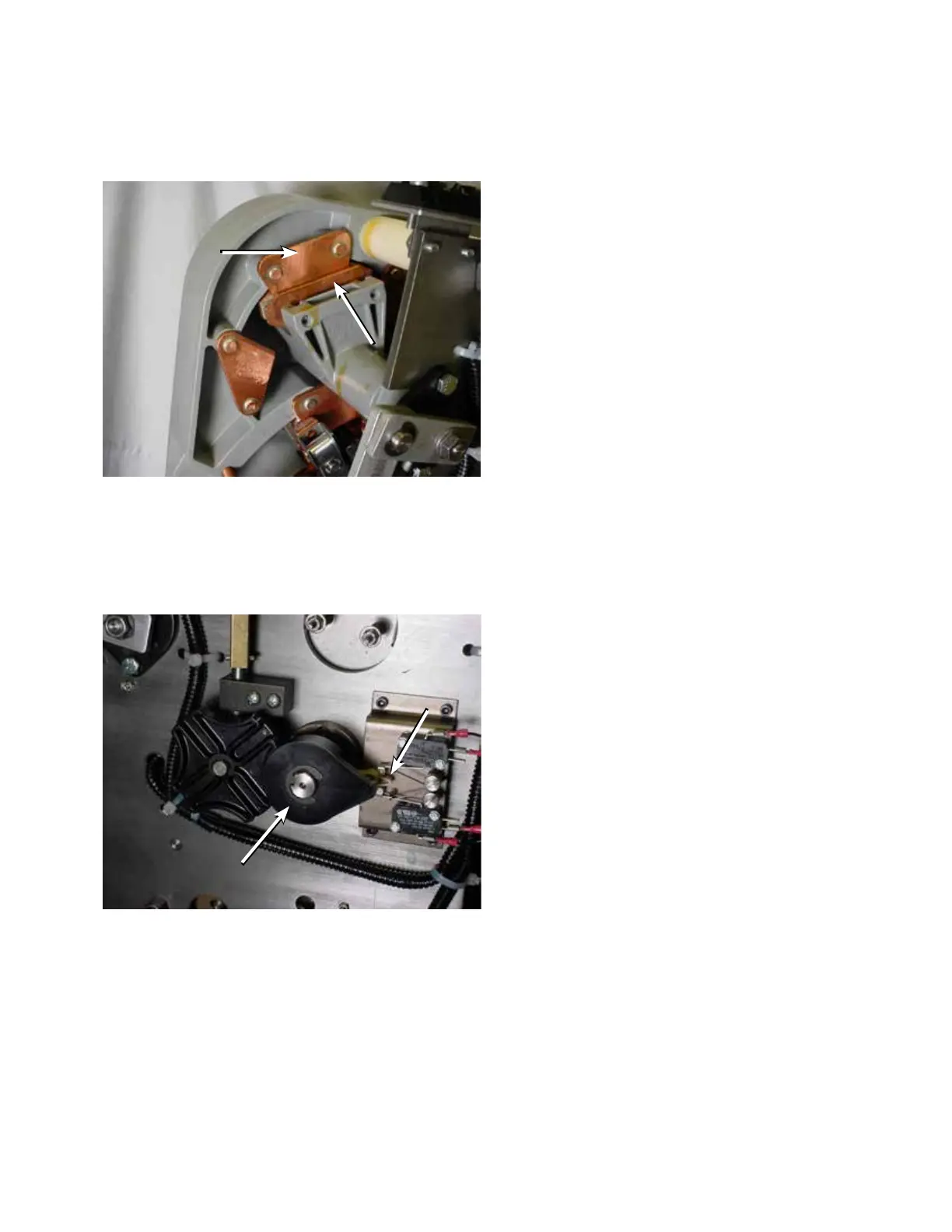

B. The reversing movable contact is located on the
reversing neutral stationary contact. See Figure75.
C. The pinion cam is pointing to the right over the
holding switch actuator. See Figure76.
Figure 75. Neutral position for reversing movable.
Reversing
Movable
Contact
Reversing
Neutral
Stationary
Contact
Figure 76. Neutral position for position indicator pinion
cam and holding switch.
Pinion Cam
Holding Switch
Actuator
29
QD5 QUIK-DRIVE TAP-CHANGER INSTALLATION AND MAINTENANCE INSTRUCTIONS MN225012EN March 2016
