Eau Flow 505 - Fitting Instructions; Important Installation details

EAU FLOW 505 FOR HELP & ADVICE, PLEASE EMAIL technical@cleancert.co.uk OR CALL 08443 511115
A
C1
B
M
I1
I2
D
D
E
G
F
C2
I3
I4
K
J
C3
H
L

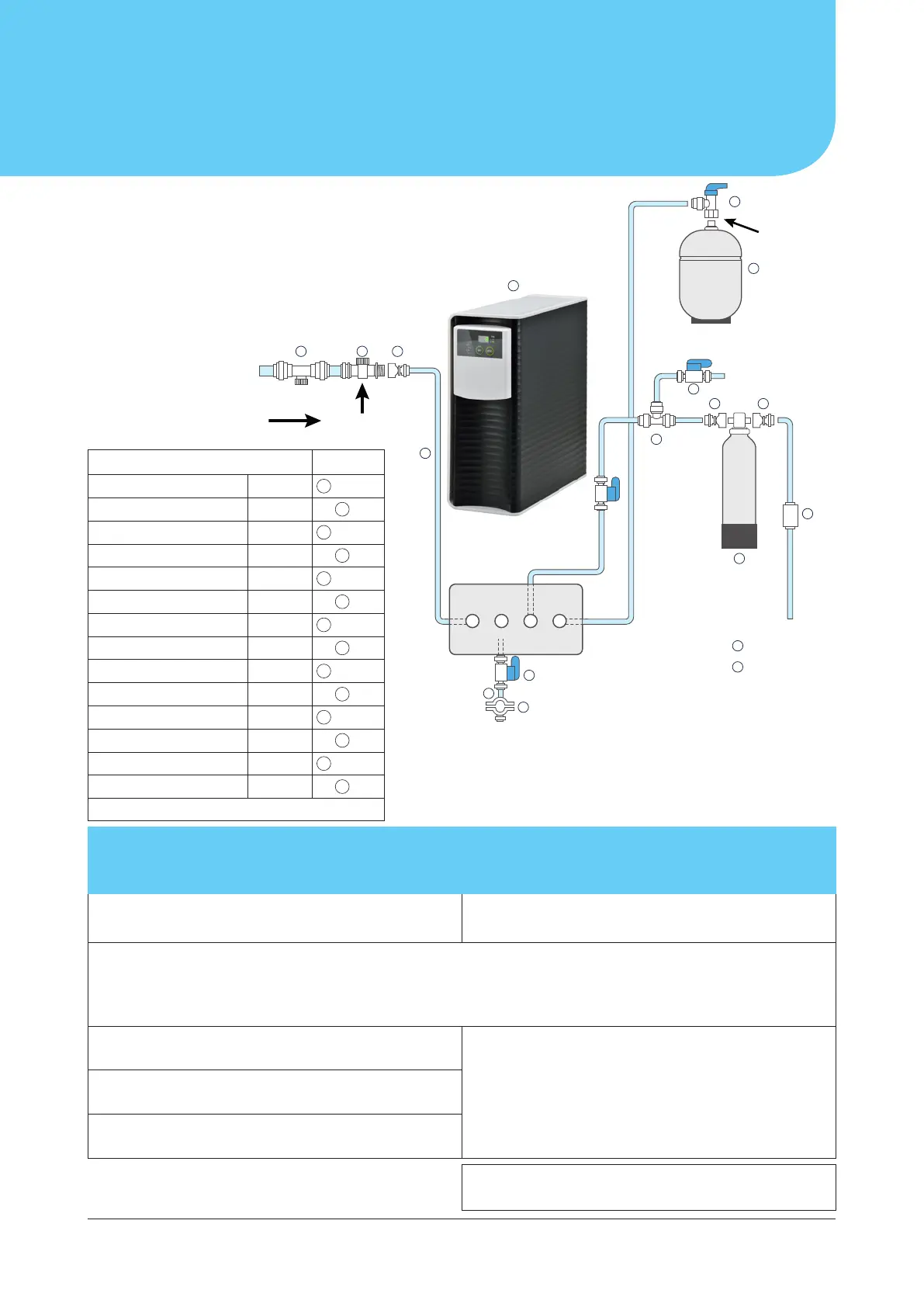

Connection Diagram
Inlet Drain Faucet Tank
From
Mains
Waste Tap
or
Valve
Tank
15mm mains
water feed
OUT
Counter-top Tap
OR
Dispensing Valve
Testing point
Testing point
PTFE tape!
End of Day
Isolation Tap
**
Testing
point
N N N N
Eau Flow 505
(Medium/Hard Water)
Reverse Osmosis Unit
Fitting Instructions
(Supplier Code:
EY5505 HW)
Supplier codes (see fitting instructions)
Dispatched
A) Non return valve EY20110
B) Appliance tap EY20111
C) ¾” to ¼” BSP (x3) EY20112
D) ¼”(6.2mm) tube - 10m EY20008
E) RO unit EY5505HW
F) Tank ball valve EY20127
G) Storage tank (12L) EYST12
H) ¼” T-Piece Push-fit
EY20123
I) Dispensing valve (x4) EY20006
J) Deioniser cartridge EY30810
K) Counter-top tap EY20300
L) TDS meter (Inline) EY20155
M) Drain saddle valve EY20065
N) RO Connector Elbows (x4) EY20124
Total Components = 22
Important Installation details
Warranty not valid if the following details are not returned to technical@cleancert.co.uk
Installation date: Serial number:
(back of unit)
Engineers name and contact details:
Practice name: Has the ‘Basic maintenance’ training been explained to staff?
(Details)
Practice phone:
Practice email:
Purchase Order no:
