EAW DX1208 Help File

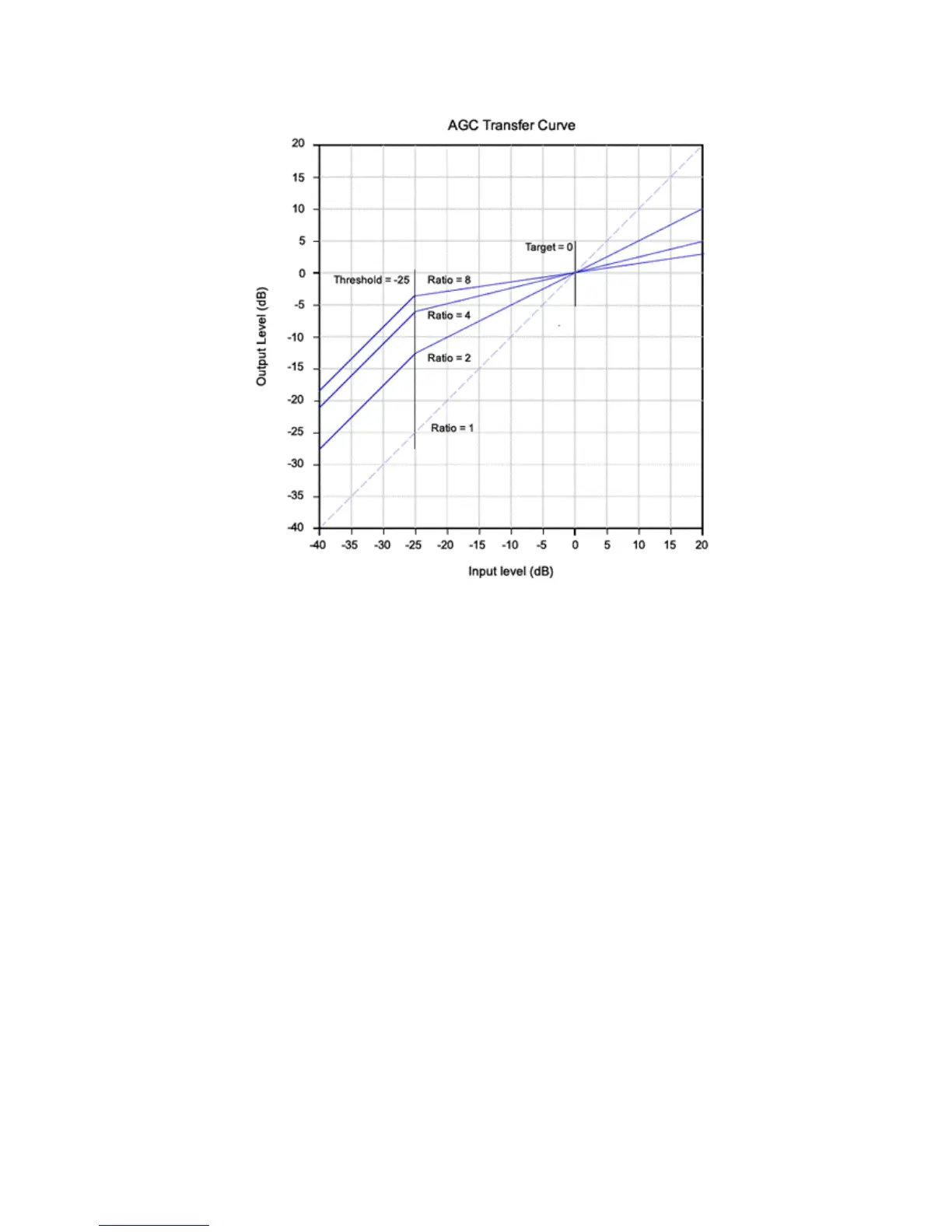

In practice the Ratio determines how aggressively the AGC tries to drive
the output volume toward the Target.
• AGC Enable Toggles the process between Compressor and AGC operation.
• Bypass Compressor Bypasses the AGC without changing the AGC’s settings.
EQ
Description
Each of the twelve DX1208 Input Channels is equipped with a fully-configurable six-band EQ,
which occurs in between the Compressor and the Ducker in the DX1208 signal chain. Each
EQ band can configured as a parametric, high/low pass, or shelving filter, and can be
individually enabled or disabled.
Parameters
• Selected Determines which Filter the Type, Frequency, Gain, BW/Q, and
Bypass Filter settings apply to.
• Type Sets the Filter type of the Selected filter from amongst the
following choices: [Parametric], [6dB Low shelf], [6dB High Shelf],
[12dB Low Shelf], [12dB High Shelf], [12dB Low Pass], [12dB
High Pass.]
• Frequency Sets the Frequency center of the Selected Filter. Frequency
values range from [20 Hz] to [20 kHz].
28
