assigned to the Matrix with or without automixing applied. The Matrix Mixer and the Automixer

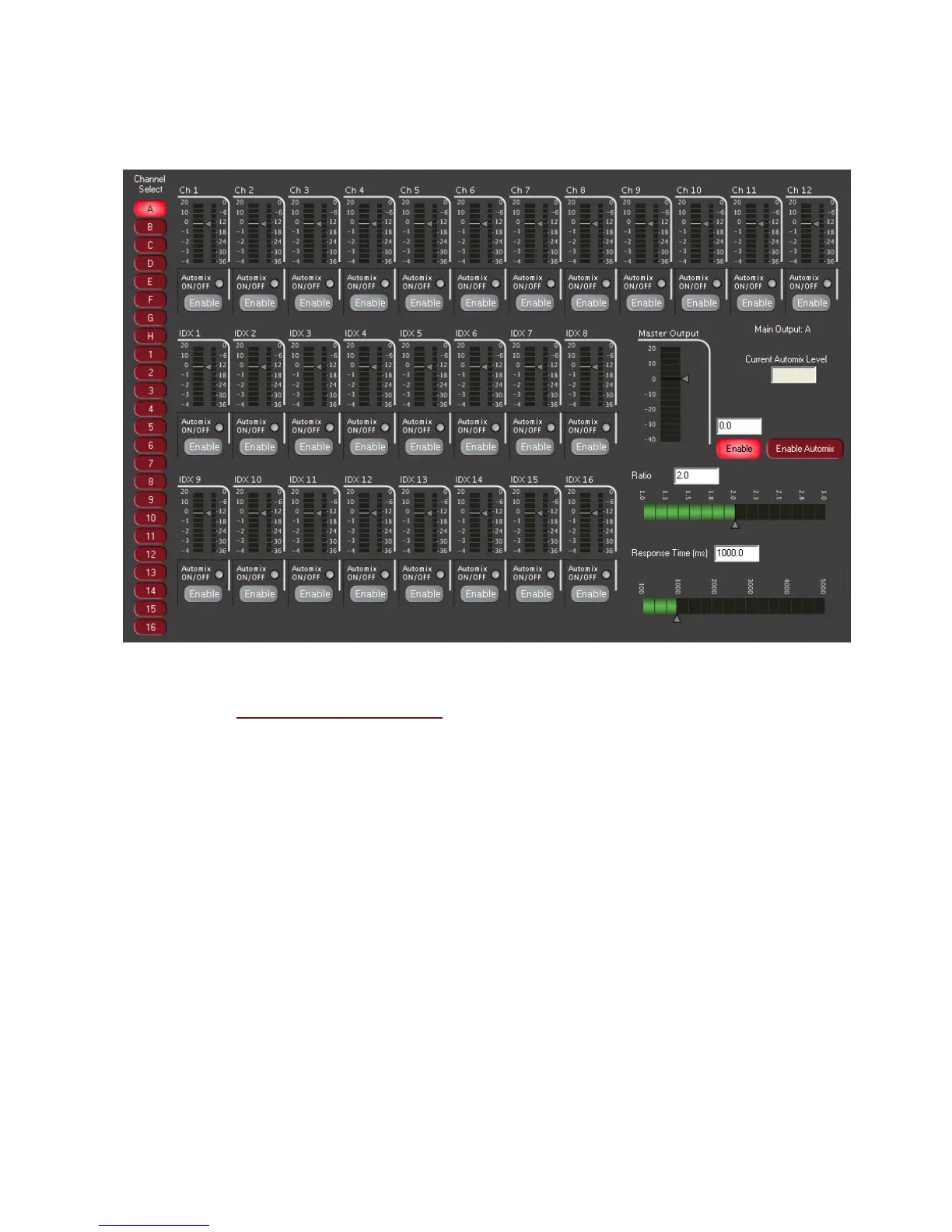

controls both share the Automix tab, as shown below.
Signals arrive at the Matrix inputs post-Ducker and are seen immediately by the channel
Meters before being routed through the Enable switch and the Fader (see the signal flow
diagram in the DX1208 Instruction Manual). The Input Channnel Fader controls the input’s
gain to both the Matrix Master Output, and the Automixer input (if Automix is [On]). All
[Enabled] input channels are then summed before being routed to the Master Output Enable
switch and Fader. The Master Output Meter is post-Fader.
Typical uses for a matrix mixer include creating independent mixes of the same source
material for different areas, or zones, within a facility. When combined with automixing, a
matrix mixer may be used to setup mixes for clusters of speakers in which open microphones
in close proximity to the cluster(s) are lower in volume than in those clusters which are farthest
away from the microphones, as in a boardroom or conference facility.
Input Channel Parameters
• Enable Assigns the Input Channel to the selected Matrix Output. When a
channel is [Disabled], none of that channel’s signal is routed to the
output, regardless of the channel Fader setting, and regardless of
whether Automix is [On].
• Fader / Gain Controls the gain of the Input Channel to both the Matrix Mixer
and the Automixer. Adjust the gain by dragging the fader handle
(from [+20] to [-39 dB]). <
CTRL+CLICK> in the channel Meter to
reset the Fader to unity.
