EAW DX1208 Help File

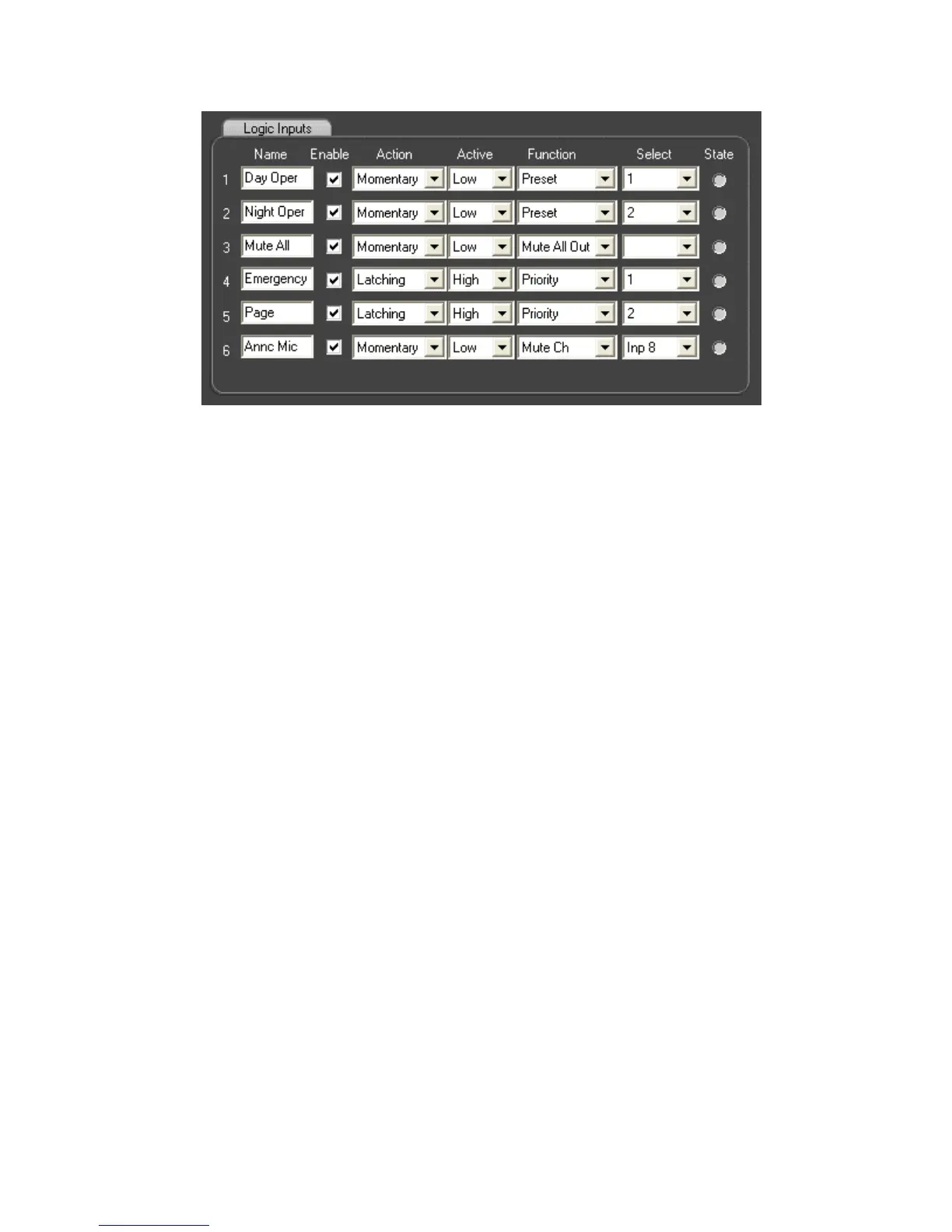

Parameters
• Name Each Logic Input can be given a Name to identify its function or
location.
• Enable When Enable is checked, a Logic Input can trigger the action
defined by the Function setting.
• State When the Logic Input meets the condition determined by the
Active setting, the Logic Input becomes TRUE, and when it does
not meet the condition it becomes FALSE. However, how the
Function is activated or deactivated depends on whether the
Action is [Latching] or [Momentary]. The State indicator lights
when the Function is active, rather than when the Logic Input is
TRUE.
• Action The Action setting determines whether the input remains active
after the trigger signal becomes FALSE.
[Momentary] With [Momentary] inputs the Function is activated
when the input is TRUE, and deactivated when the
input is FALSE.
[Latching] With [Latching] inputs the Function is activated when
the input becomes TRUE, and deactivated when the
input becomes FALSE and then TRUE a second
time.
• Active Defines the logic state required to trigger the logic Function.
[Low] The Function is triggered when the Logic Input sees
a high-to-low transition.
[High] The Function is triggered when the Logic Input sees
a low-to-high transition.
• Function Defines which DX1208 parameter(s) the Logic Input controls.
[None] Disables the Logic Input. Does the same thing as
unchecking the Enable setting.
