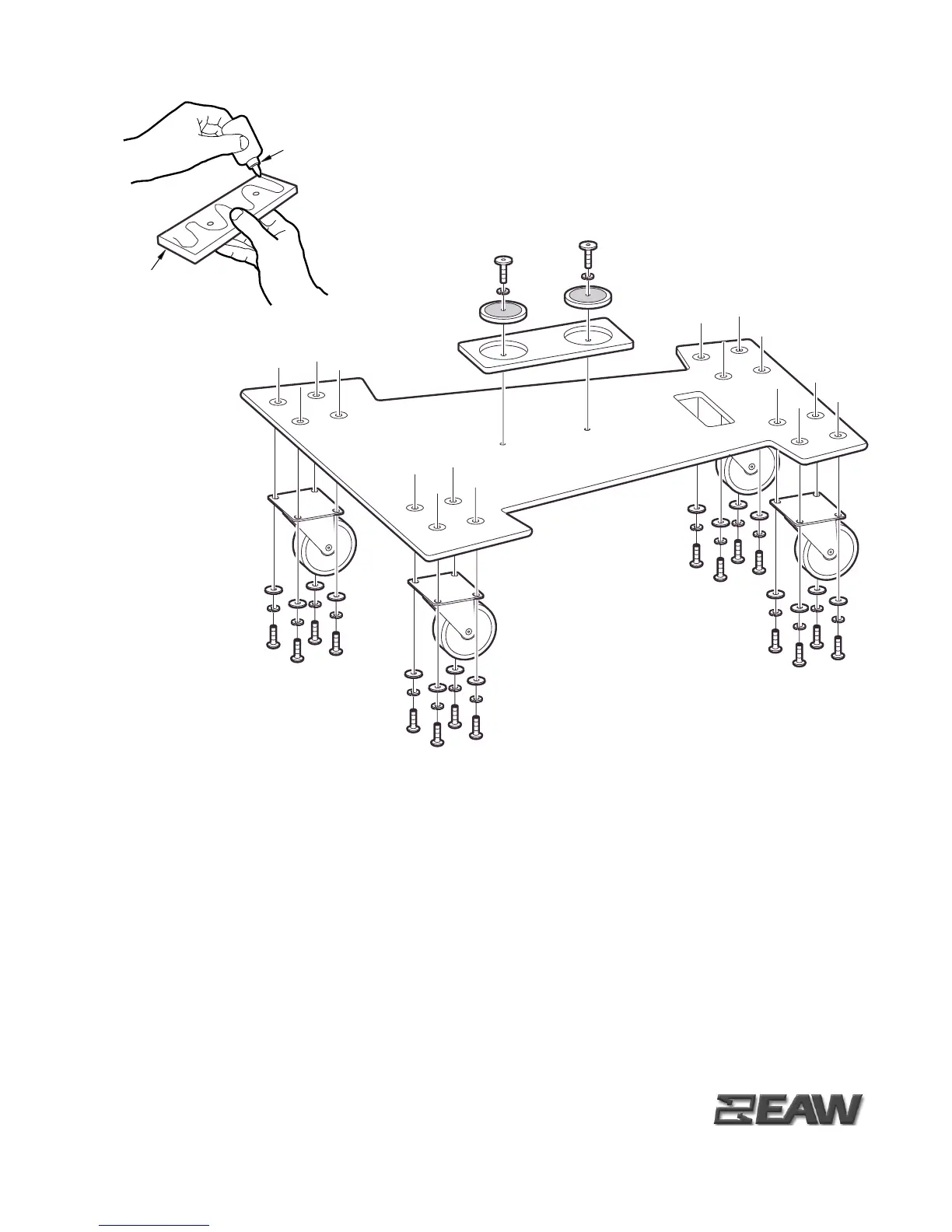

7. Place the Magnet Block, flat side against the wood, aligning its holes with those previously drilled in the platform.
Place the two magnets, metal side facing down and magnet material facing up, into the recesses in the Magnet Block.
8. Attach the Magnets and Magnet Block with two “E” screws and two lock washers.
9. Attach the four casters using four “D” screws, lock washers, and flat washers for each.
10. Firmly tighten all eighteen screws.
6. Apply wood glue to the flat side of the Magnet Block.
If you have any questions about making the KF850z Caster Pallet, please contact the EAW Application Support Group
for assistance:
EAW ASG Tel 800-992-5013 (USA only)
One Main Street Tel 508-234-6158
Whitinsville, MA 01588 USA Fax 508-234-3776
E-mail asg @eaw.com
