EAW SB2001 - Page 3

10 100 1000 20000
20
10
0
-10
-20
-30
-40
10 100 1000 20000
100
m 10
1

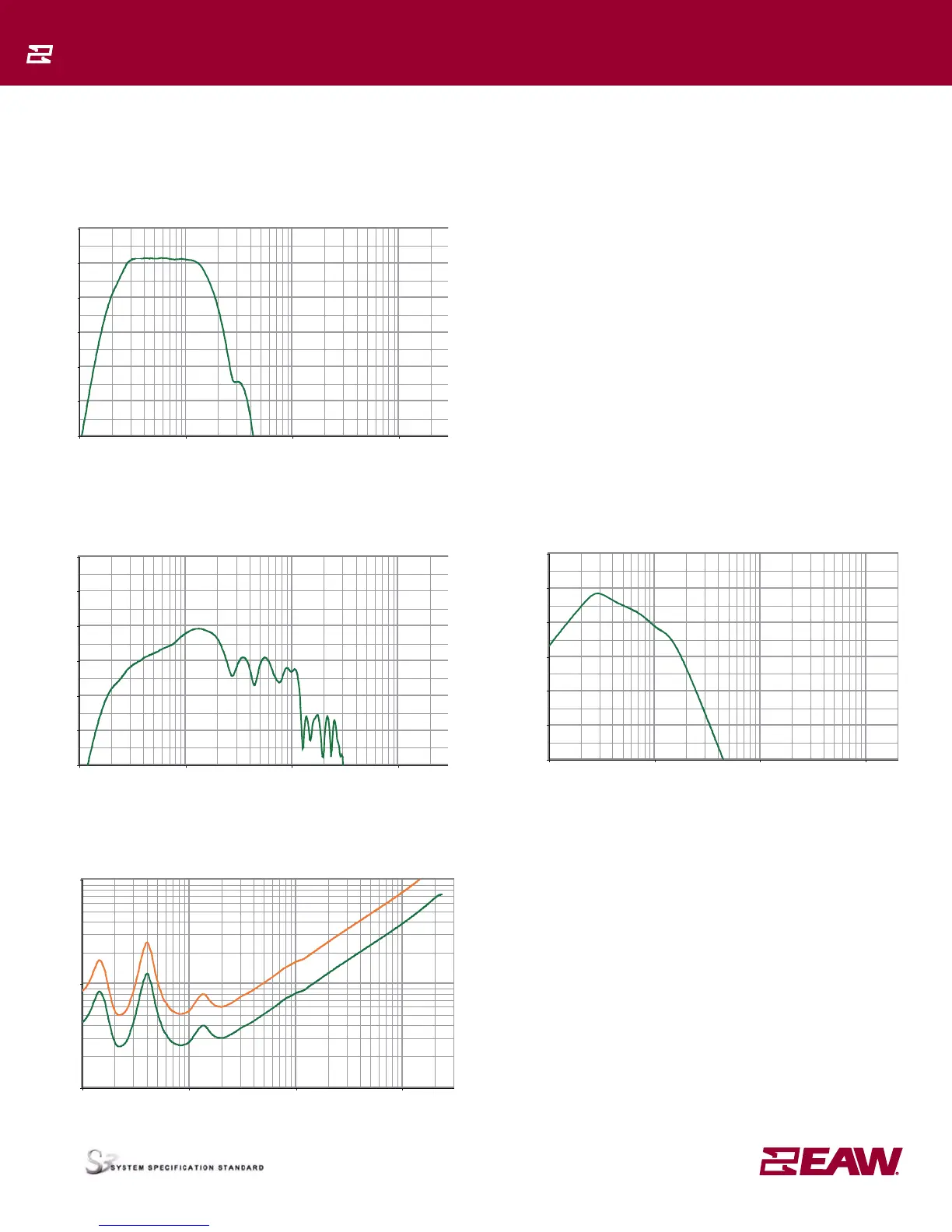

PERFORMANCE DATA
See NOTES GRAPHIC DATA for details
Frequency Response: Unprocessed
LF 1/2 Whole Space = green
Frequency Response: Processed
LF 1/2 Whole Space = green
Frequency Response: Digital Signal Processor
LF = green
Impedance Magnitude
LF 1/2 = green, LF 1, LF 2 (each) = orange
SPL (dB)
10 100 1000 20000
120
110
100
90
80
70
60
Frequency (Hz) Frequency (Hz)
SPL (dB)
dB re 0.775 V rms
10
0
-10
-20
-30
-40
-50
10 100 1000 20000
Frequency (Hz)
Ohms
Frequency (Hz)
SB2001 Specifications group • S
Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel 800 992 5013 / 508 234 6158 • fax 508 234 8251 • www.eaw.com
March 2010Part Number: RD0508 (D) SB2001 SPECEAW products are continually improved. All speci cations are therefore subject to change without notice.
