Acoustic Performance Partnership Eastern Acoustic Works SM155e
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • Web http://www.eaw.com • email info@eaw.com
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
TECHNICAL SPECIFICATIONS SM155e

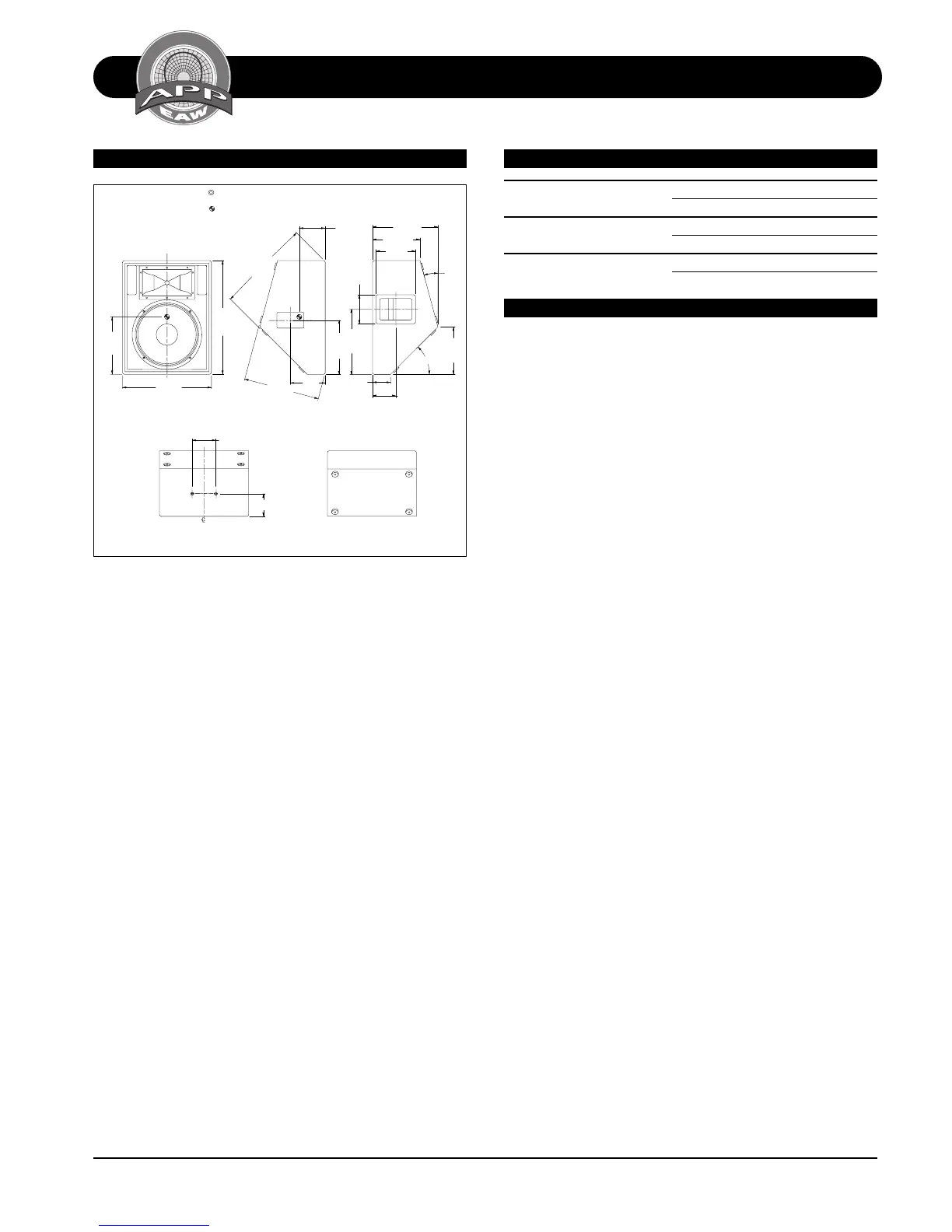

DIMENSIONAL DRAWINGS
DIMENSIONAL DRAWING SERVICE ITEMS
LF: Complete Cone Driver
EAW Part No. 804071
HF: Complete Compression Driver/Tweeter
EAW Part No. 803020
Filter/Crossover Network: Complete Assembly
EAW Part No. 225198
ARCHITECTURAL SPECIFICATIONS
The two-way full range loudspeaker systems shall incorpo-
rate a 15-in LF transducer and a 1-in exit compression HF
transducer.
The LF driver shall be mounted in a vented enclosure tuned
for optimum low frequency response. The HF driver shall be
loaded on a constant directivity horn with a nominal cover-
age pattern of 90° (h) x 45° (v). An internal passive filter
network shall provide fourth order acoustical crossover and
system equalization.
System frequency response shall vary no more than ±3 dB
from 70 Hz to 17 kHz measured on axis. The loudspeaker
shall produce a Sound Pressure Level (SPL) of 98 dB SPL on
axis at 1 meter with a power input of 1 Watt, and shall be
capable of producing a peak output of 130.8 SPL on axis at
1 meter. The loudspeaker shall handle 480 Watts of amplifier
power (AES Standard) and shall have a nominal impedance
of 8 Ohms.
The loudspeaker enclosure shall be irregularly trapezoidal in
shape and shall have rubber footpads on two sides allowing
its baffle to be angled up 45° or 15°. It shall be constructed
of 15mm thickness void-free cross-grain-laminated Baltic
birch plywood and shall employ extensive internal bracing.
It shall be finished in black catalyzed polyurethane. Input
connectors shall be dual Neutrik NL4 Speakon. Two 5/8"-18
threaded mounting/suspension points shall be provided on
top configured to accept an external Ultimate Brand
standmount adapter. A midrange frequency attenuating pres-
ence control shall be provided. The front of the loudspeaker
shall be covered with a vinyl coated perforated steel grill
backed with open cell foam to protect against dust.
The two-way full range loudspeaker shall be the EAW model
SM155e.
15°
6.44
8.75
14.50
(10.55)
5.00
(4.00)
20.78
5.75
16.89
12.00
7.71
14.44
25.25
45°
5.15
10.50
19.75
5.25
BOTTOM
TOP
12.75
SM155e
510298
EXP 3/9/97 SHB
3/8"-16 MOUNTING POINTS.
ALL DIMENSIONS IN INCHES UNLESS OTHERWISE NOTED.
CENTER OF GRAVITY.
CABINET SYMETRICAL ABOUT ITS CENTER LINES.
FRONT
LEFT SIDE RIGHT SIDE
