- 29 -
2.
4.
3.
1.
2.
3.

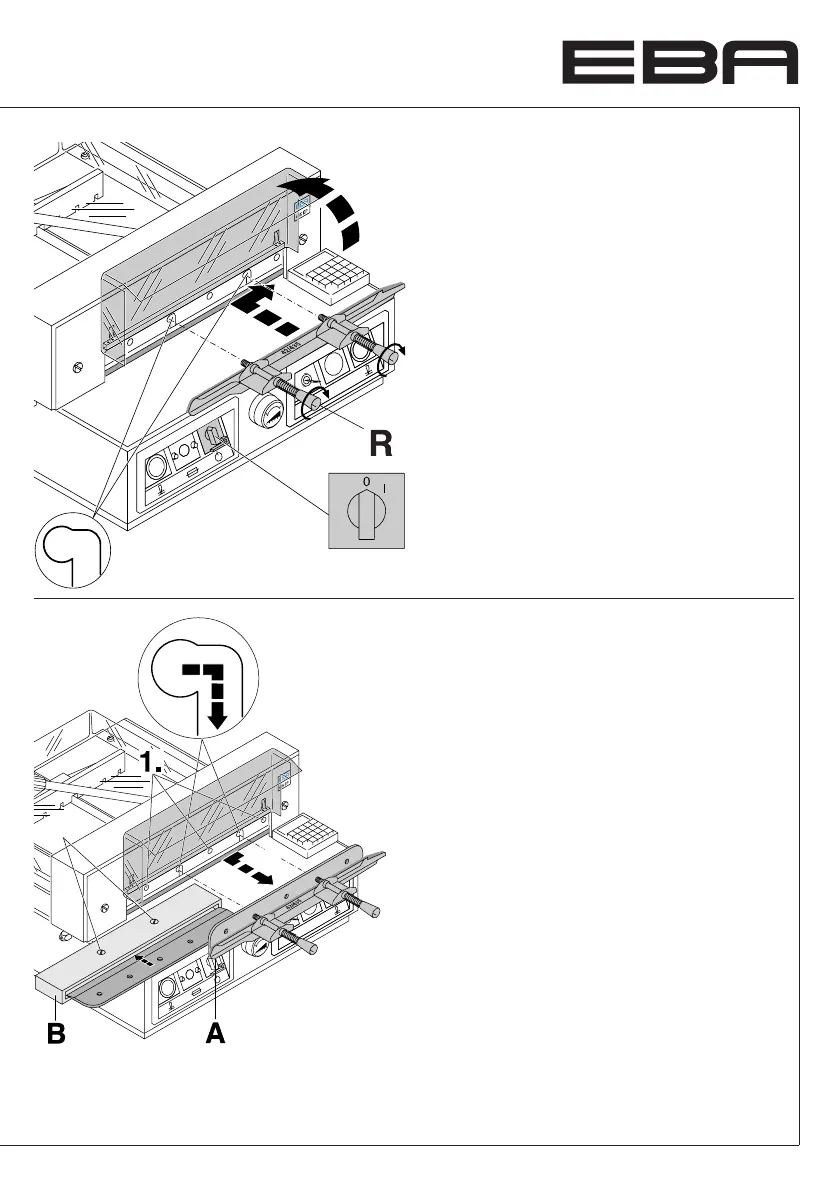

Remove the remaining 3 screws (1.).
Push the blade and blade changing tool (A) to
the right and lower to remove (2.)
Place the blade into the blade carrier (B)
and screw it into place (3.).
•
Blade and cutting stick replacement
•
Position the main switch to "0" (1.)
Open the safety guard (2.). Remove the 2 blade
screws on the elongated holes (3.). Then put
the blade changing tool into place and fasten
it to the blade (4.).
