3 TECHNICAL SPECIFICATIONS
3.1 Scope of delivery
• Supernode
• Removable screw connector kit for Supernode
• BACnet, Ethernet serial card
3.2 Mechanical specifictions
• Assembly DIN rail
3.3 Plastic Case
• Fitted on DIN rail as per DIN 43880 and IEC EN 50022
• Material: technopolymer
• Flame retardance: V0 (UL94) and 960 °C (IEC 695)
• Ball pressure test 125 °C
• Resistance to creeping current ≥ 250 V
3.4 Electrical specifications
Isolated power supply DC power supply: 48 VDC (36 V minimum to 72 V maximum)
AC power supply: 24 VAC +10% to -15 %, 50/60 Hz
Maximum power input: P= 6 W, S= 8 VA
CPU H8SX/1651 32-bit, 50 MHz
FLASH program memory 2+2 Mbytes
SRAM data memory 512 kBytes, 16-bit
Parameter data memory 13 kBytes + additional 32 kB EEPROM
NAND FLASH memory 32 Mbytes
Duration of working cycle 0.2 s typical (applications of average complexity)
Clock Available as standard and integrated on main board with CR2430 3 VDC lithium battery
Terminal block male/female plug-in connectors, max voltage 250 VAC;
Cable size: min 0.5 mm ² – max 2.5 mm ²

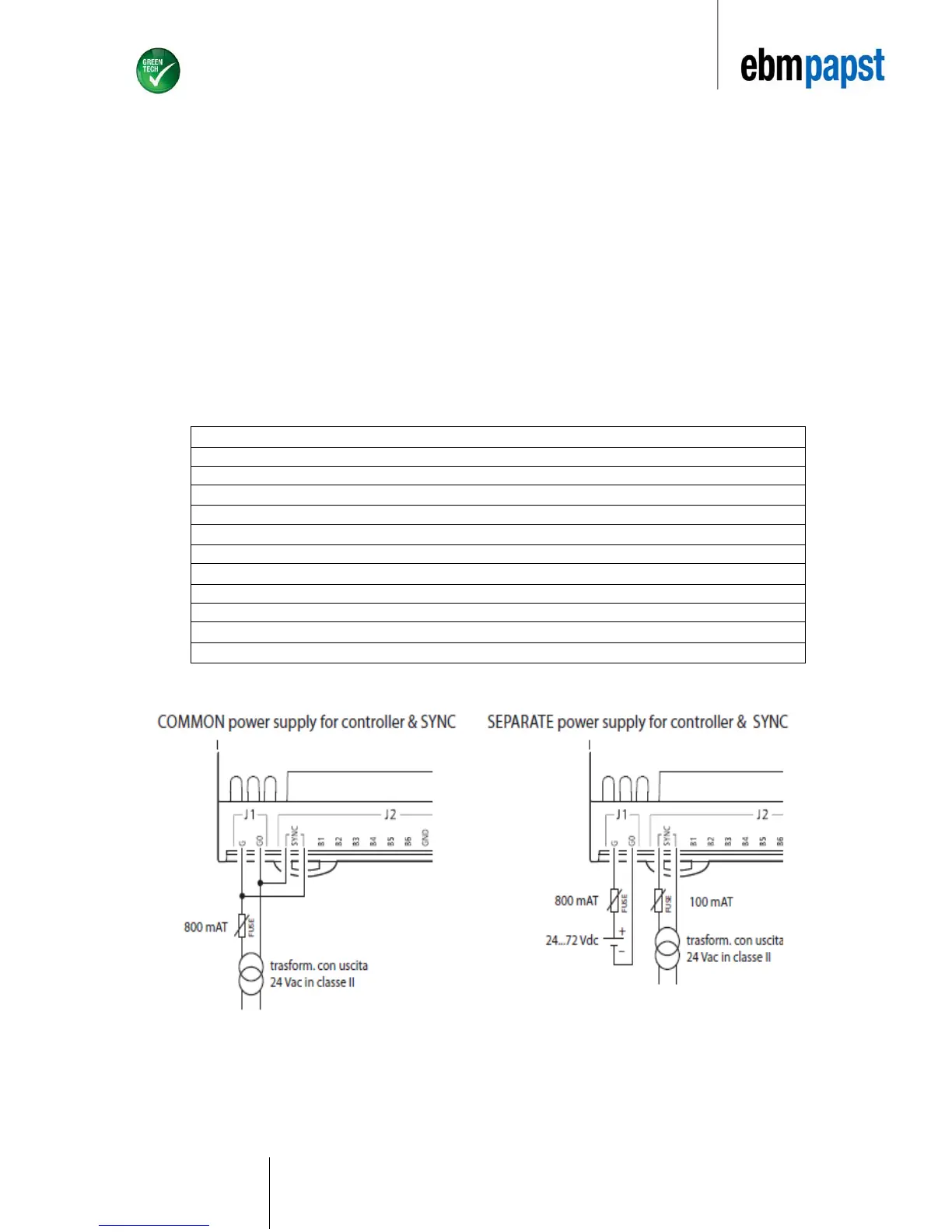

3.5 Electrical connection
