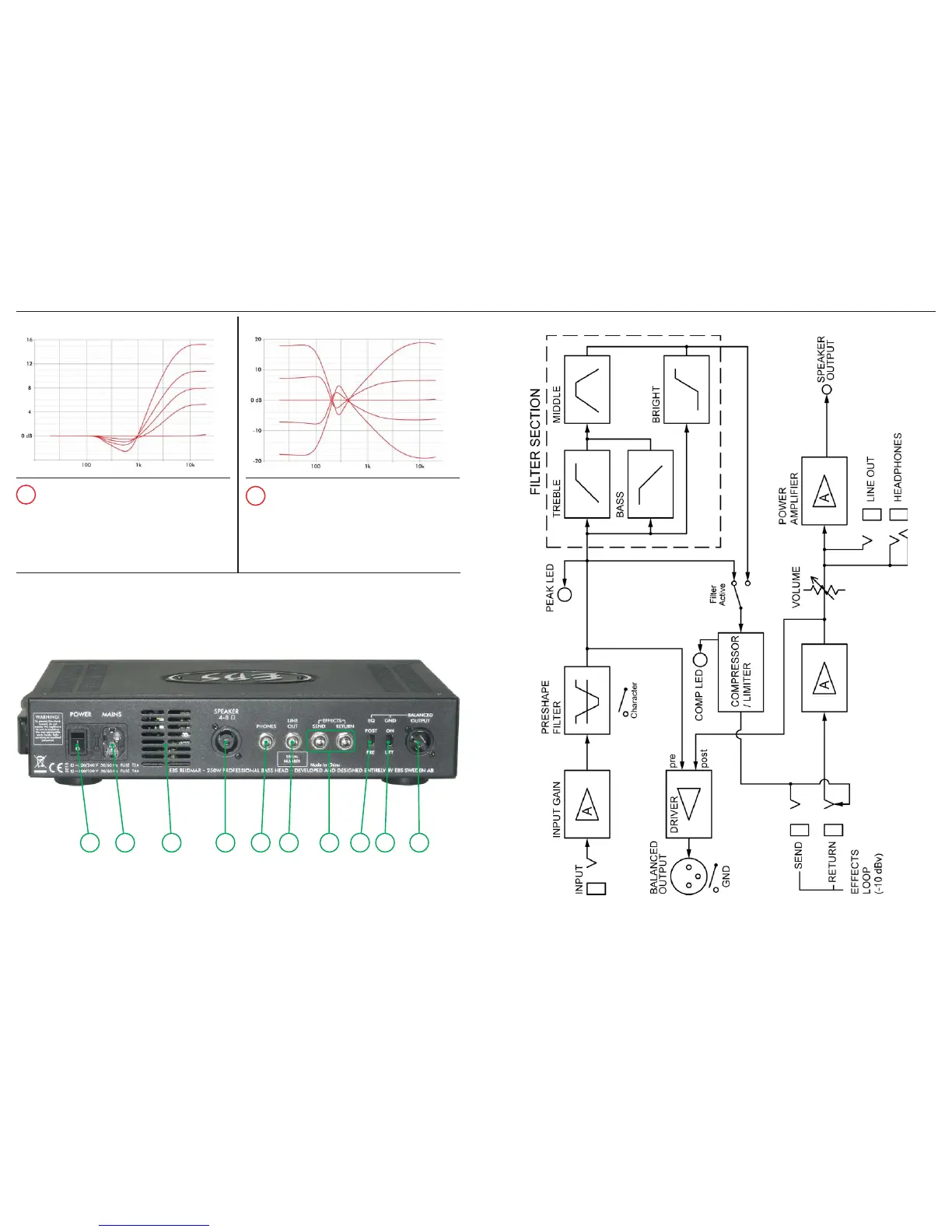

EBS REIDMAR - Block Diagram

6 3
FRONT PANEL CONTROLS
Bright
Bass + Treble
7
VOLUME - The VOLUME knob controls all
volume in the unit, controlling the poweramp
and LINE output. The balanced output (XLR) is
not affectedby the setting of this knob.
8
PILOT LAMP - Indicates power on condition.
410 9 8 125367
BLOCK DIAGRAM
